Wi-Fi Direct® is an IEEE 802.11 wireless network protocol that supports direct wireless connections between compatible devices. Wi-Fi Direct uses peer-to-peer connections to perform common networking tasks. With Wi-Fi Direct users can quickly and securely share, print, display, and sync files between linked devices.
According to ABI Research (Figure 1), 2013 shipments of Wi-Fi Direct devices reached 636 million. By 2018, ABI Research forecasts just under three billion Wi-Fi Direct device shipments, including 90% of tablets, 61% of mobile phones and 57% of smart TVs.
Figure 1
However, despite the increasing volume and variety of Wi-Fi Direct devices available on the market, there is a significant lack of standardization among these products. This causes problems for consumers who wish to use Wi-Fi Direct features, since the peer-to-peer services and user experience are different for each device. In response, the Wi-Fi Alliance has introduced a new peer-to-peer service structure featuring five enhanced Wi-Fi CERTIFIED Wi-Fi Direct® services: Send, Play, Display, Print, and Enable. Figure 2 shows these five services supported by a new Applications Services Platform that supports new automated discovery and control functionality for more convenient Wi-Fi device interoperability. To ensure quality, devices that support Wi-Fi CERTIFIED Wi-Fi Direct® services must pass certification.
Figure 2 – Peer-to-Peer Service Structure
The Wi-Fi CERTIFIED Wi-Fi Direct® services are as follows:
- Send: This service allows two or more devices to share files or other data with minimal user interaction.
- Play: This service uses DLNA protocols to establish a multimedia connection between source and sink devices.
- Display: This service uses Miracast® for device screen sharing.
- Print: This service prints documents with a single command sequence.
- Enable: Application developers can use this service to develop and deliver customized or advanced functionality.
Wi-Fi Direct Services Sessions
Wi-Fi Direct Service Sessions (see Figure 3) are sequenced events that depend upon the successful initiation of each preceding step in the sequence.

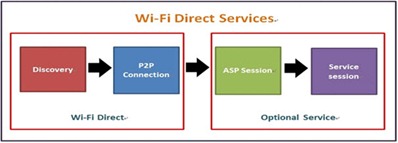

Figure 3 – Wi-Fi Direct Service Session
Discovery
Wi-Fi Direct Services (WFDS) are first advertised using either probe or service discovery request/response frame exchange methods.
P2P Connection
Once a device discovers a WFDS, the P2P connection procedures use provision request/response frames to form a P2P group.
ASP Session
An Application Service Platform (ASP) session forms a logical link between ASPs running on devices through a P2P connection.
Service Session
A service session forms a logical link between WFDS services running on different devices through an ASP session.
Wi-Fi Direct Services assign different device roles:
- Service Advertiser: A device that advertises a service (printer).
- Service Seeker: A device that seeks out services (print transmitter).
Acquisition Procedure of Wi-Fi Direct Services Validation
Wi-Fi Direct Services (WFDS) validation is currently voluntary, yet it is an important quality assurance step for any company promoting Wi-Fi compatible devices. This is especially true for Wi-Fi compatible devices that support multimedia content sharing such as TVs, smart phones, printers, tablets, or wearable devices. Since these are some of the most popular (and profitable) consumer devices on the market, it underscores the importance of improving Wi-Fi device interoperability through expanded WFDS validation.

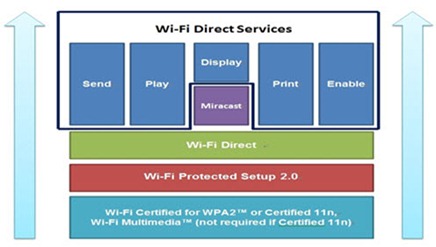

Figure 4 – Wi-Fi Direct Service Validation
Before proceeding with Wi-Fi Direct Services validation, developers need to pass product certification for the following Wi-Fi standards (see Figure 4):
- Wi-Fi Certified for WPA2™ or 802.11n
- Wi-Fi Protected Setup 2.0
- Wi-Fi Direct
- Miracast (required for Wi-Fi Direct Display service)
Wi-Fi Direct Services Test Procedures
- Application Service Platform (ASP) Tests
These device tests verify that WFDS frames conform to the Wi-Fi standard. This requires detailed examination of Discovery, P2P Connection and ASP Session Management. These tests are required for every test device (DUT), no matter what Wi-Fi Direct services the DUT supports.
- Send Service Tests
These tests verify that the Discovery and P2P Connection steps meet the WFDS process specification requirements. This testing basically ensures that file transfers proceed quickly and completely.
- Play Service Tests
These tests analyze multimedia content sharing between source and sink devices. This sharing must meet the Wi-Fi Direct-Play service standards, which use the DLNA transfer protocols.
- Display Service Tests
These tests evaluate screen mirroring with Wi-Fi Direct-Display Service, which use the Miracast transfer protocols.
- Print Service Tests
These tests check device conformance with the Wi-Fi Direct-Print Service.
- Enable Service Tests
These tests verify the settings for Enable API and whether or not the column conforms to the standard. This ensures that the DUT meets the Wi-Fi Direct-Enable Service standard.
As these test procedures usually take at least two weeks to complete, excluding additional time for resolving inconsistent certification results and debugging problems, we suggest that companies reserve at least a month of lead time for WFDS testing. This will add flexibility to the test project schedule and reduce the risk of costly shipping delays while you wait for your product to clear Wi-Fi Direct Services certification testing.
Wi-Fi Direct Service Enables Ubiquitous P2P Networking
