USB4 Passive Cable

This test fixture is officially and exclusively designated by the USB-IF

Product ID: USB4-Passive-Cable

Product Summary

USB-IF Certified Fixture for USB4 Passive Cable

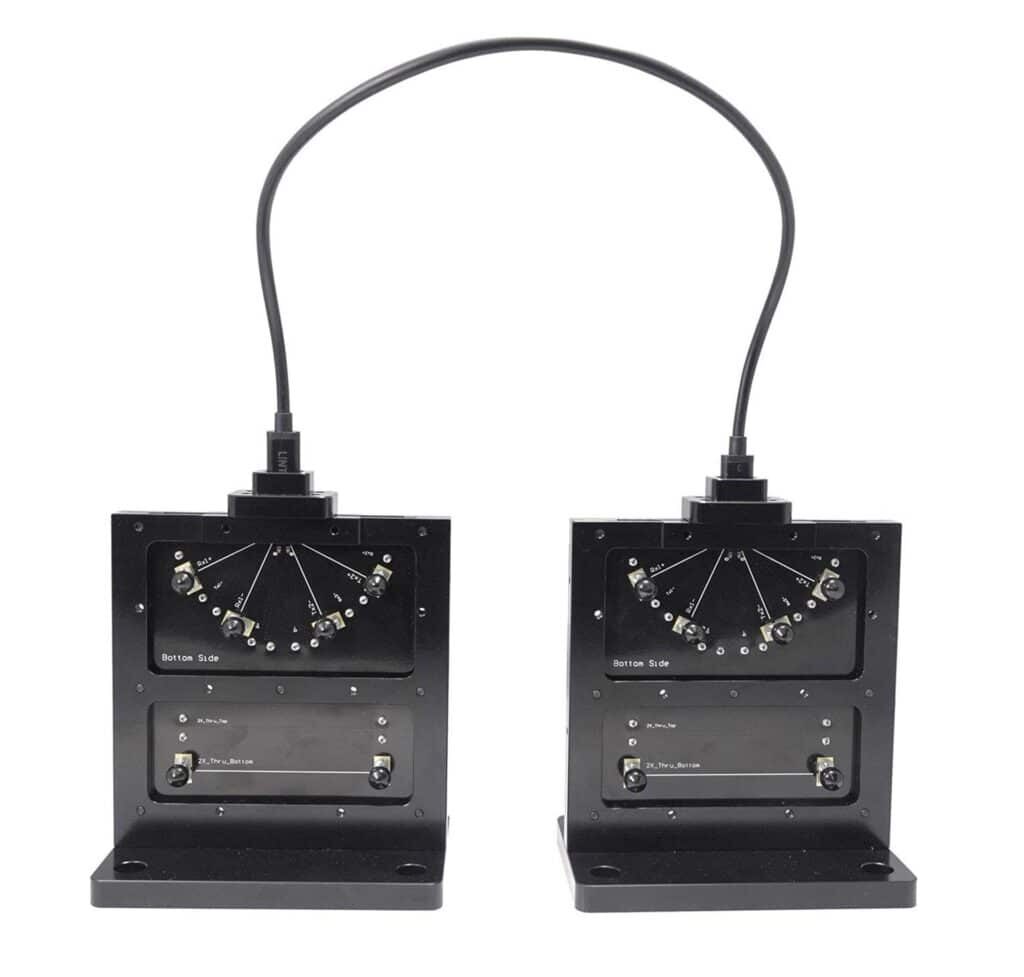

Application

USB-IF Certified Fixture for USB4 Passive Cable

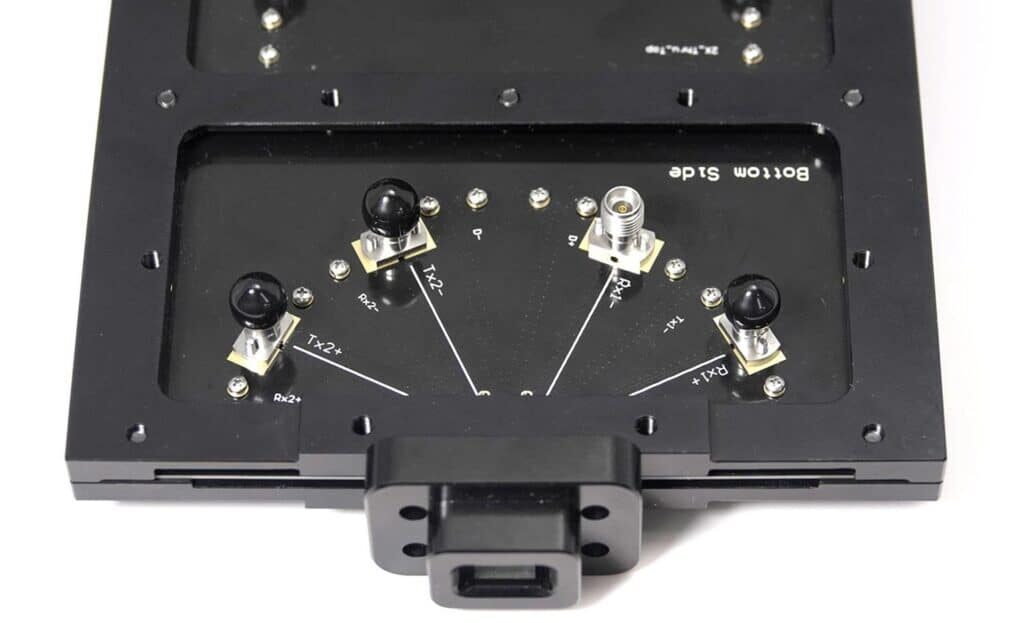

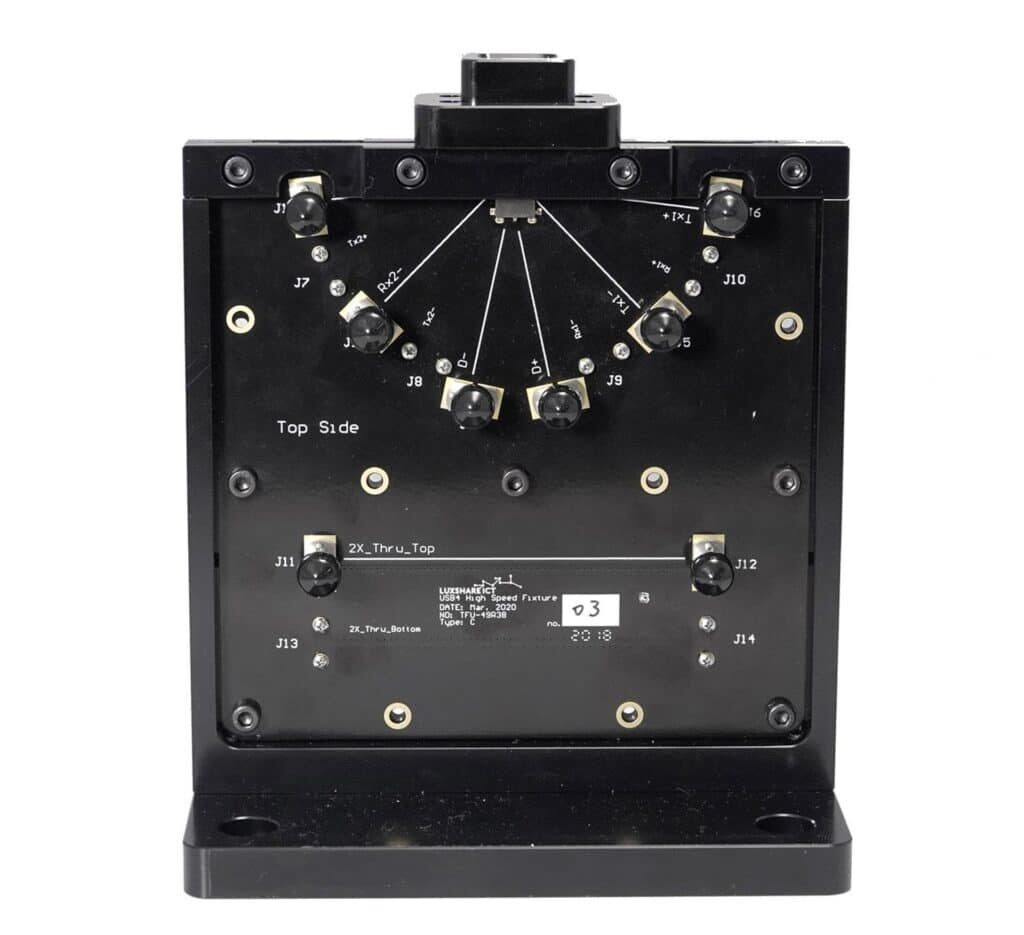

Key Feature

  • ( 2.92mm K Band) Vertical Type SMA connectors are easy to install, boosting test efficiency.

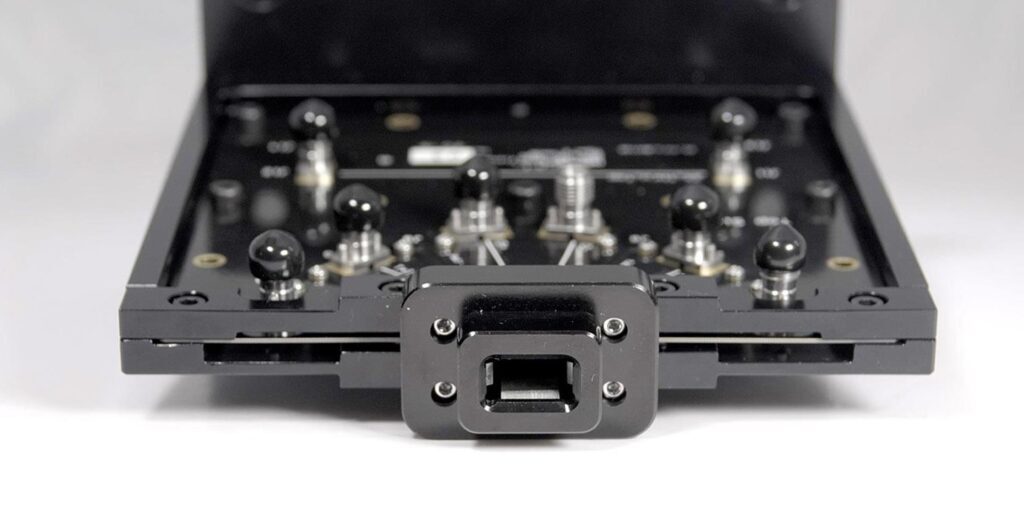

  • (A) Steady and firm, higher accuracy for the plugging of DUTs
    (B) Reinforcing the durability of Type C Receptacle connector.
    (C) Adopts 2.92 mm K Band (40Ghz) SMA Connector, authentically simulates the features of high-frequency cables.

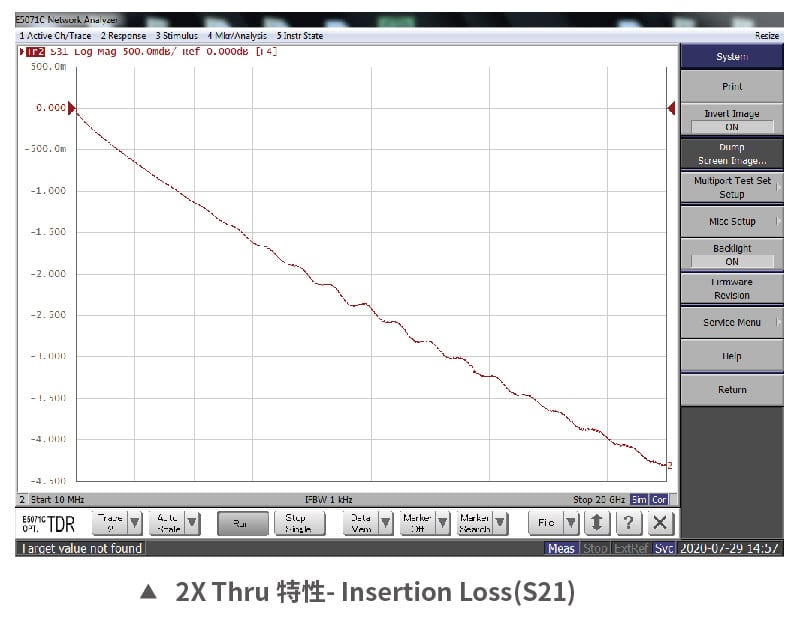

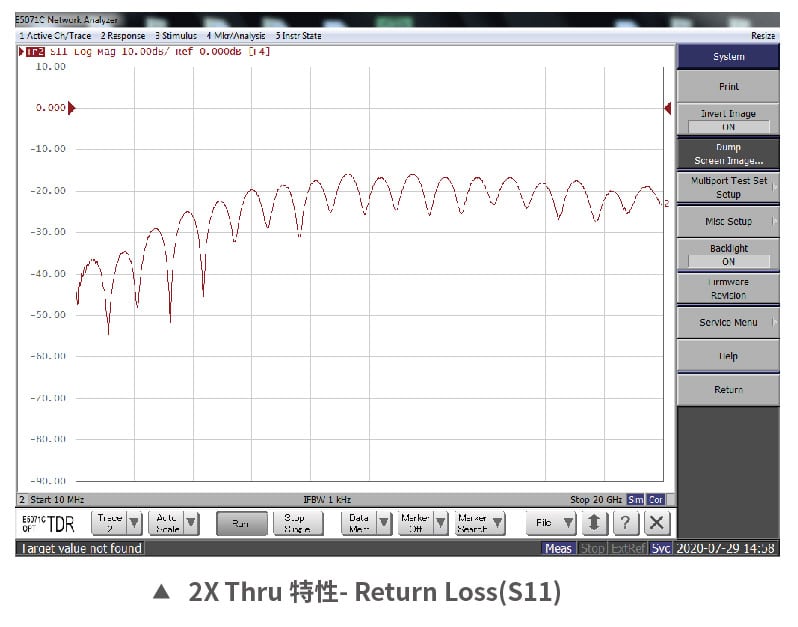

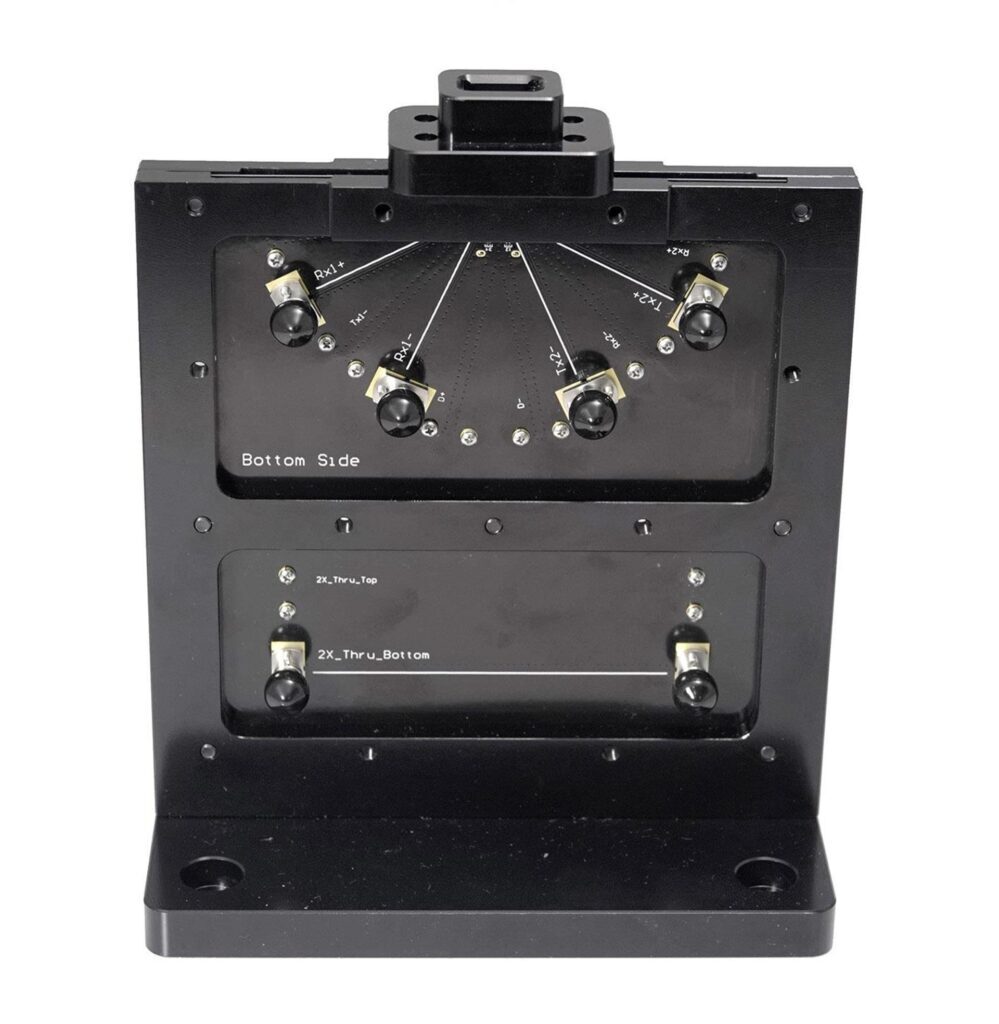

    (D) Adoption of 2X Thru calibration traces on both sides of the fixtures to ensure accurate measurement

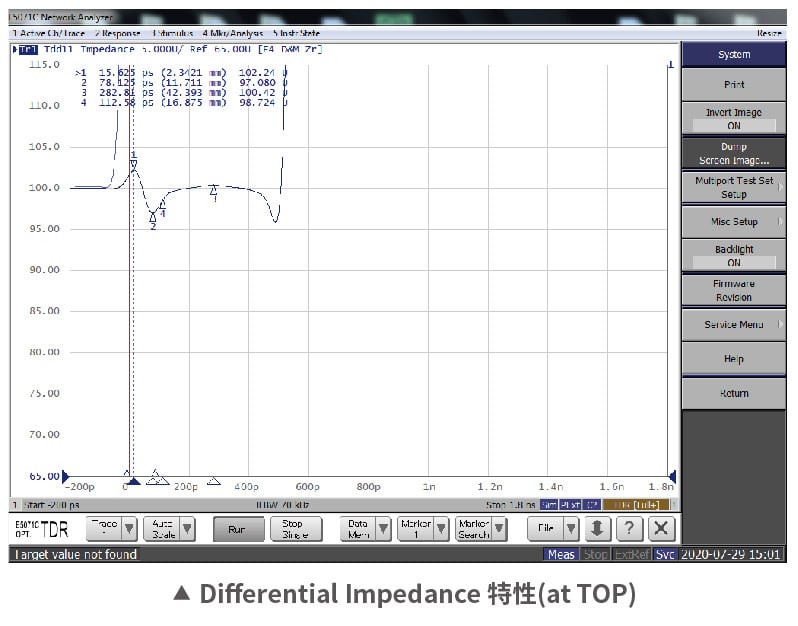

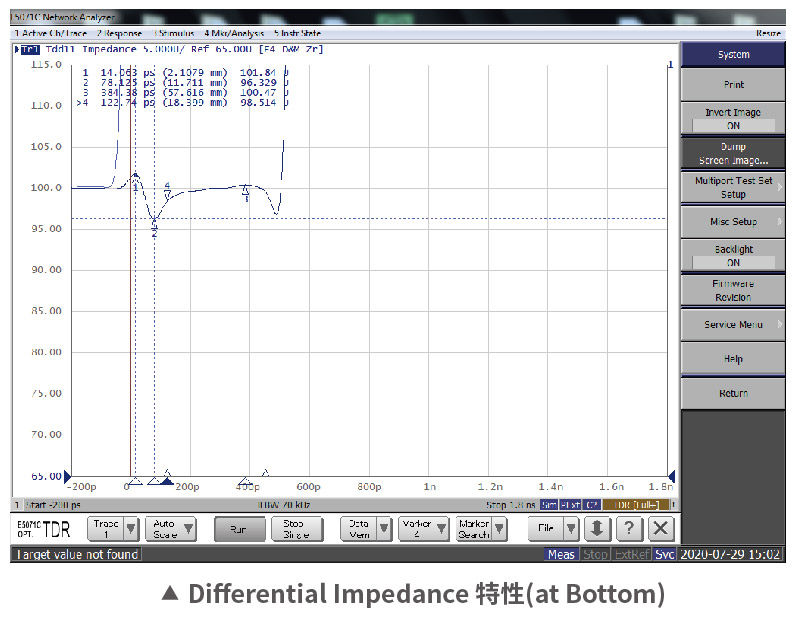

Specification

Dimension: 123.5mm x 75mm x 15mm
RF Connector: 2.92mm K Band (40GHz)
