PCIe CEM Cable & Connector

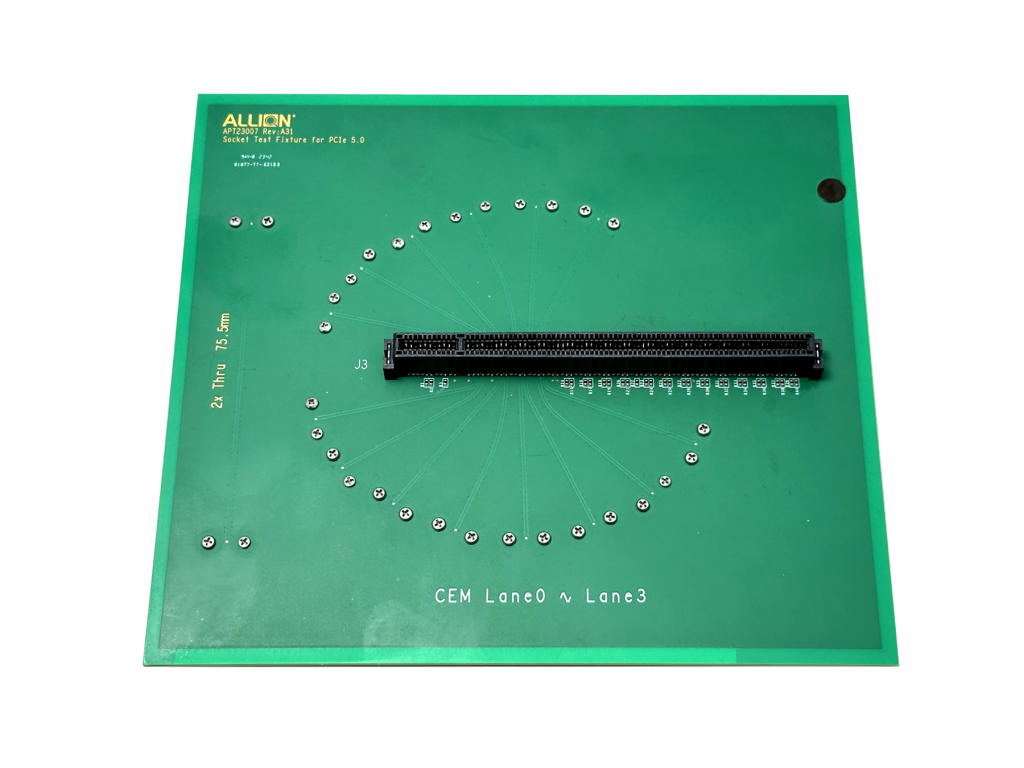

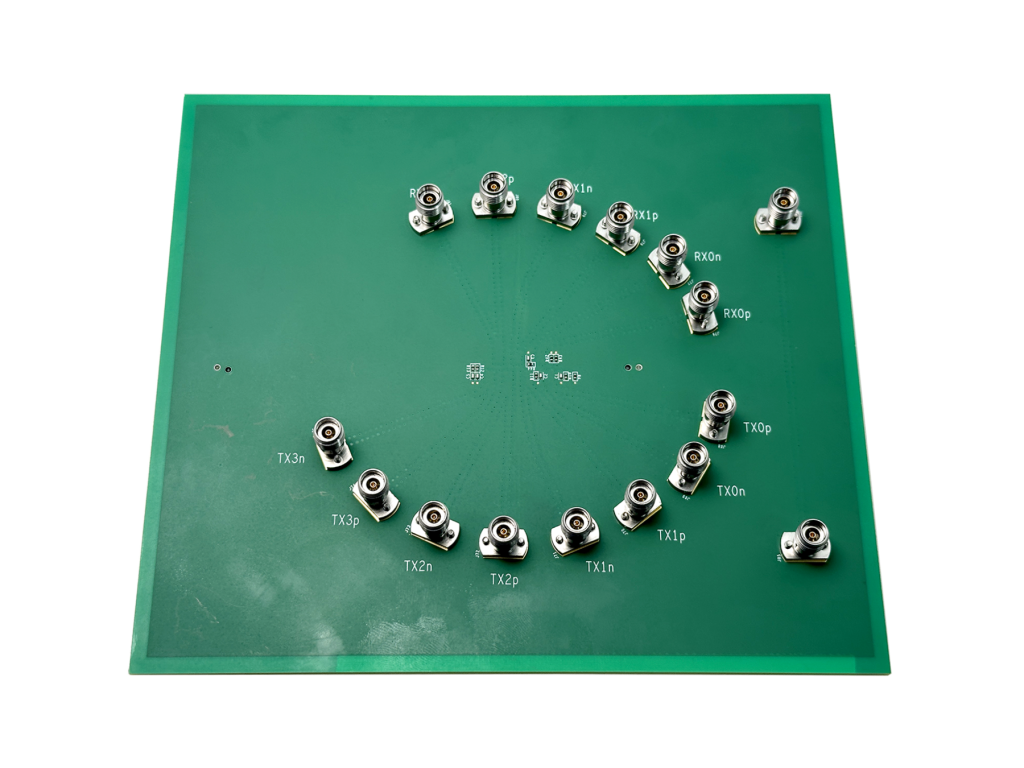

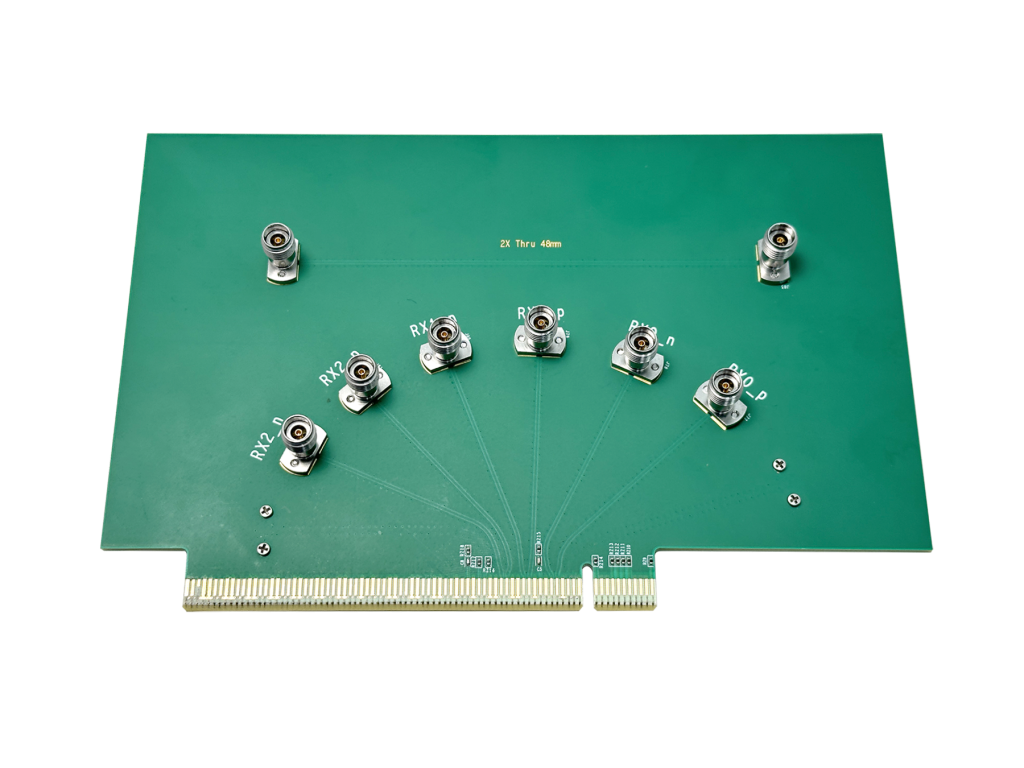

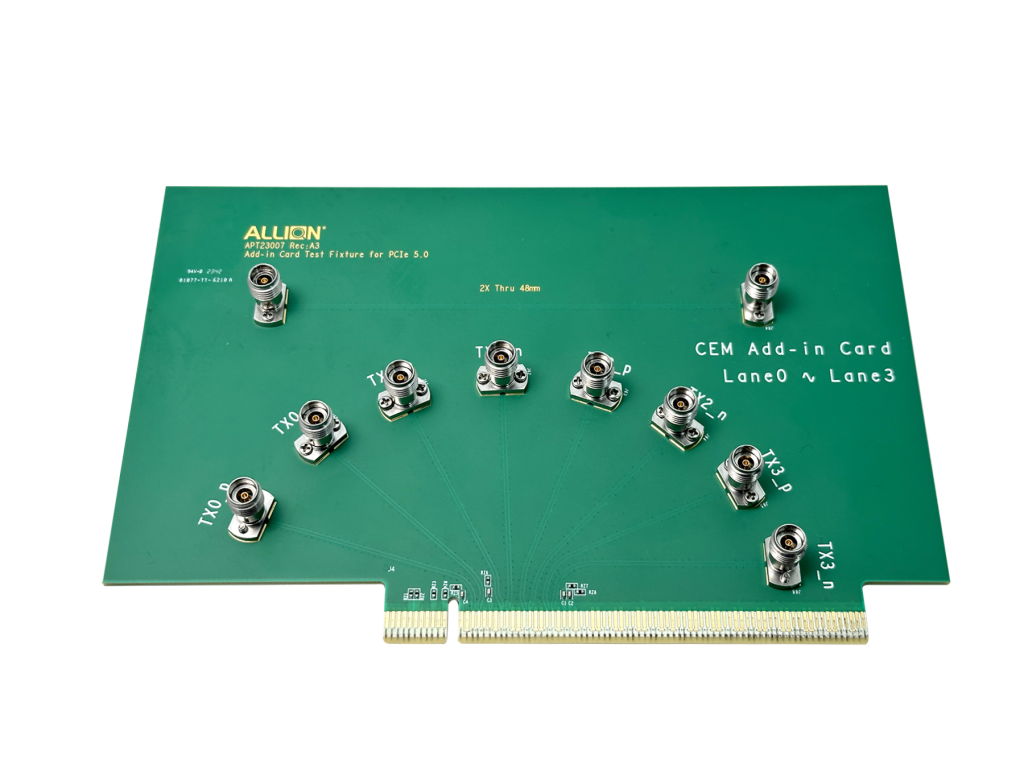

Product ID: APT23007 Add in card/ APT23007 Socket

Product Summary

To measure PCI Express 5.0 connector compliances with CEM5 Specification.

Application

PCI Express 5.0 Connector Compliance test

Key Feature

  1. 2.92mm Connectors update to 40GHz Supported
  2. 2X Thru Calibration onboard.

Specification

  1. Trace < 48mm
  2. Single End MicroStrip
  3. 2X Thru for De-Embedded
  4. Standard PCIe 5.0 x16 Connector
  5. 2.92mm RF Connector (BW: 0~40GHz)
