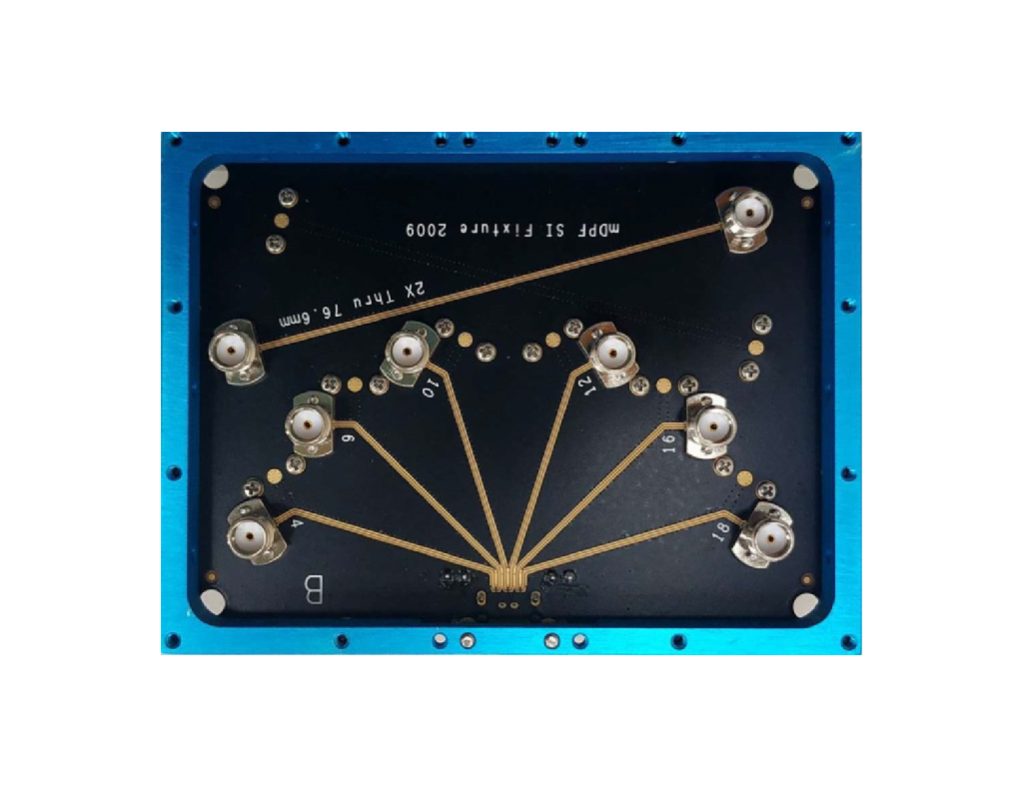

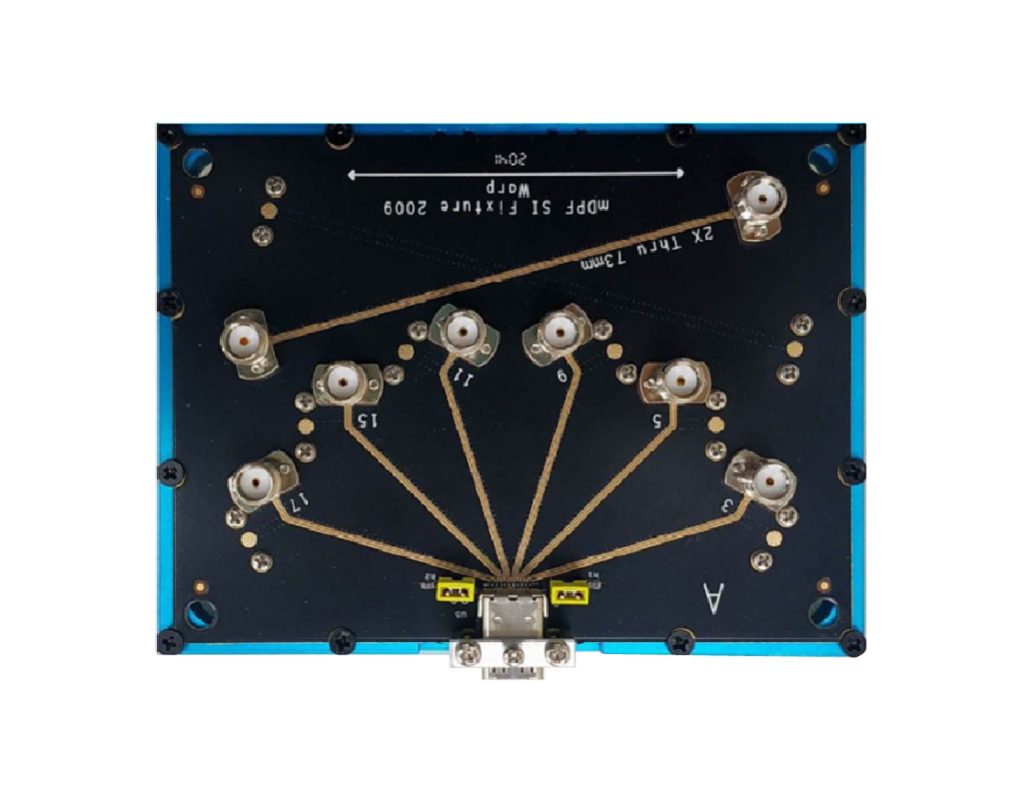

DP 2.1 mDP

Product ID: DP 2.1 (mDP)

Product Summary

The test Fixture supports DP2.1 cable(UHBR 10/UHBR 20) electrical compliance test.

Application

DP2.1 Cable(mDP) Electrical Compliance testing

Key Feature

  1. 2.92mm Connectors update to 20GHz Supported
  2. 2X Thru Calibration onboard.

Specification

  1. mDP Receptacle Connector
  2. Eight SMA Connector for Lane0~Lane3
  3. Two SMA Connector for Aux
  4. Four SMA Connector for 2X THRU
