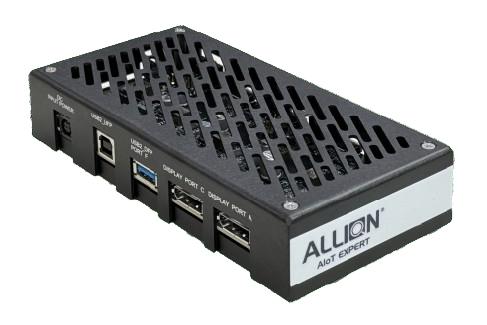

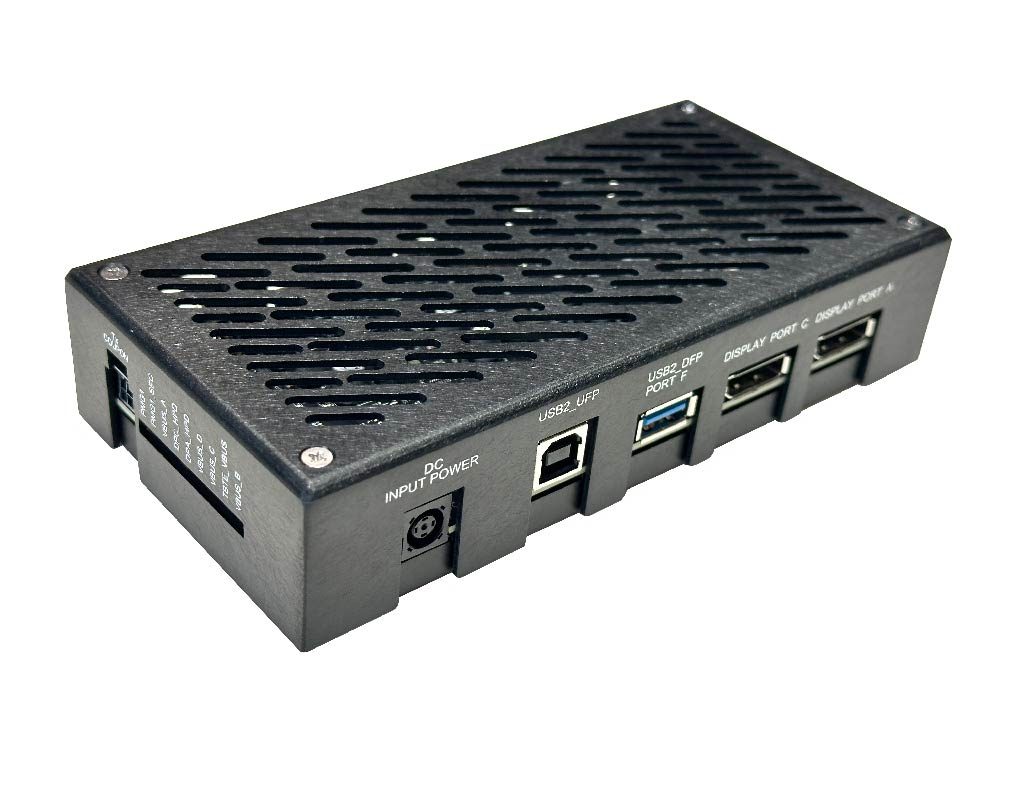

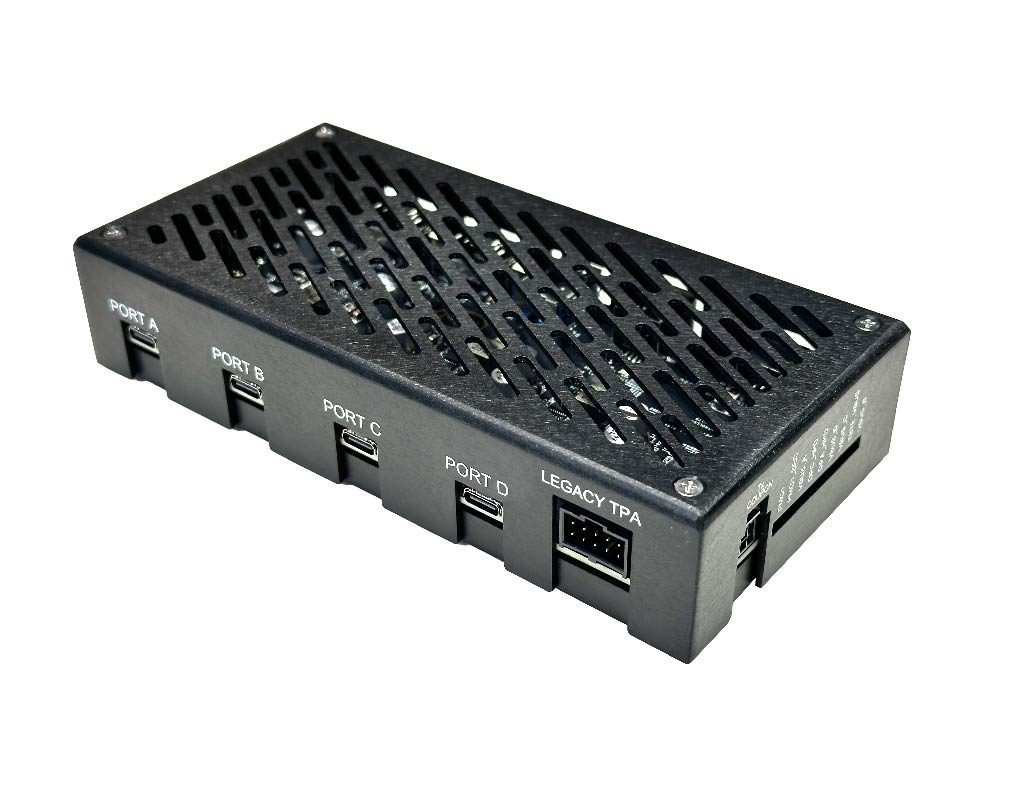

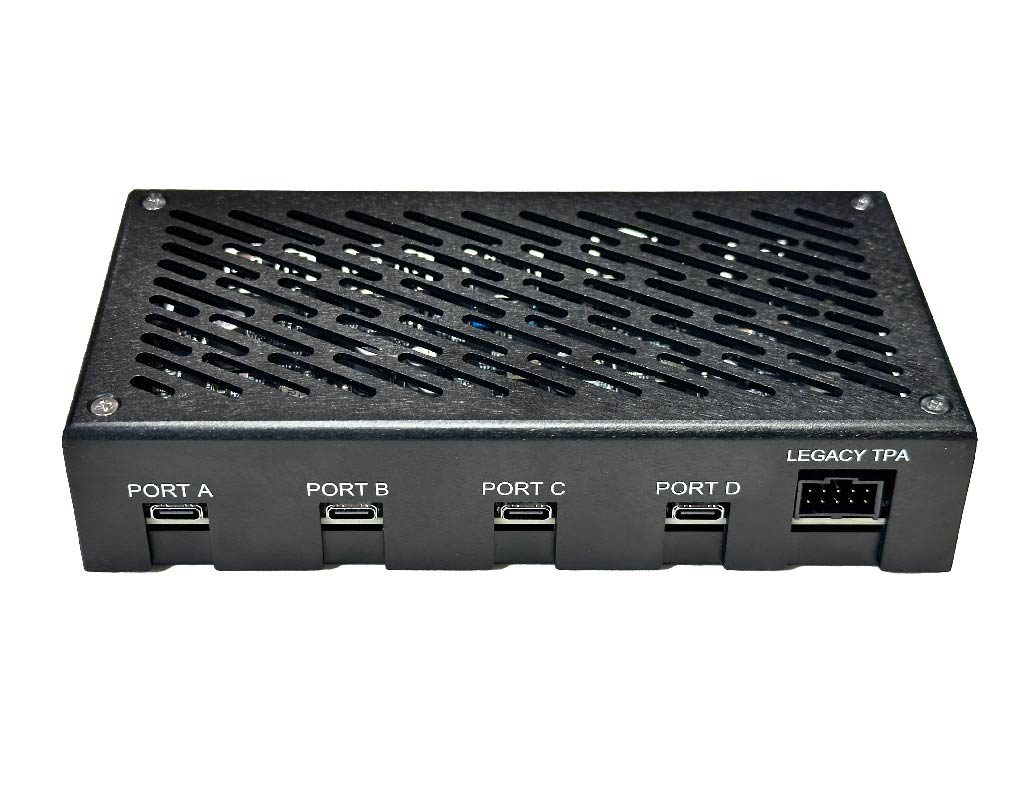

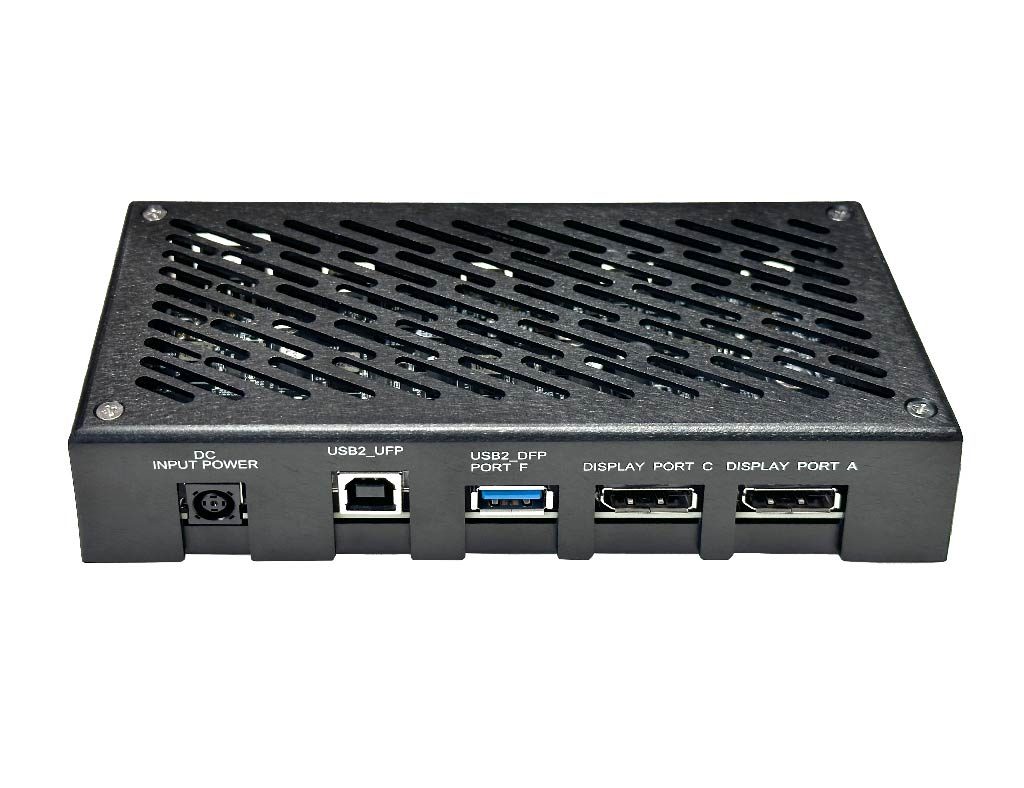

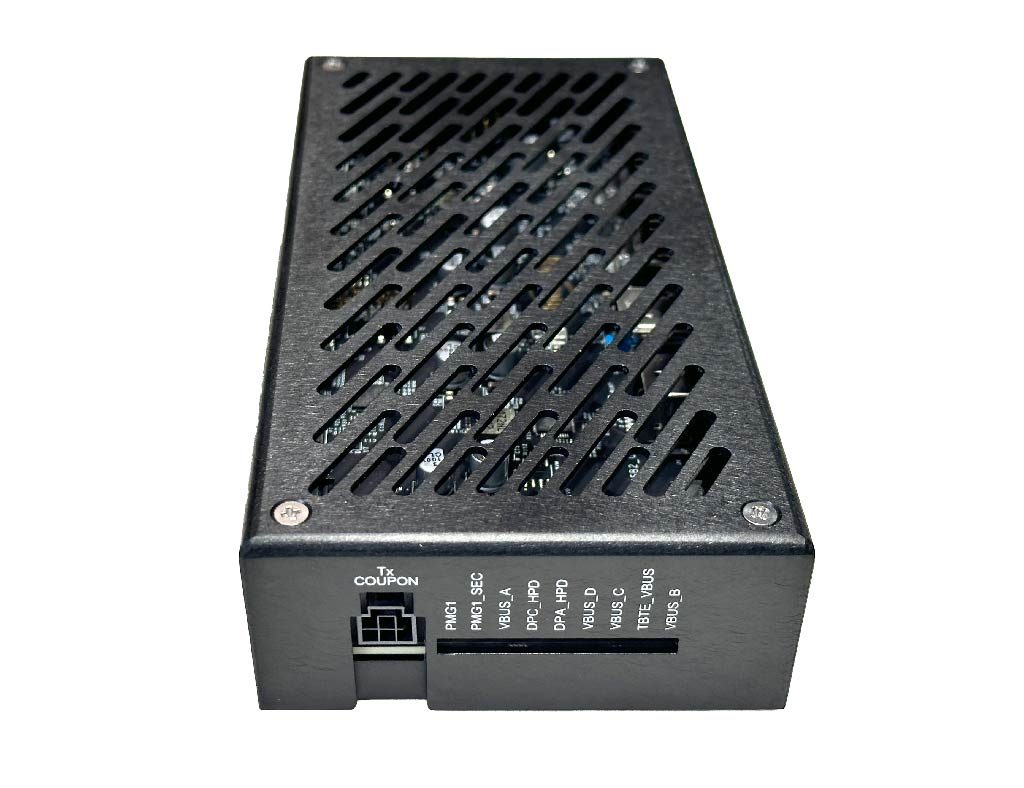

Allion USB4® V2 Microcontroller
Product ID: CU25014
Product Summary
Allion USB4® V2 Microcontroller is used for USB4® V2 and V1 electrical tests and supports various types of devices under test, including Thunderbolt™ 4, Thunderbolt™ 5, and USB4® devices.
Application
- Thunderbolt™ 5 Hosts and Devices
- Thunderbolt™ 4 Hosts and Devices
- Thunderbolt™ 5 LRD Active Cables
- USB4® V2 & V1 Hosts, Hubs and Peripheral Devices
- USB4® LRD Active Cables
Key Feature
- Supports various types of devices including host, device, monitor, and active cable
- Supports USB-IF Electrical Test Tool (ETT)
- Aligns with USB4® V2 Electrical Test Specification
- Compatible with USB4® V1 Electrical Test Specification
- Customizable with USB4® electrical test automation solution (ASUE)
Specification
- Dimension: 160mm x 80mm x 32mm
- AC Adapter: 20V/6.75A 135W
