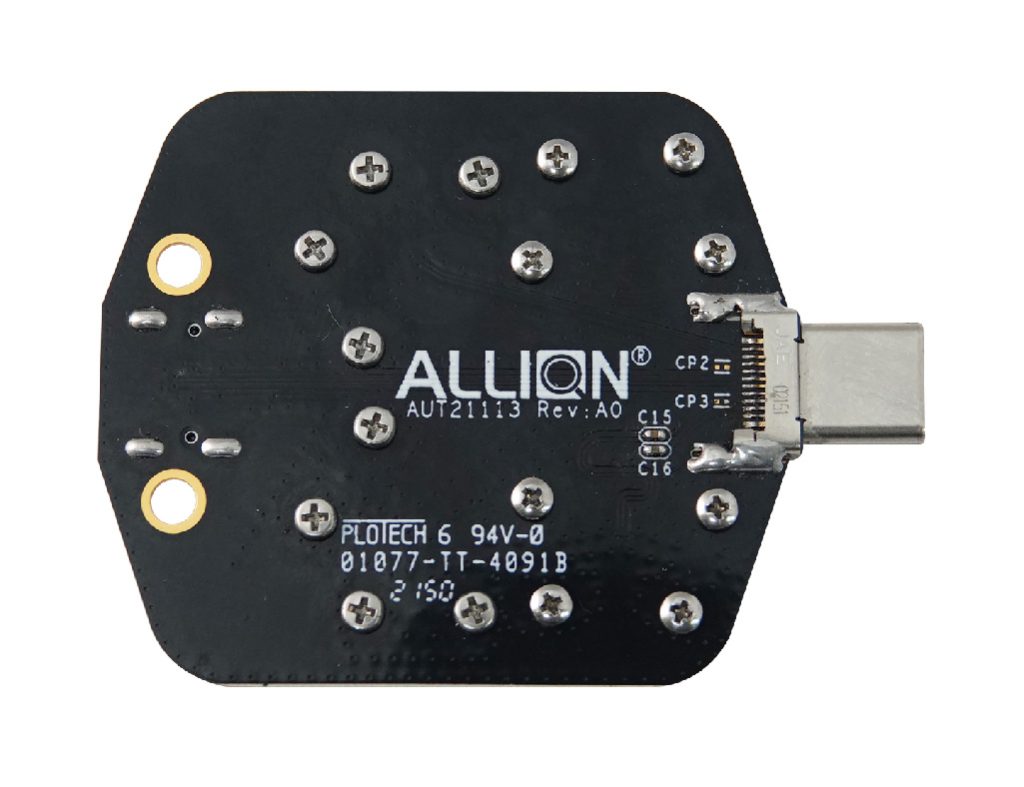

USB-C® Plug TX/RX

Product ID: AUT21113

Product Summary

AUT21113 is an USB4® electrical test fixture for USB4® devices with USB-C® receptacle and supports tests with the USB4® electrical compliance test specfication.

※ Due to a version update, this fixture is scheduled for sale starting from Q1 2025.

Application

USB4® electrical compliance test specfication

Key Feature

  1. Use for USB4® Tx test Rx calibratoin and Rx test
  2. 2.92mm connectors up to 20GHz supported and easy to be replaced if broken

Specification

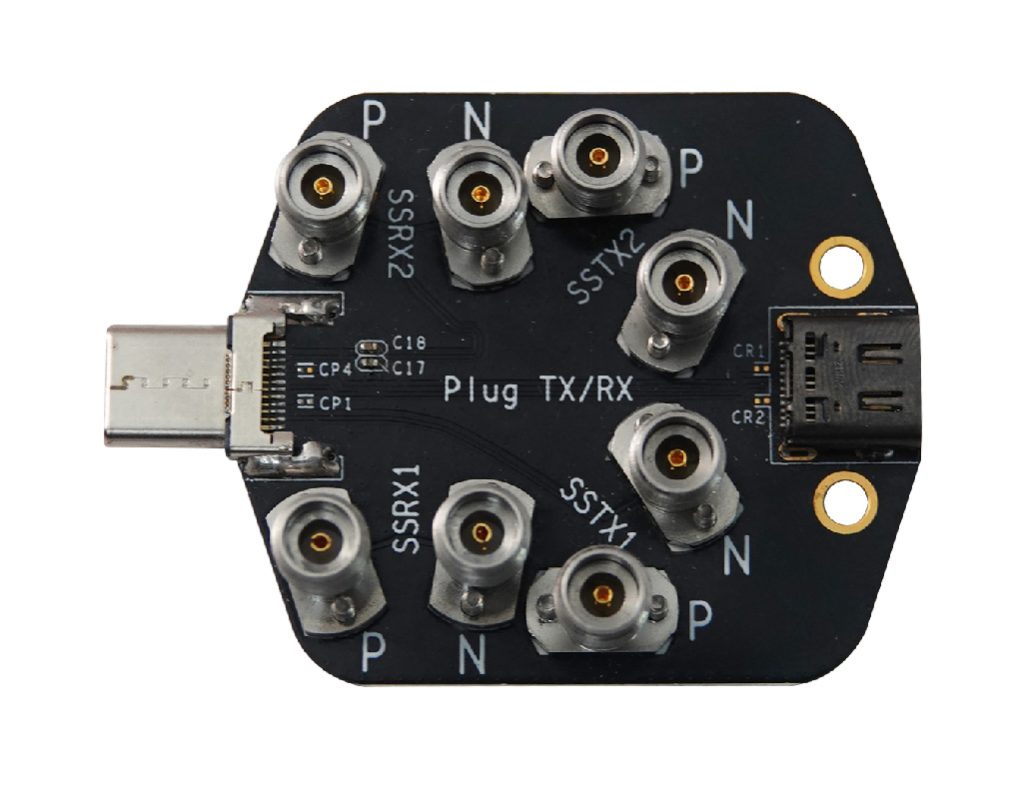

  1. One USB-C® receptacle to connect the micro controller
  2. One USB-C® plug
  3. Four 2.92mm connectors for USB-C® plug Tx
  4. Four 2.92mm connectors for USB-C® plug Rx
