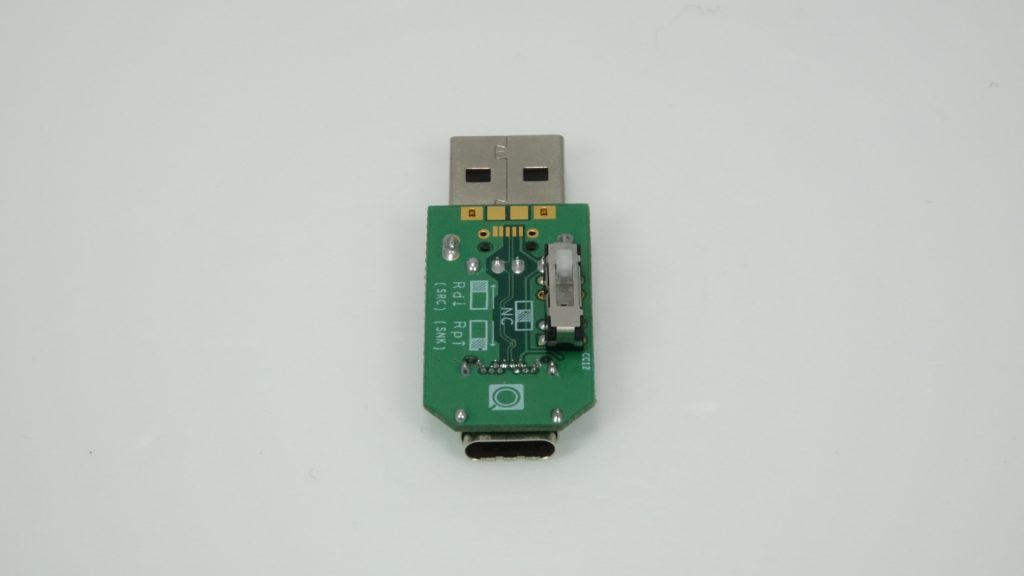

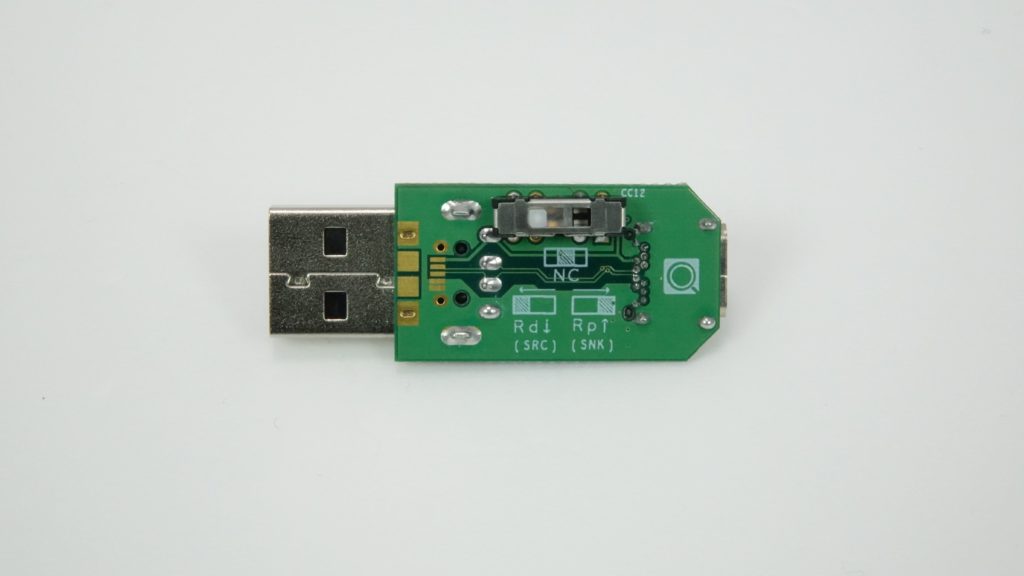

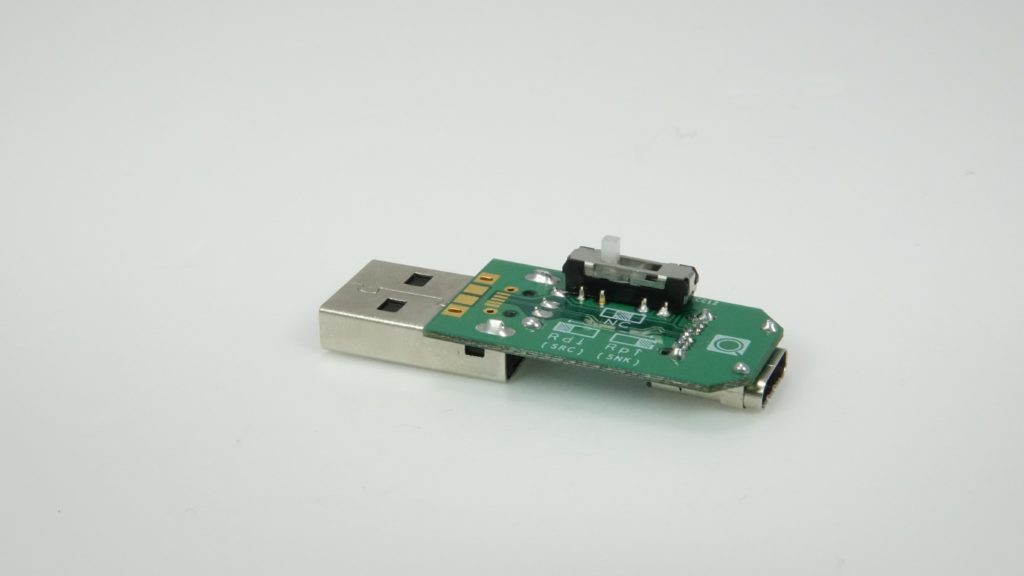

USB-C® – USB 2.0 C Receptacle to A Plug

Product ID: AUT17032-CRAP

Product Summary

This fixture is designed for USB-C 2.0 Plug and USB-A products.

Application

Applicaple in USB-IF Compliance tests, including PHY, Protocol, Power, IOP (Gold Tree) test

Key Feature

1. Convert high-speed signal from USB-C Receptacle to Micro USB A Plug 2.0 Connector
2. Offers ternary switch for CC1/CC2 (Rd Pull-high, Rd Pull Down, Floating)

Specification

  • USB-C Full Spec Receptacle connector
  • USB Type A Plug Connector
  • DP3T Slide Switch
  • Dimension : 29.72 x 16.26mm (Excluding the connector part)

Note

The Fixture has been approved by USB-IF.
