PCIe5.0 CEM Receptacle Test Fixture for Internal Cable

Product ID: APT23018

Product Summary

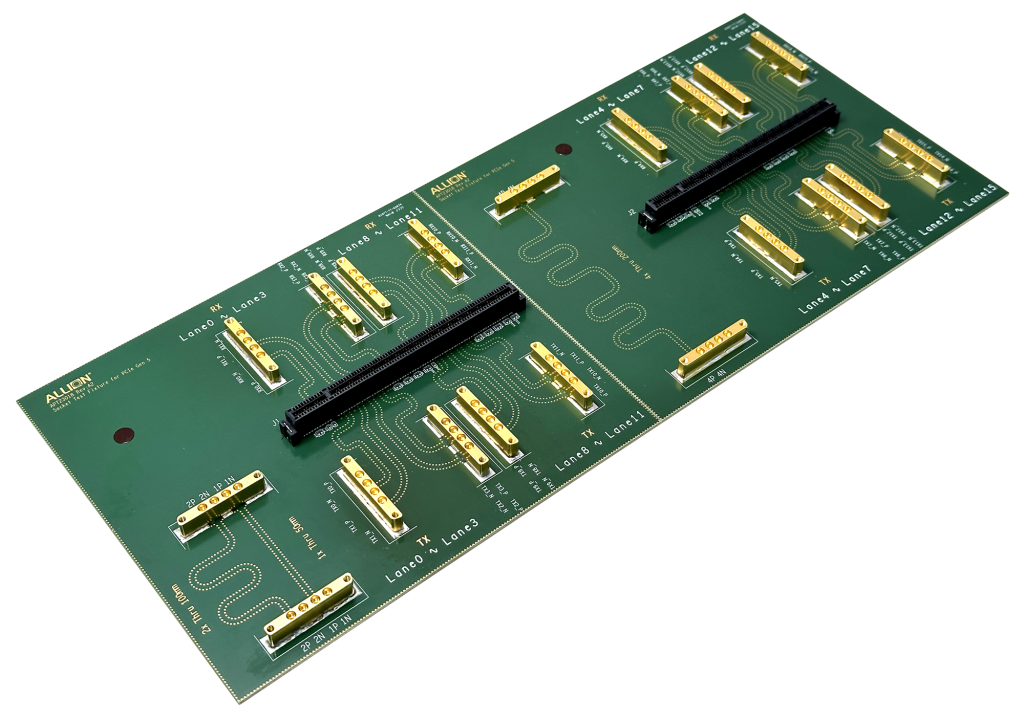

PCIe5.0 CEM Receptacle Test Fixture with SMPM Connectors and Cable Module

  • PCIe5.0 CEM Receptacle Test Fixture for Internal Cable Set contains the below items:
  1. PCIe5.0 CEM Receptacle Test Fixture (Model Name: APT23018)
  2. Cable Module*16 (Optional)
  • The lead time will be 2-4 weeks from order to shipment.

Application

PCIe5.0 CEM Cable & Connector Signal Integrity measurement for Impedance, IL, RL, DDNEXT, DDFEXT, Inter-pair Skew.

Key Features

  • PCIe5.0 X16 Full Lanes Support for Cable Validation
  • Durable SMPM Connectors and flexible Cable Assembly
  • SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  • 1X/2X/4X Thru Calibration is designed onboard

Specification

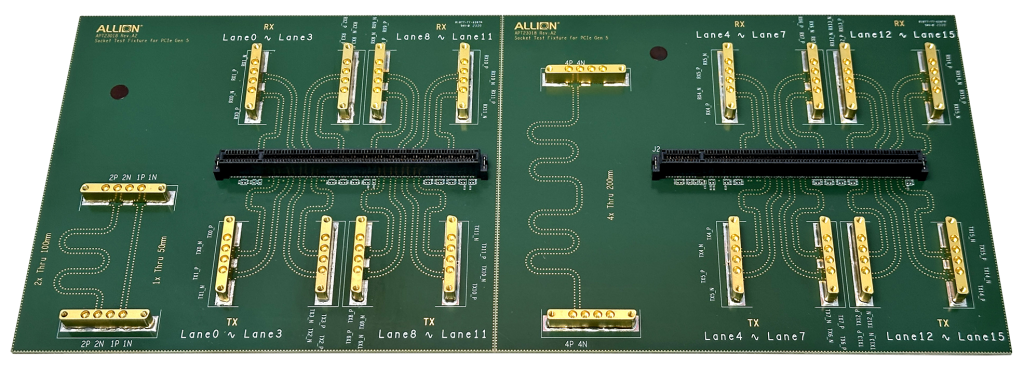

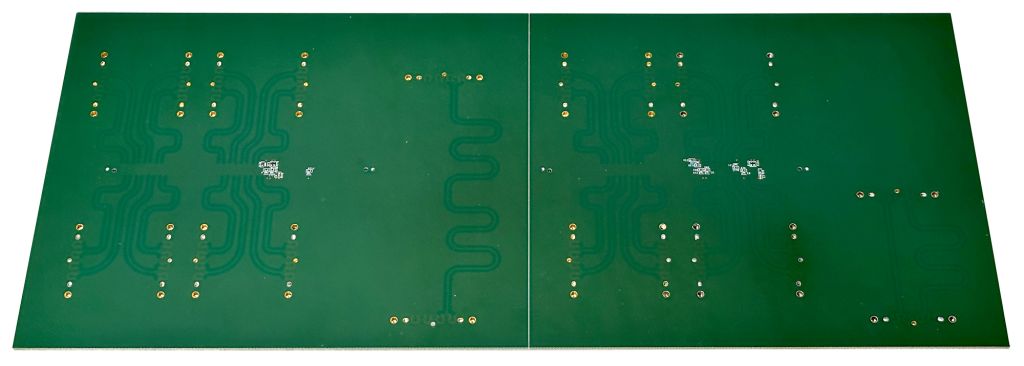

  • On the Left side of PCB:
  1. Eight SMPM Connectors for Lane 0~3 & Lane 8~11
  2. Two SMPM Connectors for 1X/2X Thru Calibration
  • On the Right side of PCB
  1. Eight SMPM Connectors for Lane 4 ~ 7 & Lane 12~15
  2. Two SMPM Connectors for 4X Thru Calibration
  • Total Sixteen SMPM Connectors for Full Lanes Support
  • PCIe5.0 X16 Receptacle Connector for Cable Connection
  • Dimension: 320mm x 135mm (L x W)

For more information or other requests, please feel free to contact us at: service@allion.com
