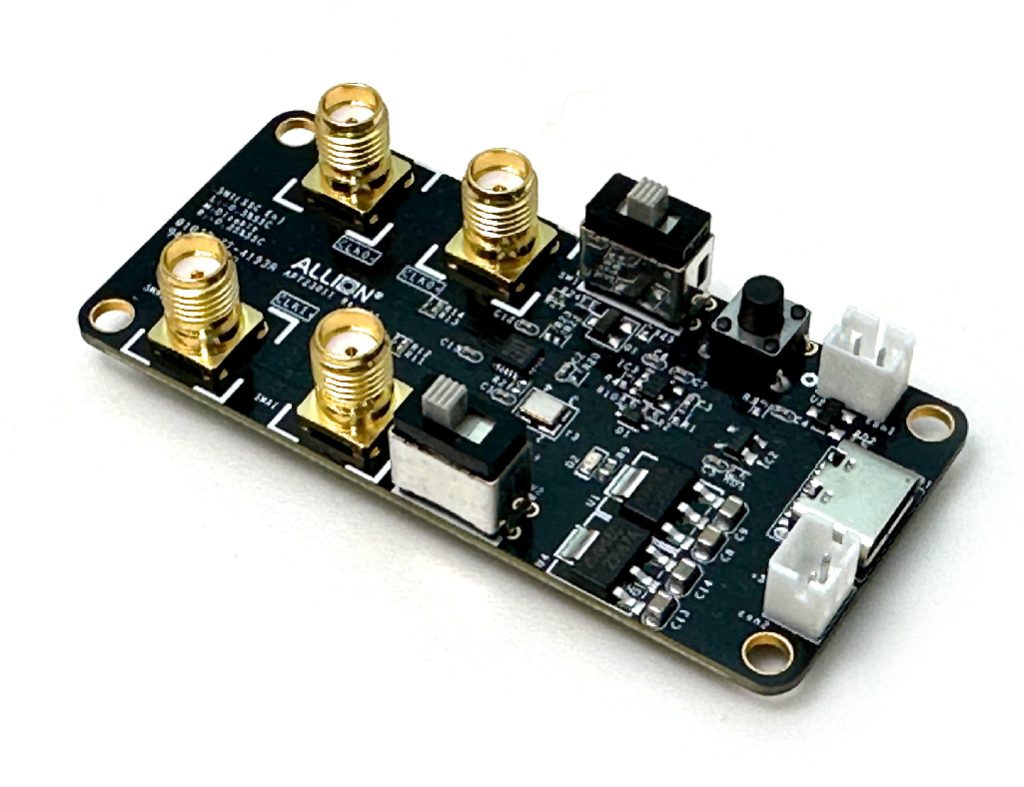

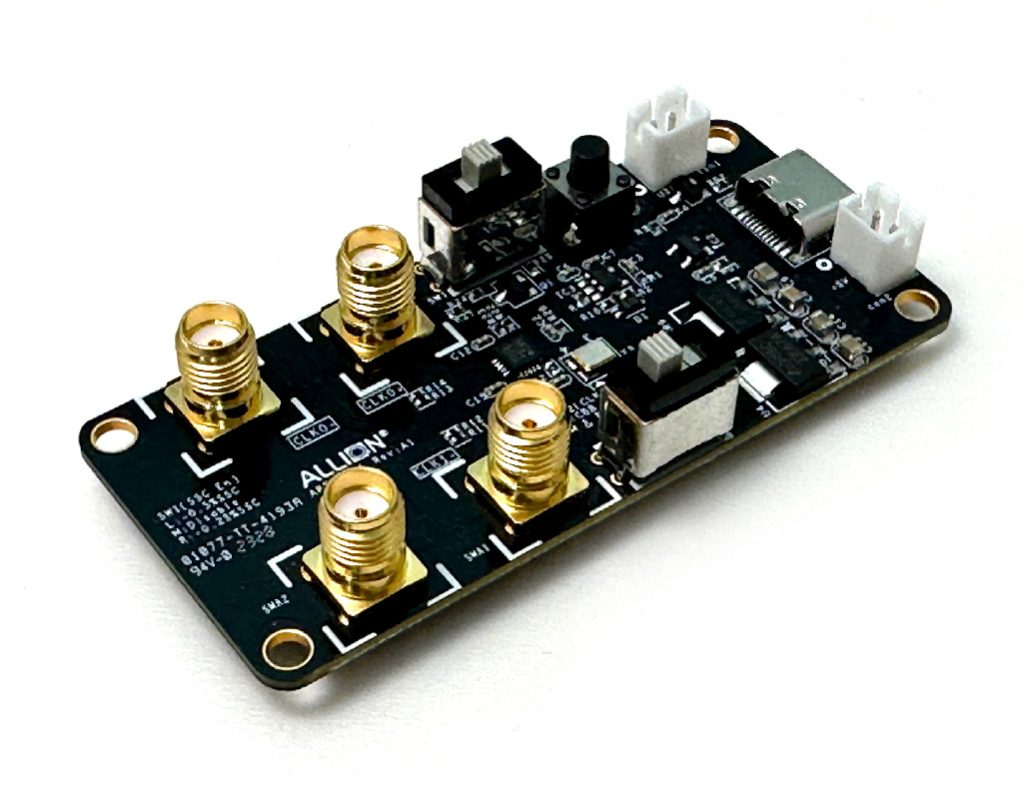

PCIe CBB CMTS board

Product ID: APT23011

Product Summary

PCIe CMTS board test fixture

Application

PCIe Compliance Test

Key Feature

  1. Standalone test fixture
  2. PCI-SIG CMTS toggle function compatibility

Specification

  1. One USB type-C connector for input 5V power
  2. Two SMA connector for CMTS trigger signal connection
  3. Two SMA connectors for output 100Mhz PCIE reference clock connection
  4. One push button for compliance mode trigger
  5. Two 2.0mm Box Header
  6. One switch slide for first port enable/disable PCIE SSC(Spread Spectrum Clocking) function
  7. One switch slide for second port enable/disable output 100Mhz PCIE reference clock
  8. Dimension : 67.3 mm x 31.4 mm
