M.2 2230 CLB5.0 Test Fixture

Product Summary

M.2 2230 CLB5.0 Test Fixture Sets

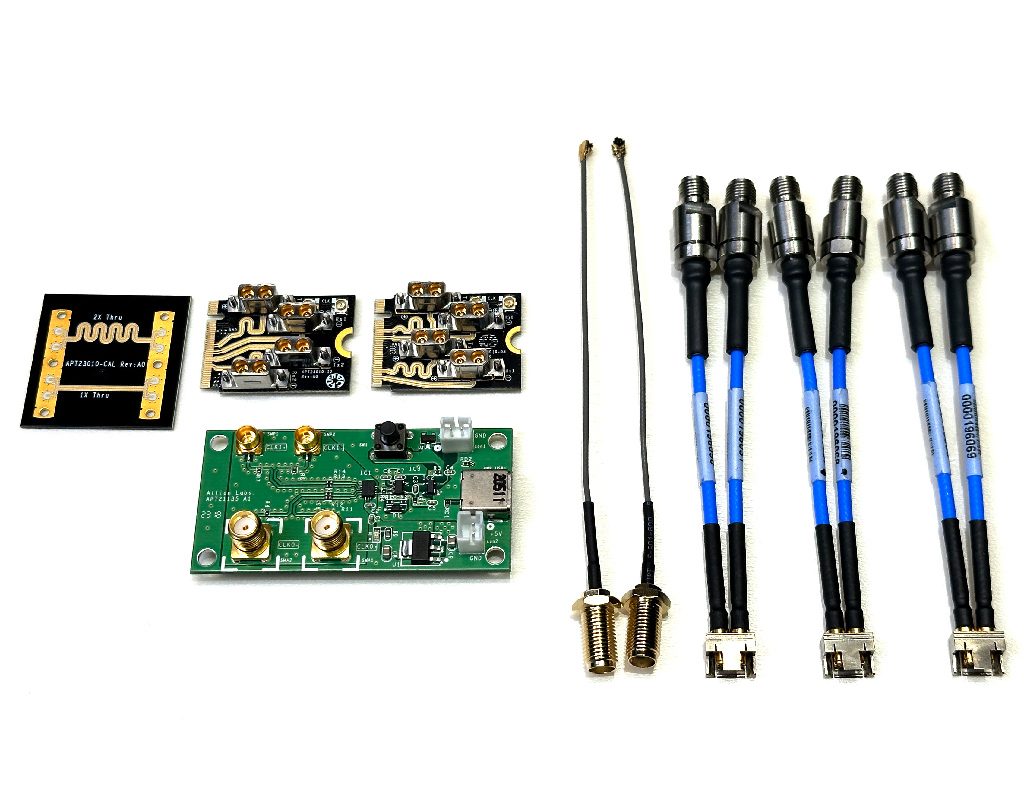

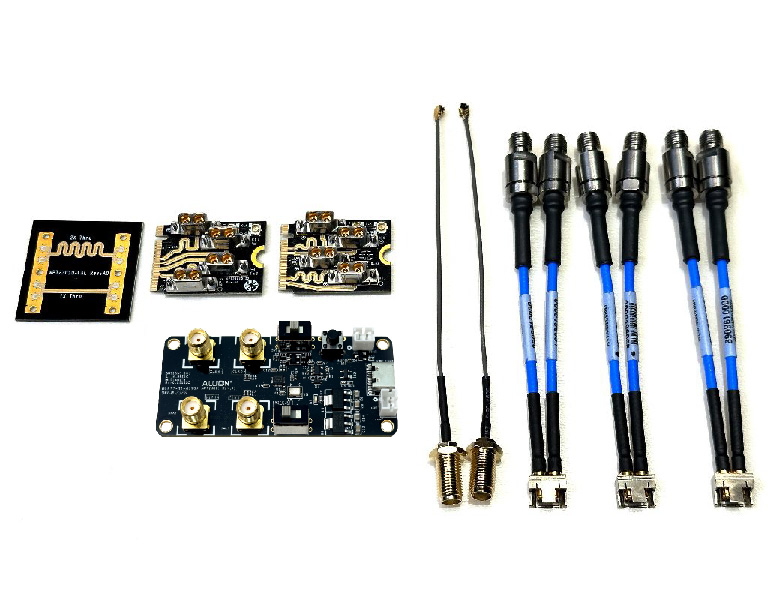

The PCIe M.2 2230 CLB5.0 Test Fixture Set contains the below items:

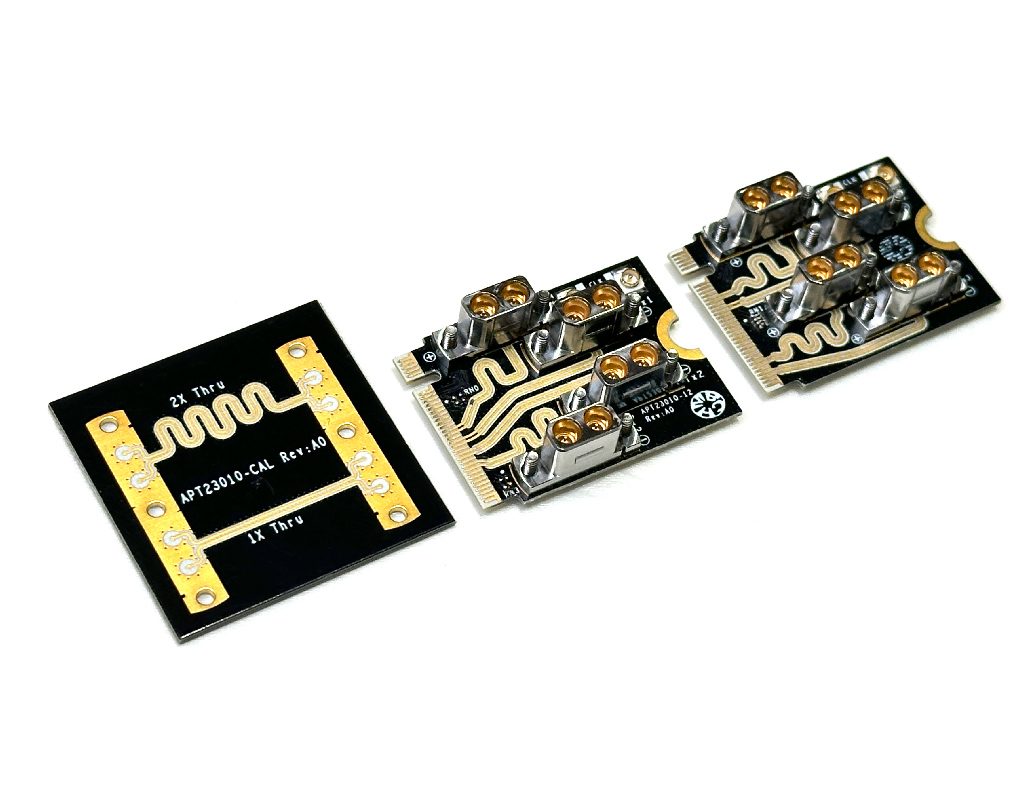

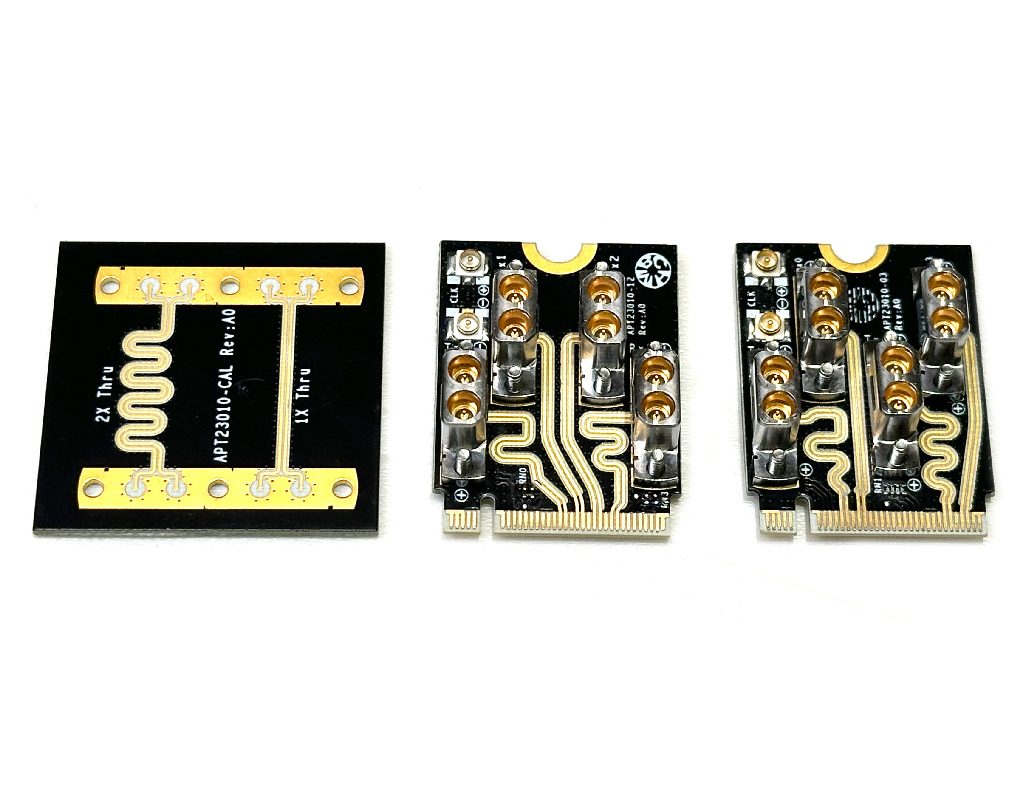

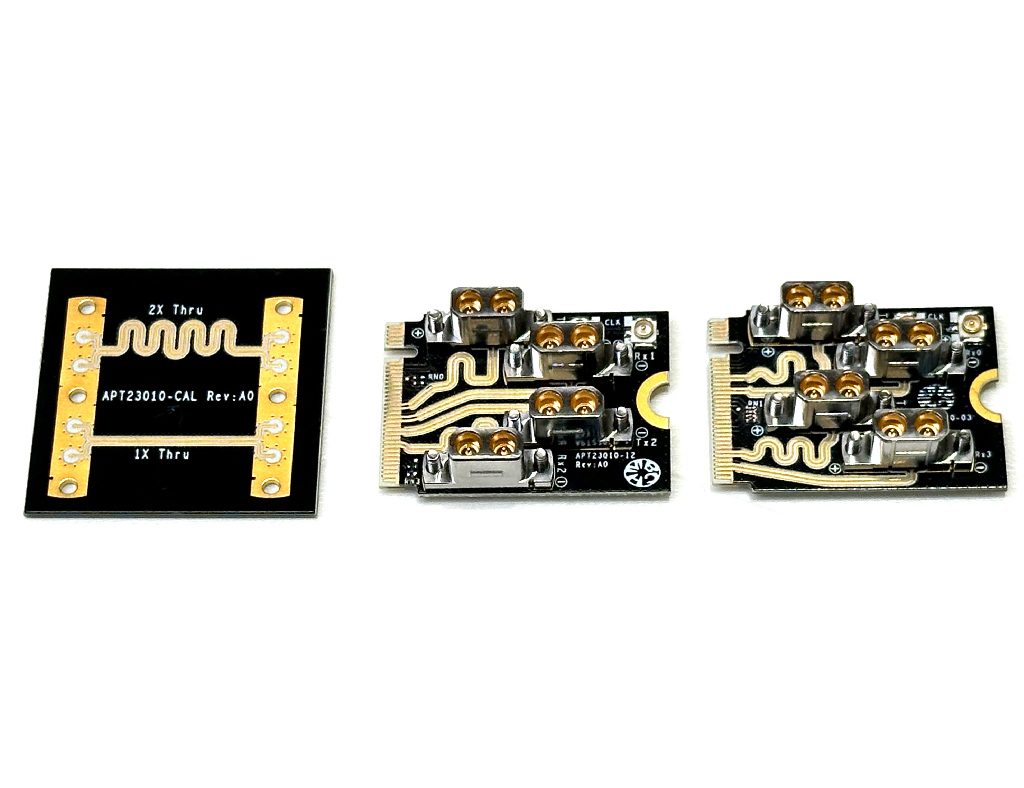

• PCIe M.2 2230 Test Fixtures (Model Name: APT23010)

1. APT23010-03 for Lane0/Lane3
2. APT23010-12 for Lane1/Lane2

• Allion CMTS Board (Model Name: APT21135)
• SMPM 1×2 Cable Module*3 (2 for Tx / 1 for Rx)
• IPEX MHF1 to SMA cable*2 (for Reference Clock)
• Calibration Board 2x & 1x Thru (Connectors not included)

The lead time will be 4-6 weeks from order to shipment.

Application

• PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen5)
• PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
• Applicable for Server, IPC, Notebook, Desktop or system product which has designed M.2 2230 interface

Key Features

• PCIe Compliance Electrical Test for Tx/Rx
• Durable SMPM Connectors and flexible Cable Assembly
• SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
• 2x & 1x Thru Calibration

Specification

AP23010-03 & APT23010-12

• PCIe M.2 M-Key Golden Finger
• 4 SMPM(Two Ports) Connector for Tx/Rx (Lane 0/3 for APT23010-03 & Lane 1/2 for APT23010-12)
• Two IPEX Connector for Reference Clock
• Dimension : 69.85mm x 84.81mm

AP23010-CAL

• One SMPM(Quad Ports) Connector for 2X Thru Calibration
• Dimension : 22.00mm x 30.00 mm
