U.2/U.3 PCIe CBB5.0 Test Fixture

Product ID: APT22076 / APT23011

Product Summary

U.2/U.3 PCIe CBB5.0 Test Fixture
SMPM Connecor with Flexible Cable Moulde

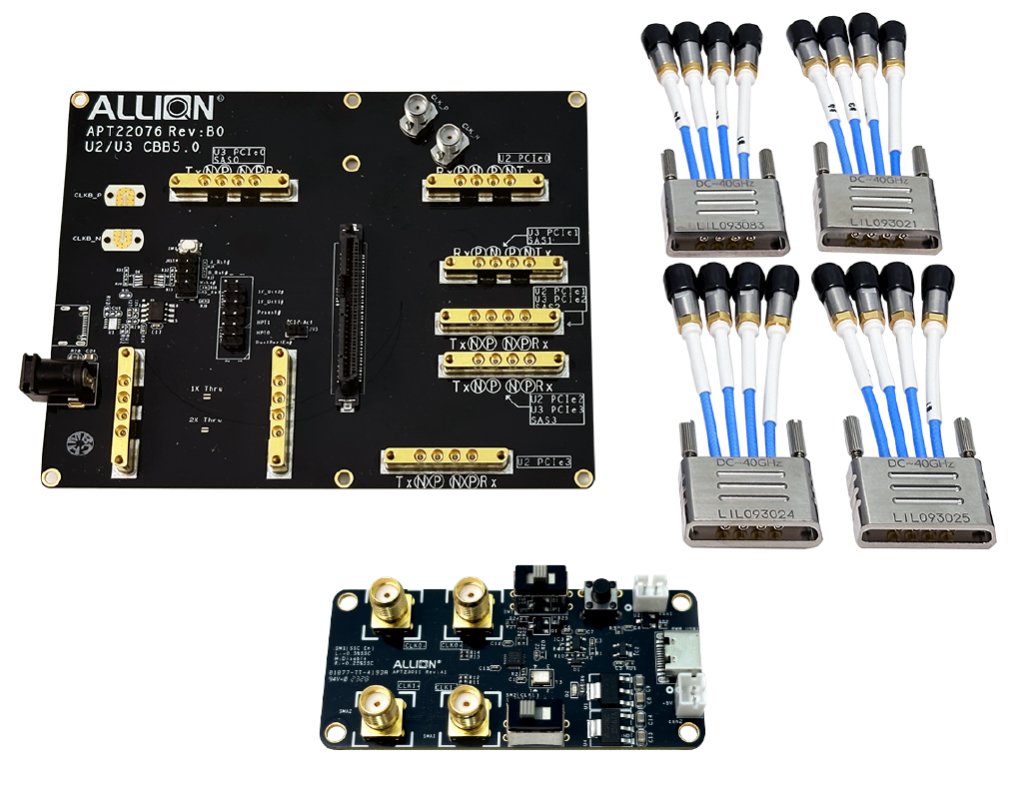

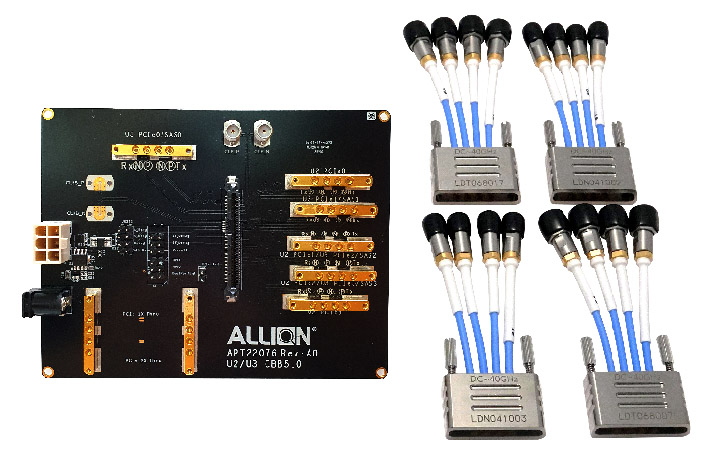

The U.2/U.3 PCIe CBB5.0 Test Fixture Set contains the below items:

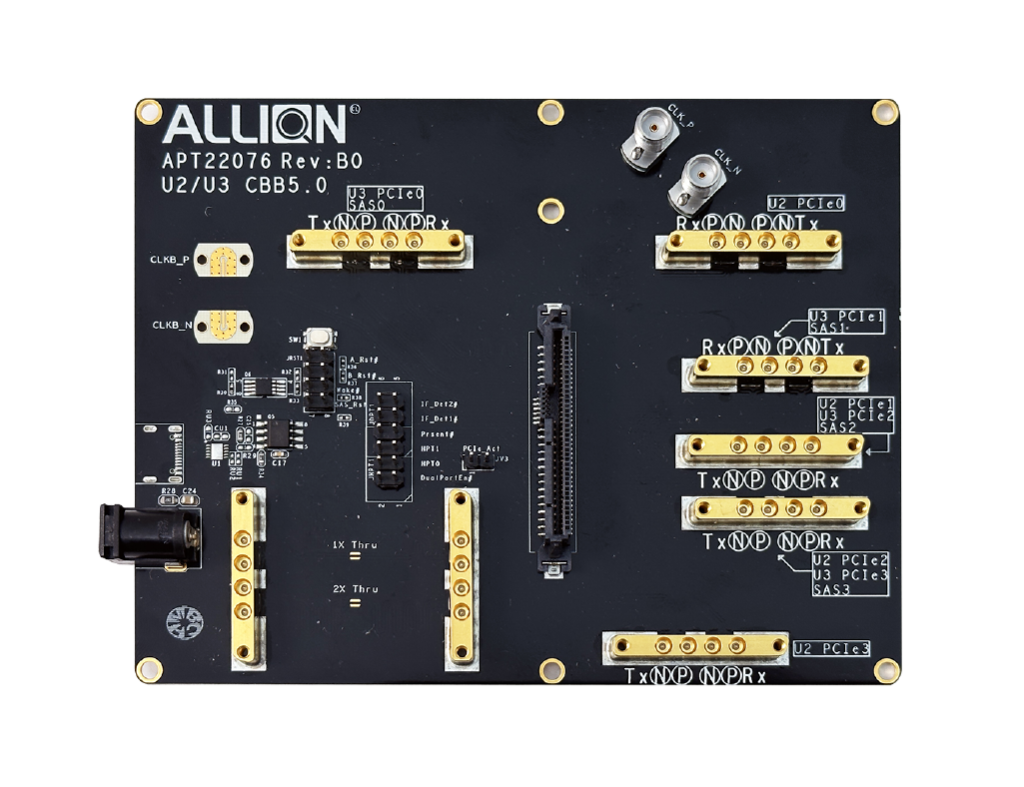

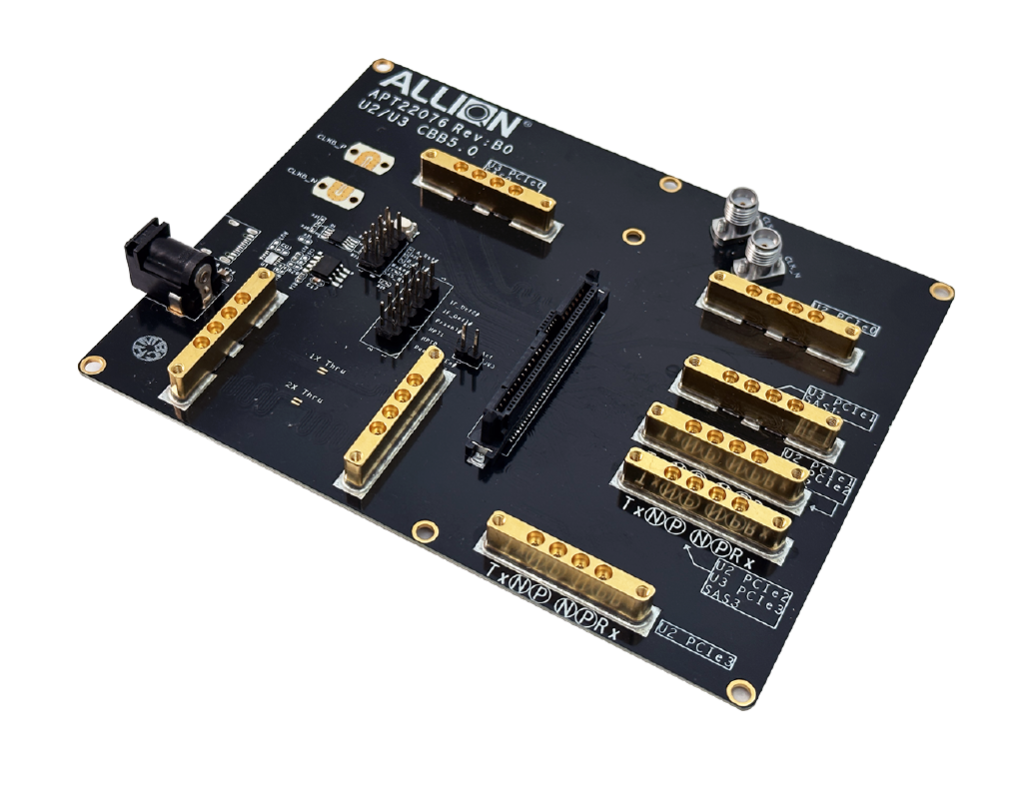

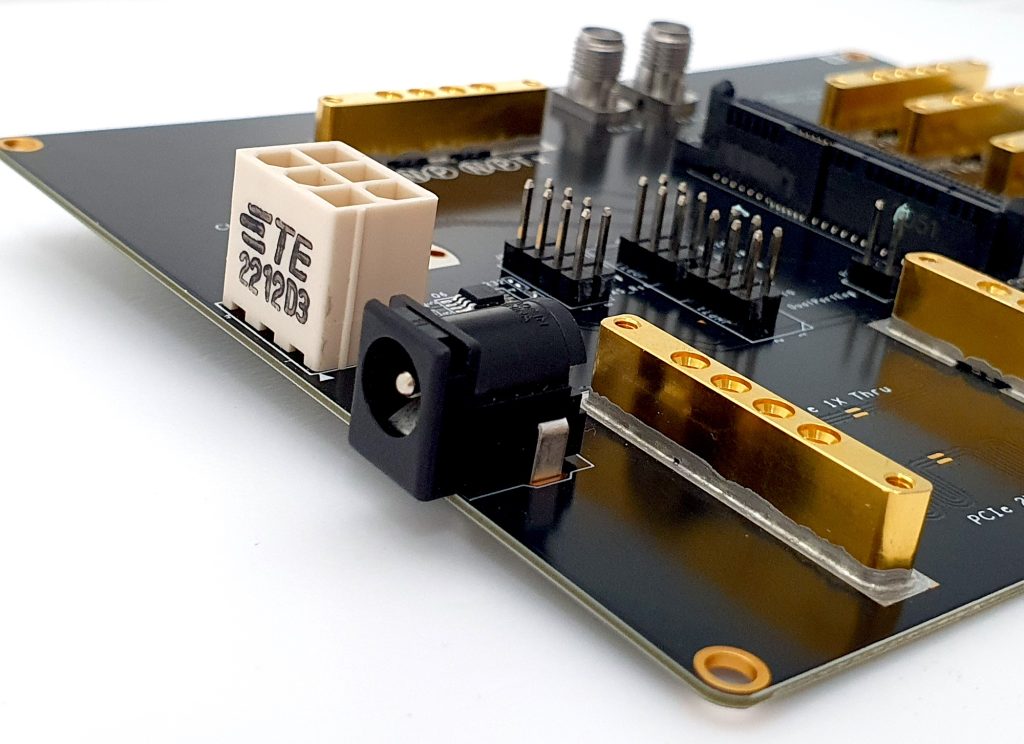

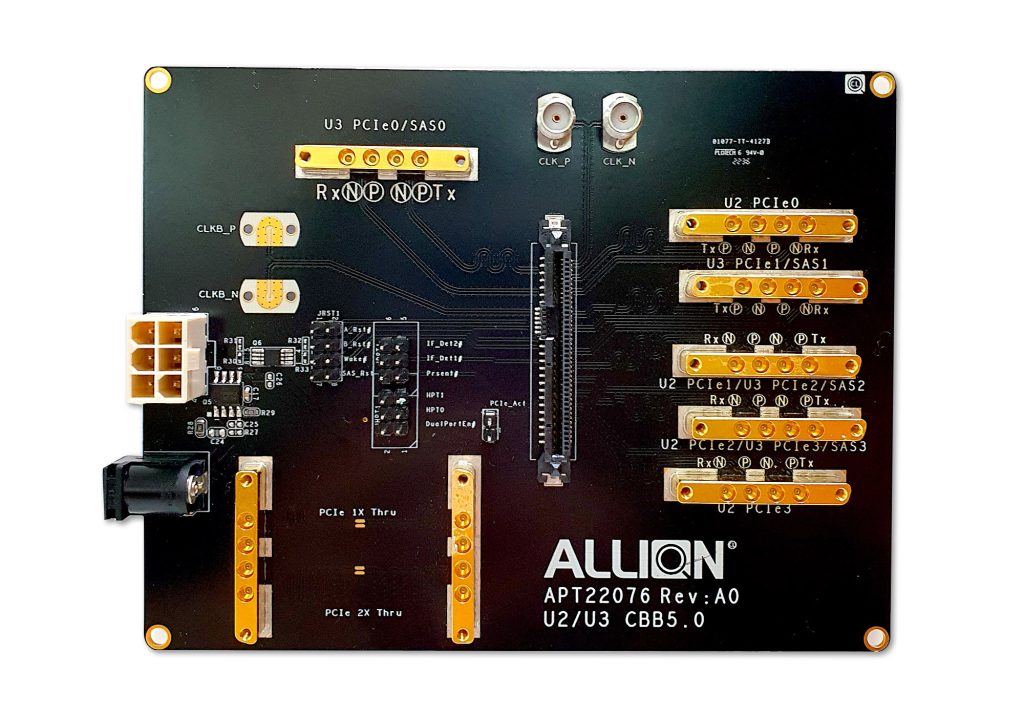

  1. U.2/U.3 CBB5.0 Test Fixture (Model Name: APT22076)
  2. PCIe CBB CMTS board (Model Name: APT23011)
  3. Cable Module*4

The lead time will be 2-4 weeks from order to shipment.

Application

  1. PCI Express Device Compliance Test for Tx/Rx (Gen1-Gen5)
  2. SAS Device Compliance Test for Tx/Rx (SAS1-SAS4)
  3. PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  4. SAS Electrical Signal Quality Validation for Tx/Rx (SAS1-SAS4)
  5. Applicable for Enterprise/Data Center Storage product which use U.2/U.3 interface

Key Feature

  1. PCIe U.2/U.3 Compliance Electical Test for Tx/Rx
  2. SAS Compliance Electical Test for Tx/Rx
  3. Durable SMPM Connectors and flexible Cable Assembly
  4. SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  5. 2X Thru Calibration is designed onboard

Specification

  1. PCIe U.2/U.3 Vertical Receptacle Connector
  2. Six SMPM Connectors for U.2、U.3 and SAS4 PCIe Lane0/1/2/3
  3. Two SMPM Connector for 2X Thru Calibration
  4. Two SMA connectors for Clock Reference
  5. Dimension : 100mm x 70mm
  6. Others:
    Four SMPM 3 inches Cable with SK Receptacle
