M.2 PCIe CBB5.0 Test Fixture

Product ID: APT22060 / APT23011

Product Summary

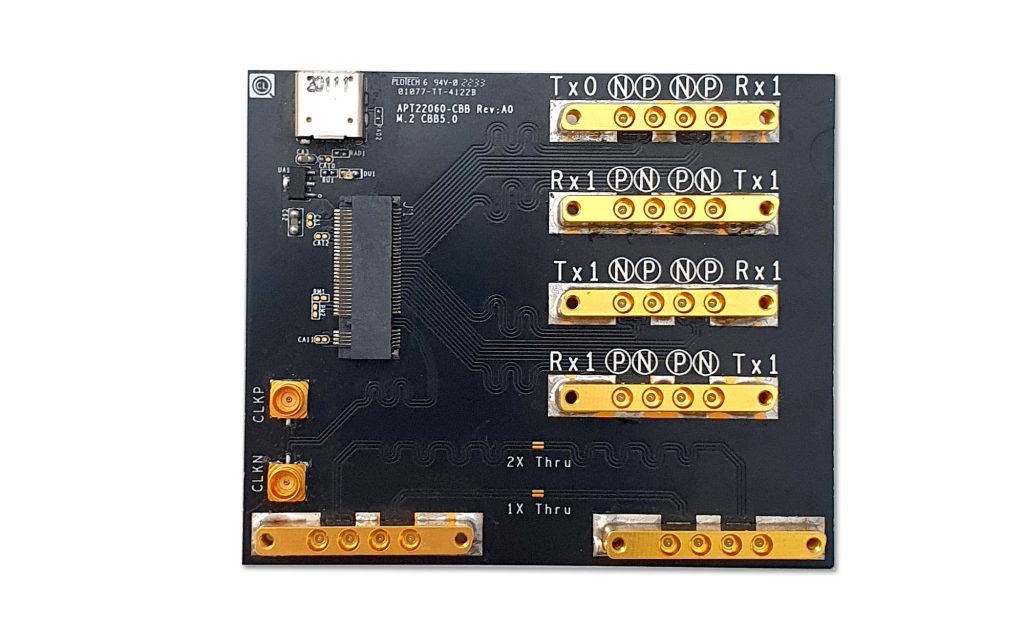

M.2 PCIe CBB5.0 Test Fixture
SMPM Connecor with Flexible Cable Moulde

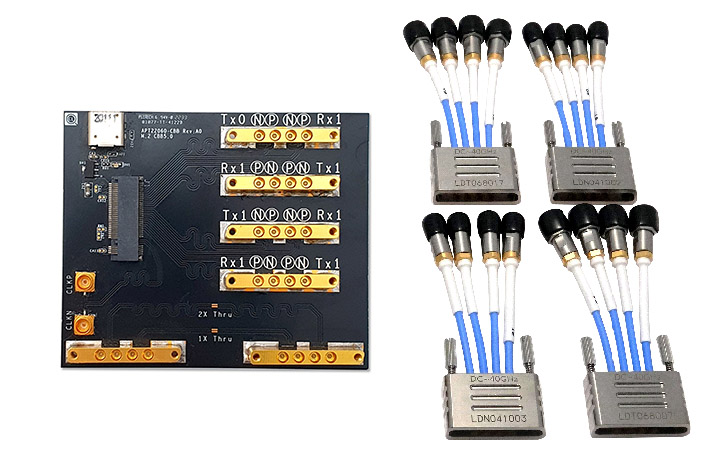

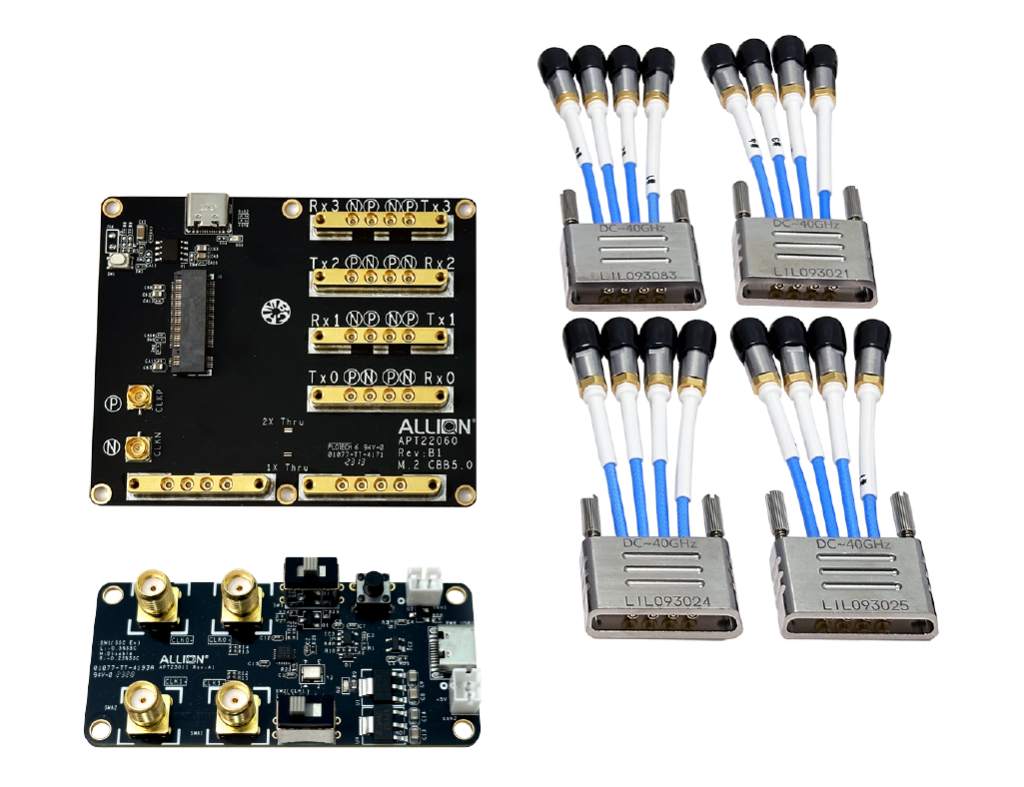

The M.2 PCIe CBB5.0 Test Fixture Set contains the below items:

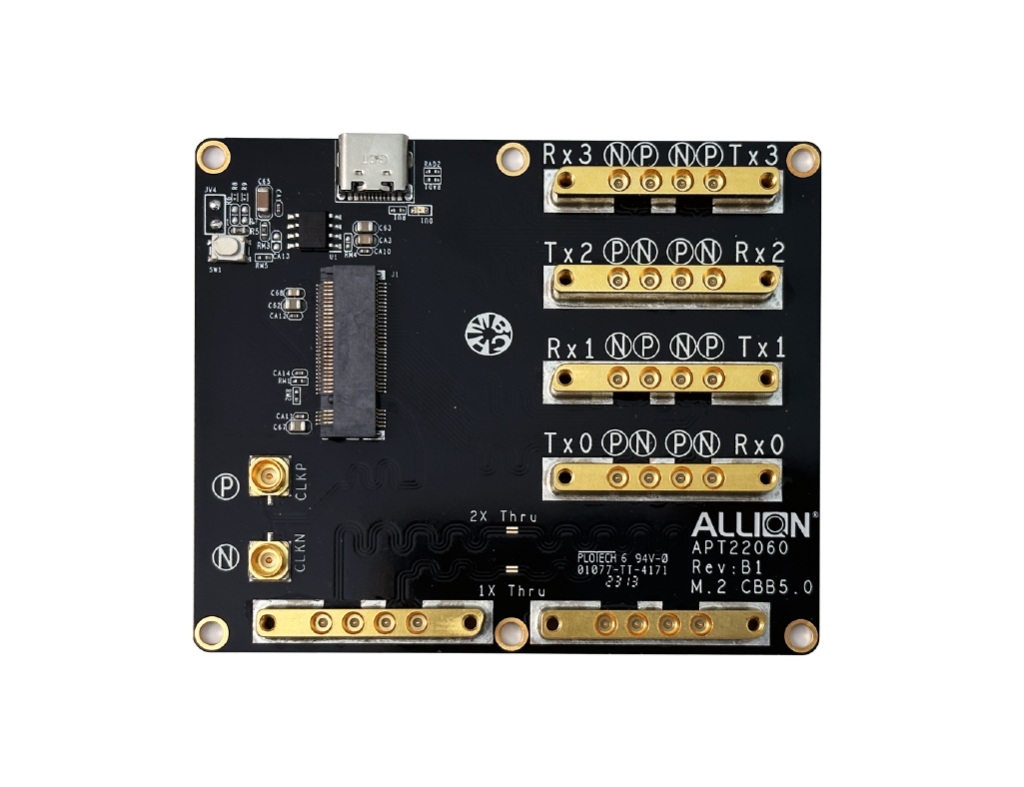

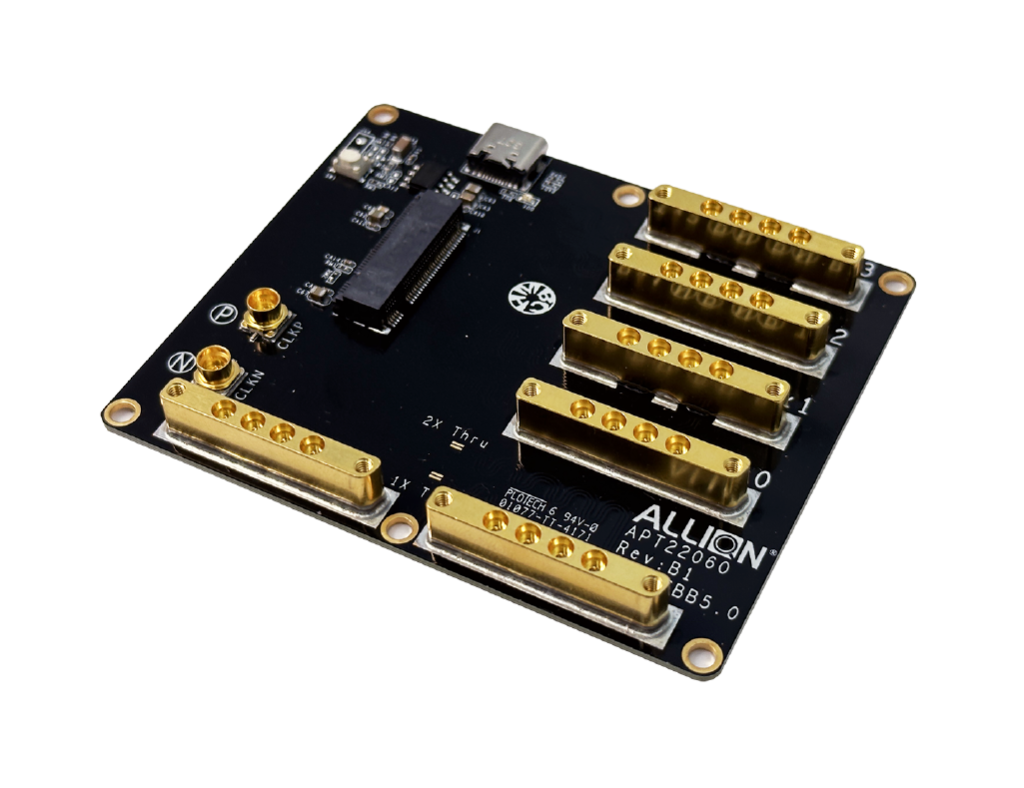

  1. M.2 CBB5.0 Test Fixture (Model Name: APT22060)

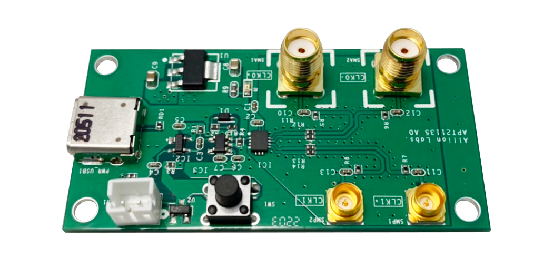

  2. PCIe CBB CMTS board (Model Name: APT23011)
  3. Cable Module*4

The lead time will be 2-4 weeks from order to shipment.

Application

  1. PCI Express Device Compliance Test for Tx/Rx (Gen1-Gen5)
  2. PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  3. Applicable for Device, Storage product which use M.2 interface

Key Features

  1. PCIe M.2 Compliance Electical Test for Tx/Rx
  2. Durable SMPM Connectors and flexible Cable Assembly
  3. SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  4. 2X Thru Calibration is designed onboard

Specification

  1. PCIe M.2 M-Key Receptacle Connector

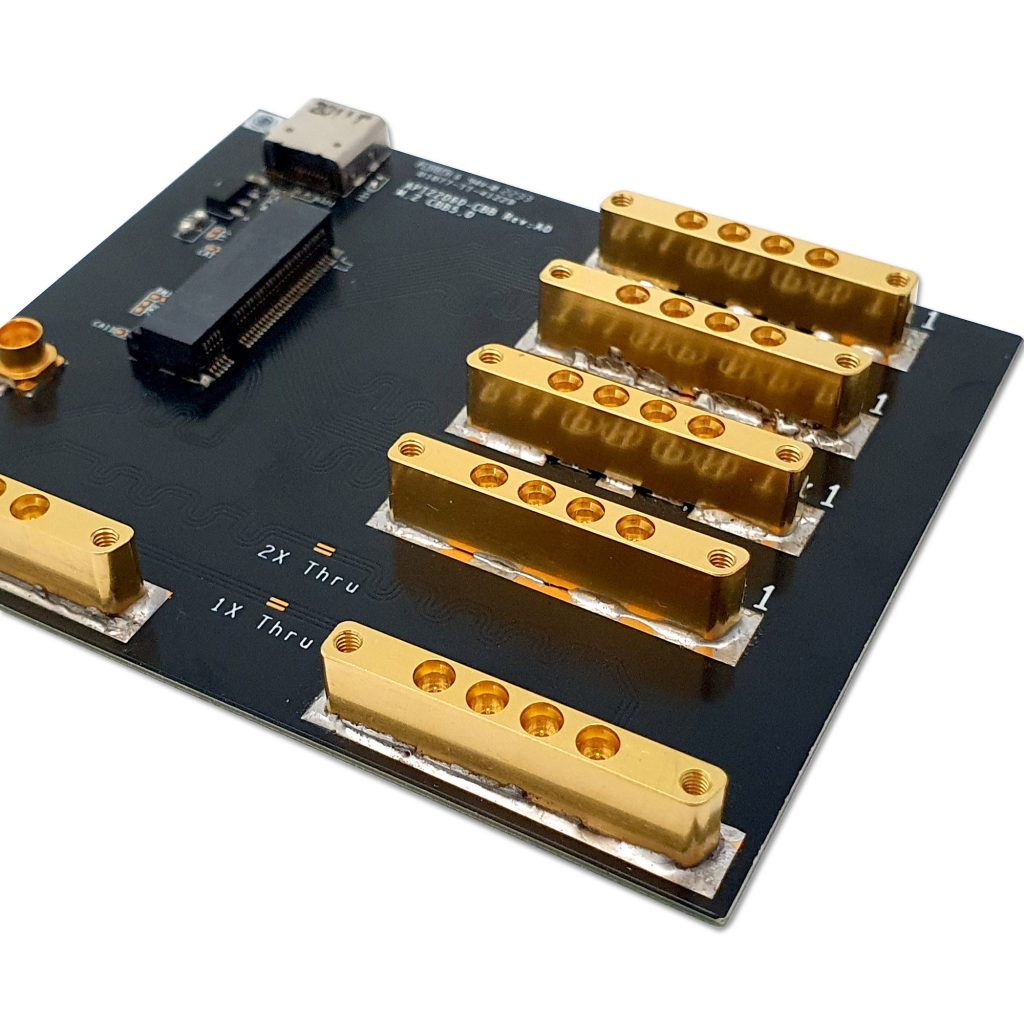

  2. Four SMPM Connector for Full Lanes Support
  3. Two SMPM for 2X Thru Calibration purpose
  4. Two SMP Connector for Reference Clock
  5. Dimesion : 66.8mm x 80mm
  6. Others:
    Four SMPM 3 inches Cable with SK Receptacle

For more information or other requests, please feel free to contact us at: service@allion.com
