CEM PCIe CBB5.0 Test Fixture

Product ID: APT22023 / APT23022 / APT23011

Product Summary

CEM PCIe CBB5.0 Test Fixture
SMPM Connecor with Flexible Cable Moulde

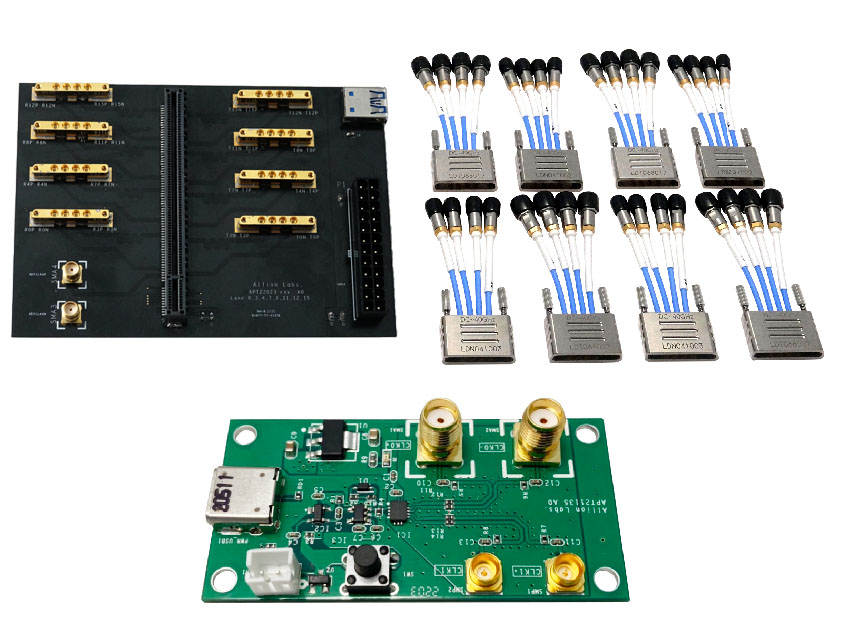

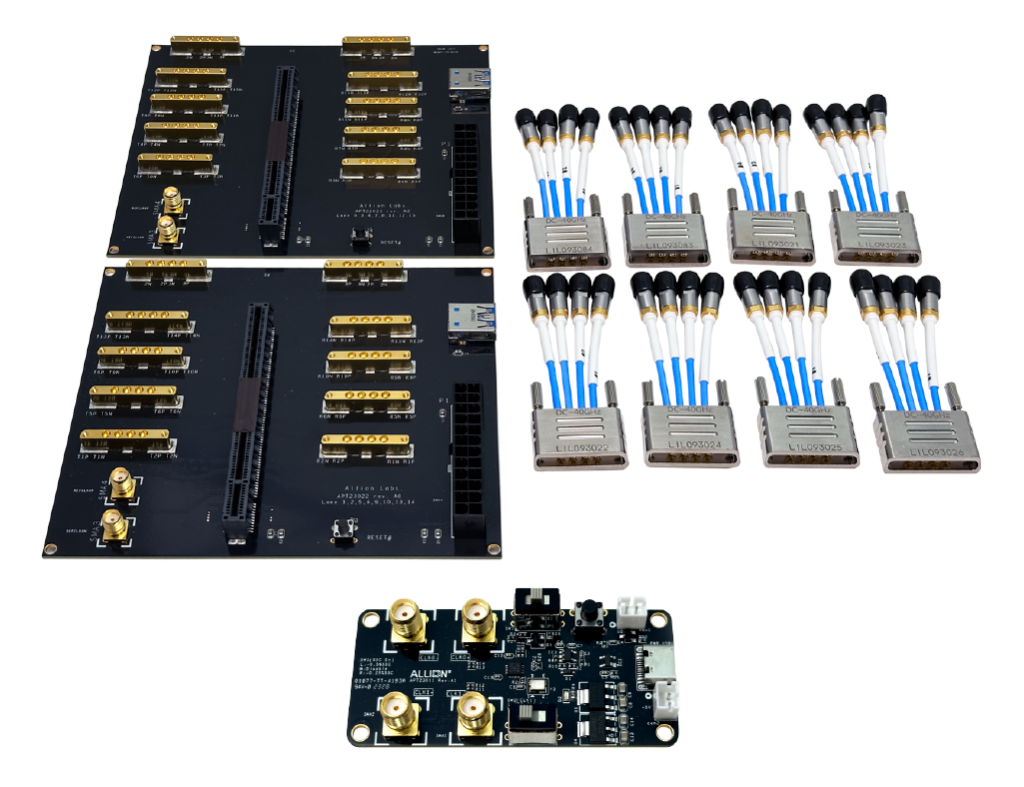

The CEM PCIe CBB5.0 Test Fixture Set contains the below items:

  1. CEM CBB5.0 x1 (Model Name: APT22023)
  2. CEM CBB5.0 x1 (Model Name: APT23022)
  3. PCIe CBB CMTS board (Model Name: APT23011)
  4. Cable Module*8

The lead time will be 2-4 weeks from order to shipment.

※ Due to a version update, this fixture is scheduled for sale starting from Q1 2025.

Application

  1. PCI Express AIC(Add-In-Card)/Device Compliance Test for Tx/Rx (Gen1-Gen5)
  2. PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  3. Applicable for Device or Add-in-card product which use PCIe standard(CEM) interface

Key Features

  1. PCIe CEM Compliance Electical Test for Tx/Rx
  2. Durable SMPM Connectors and flexible Cable Assembly
  3. SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  4. 2X Thru Calibration is designed onboard

Specification

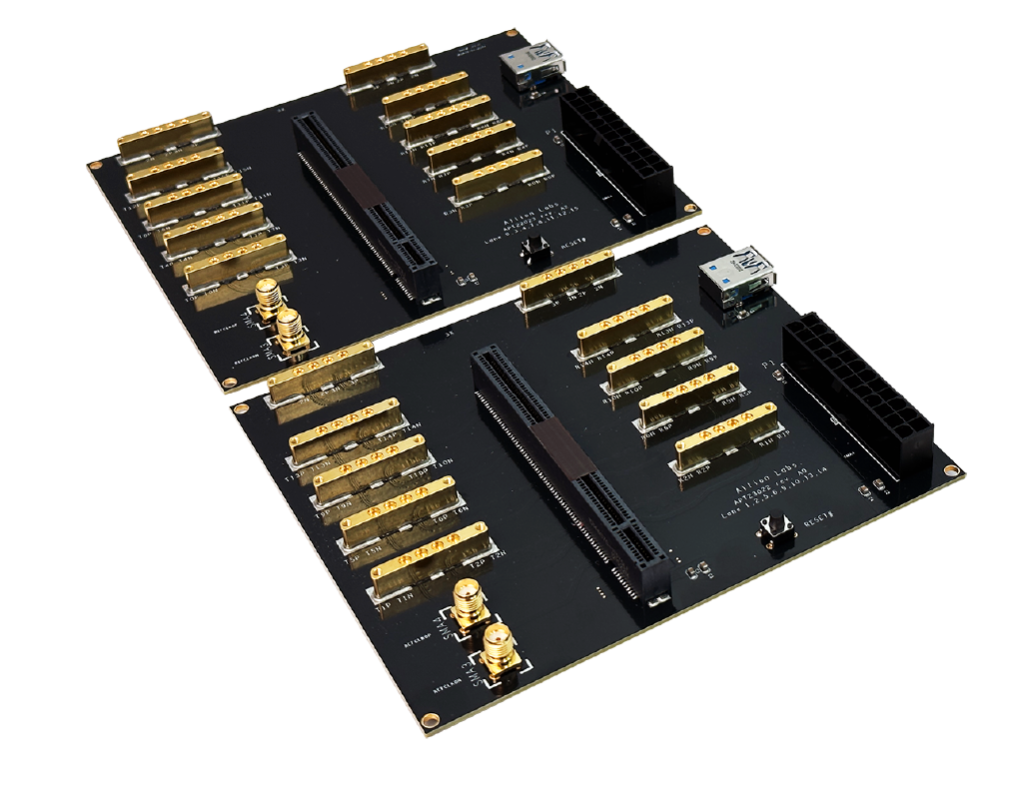

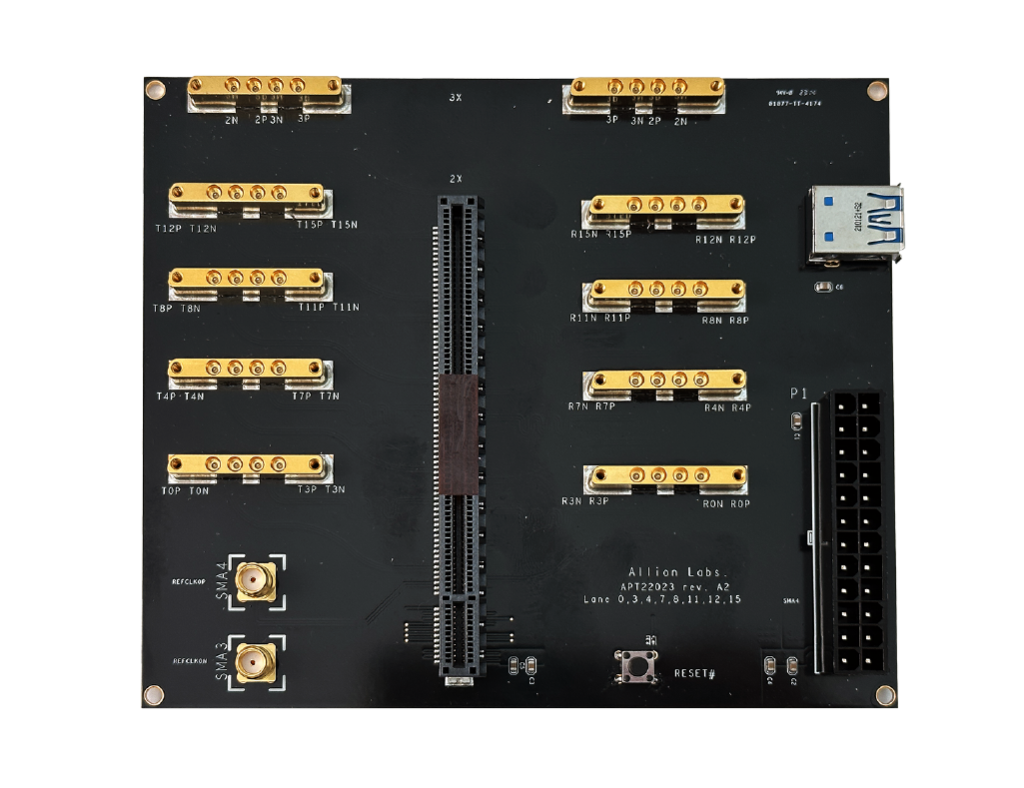

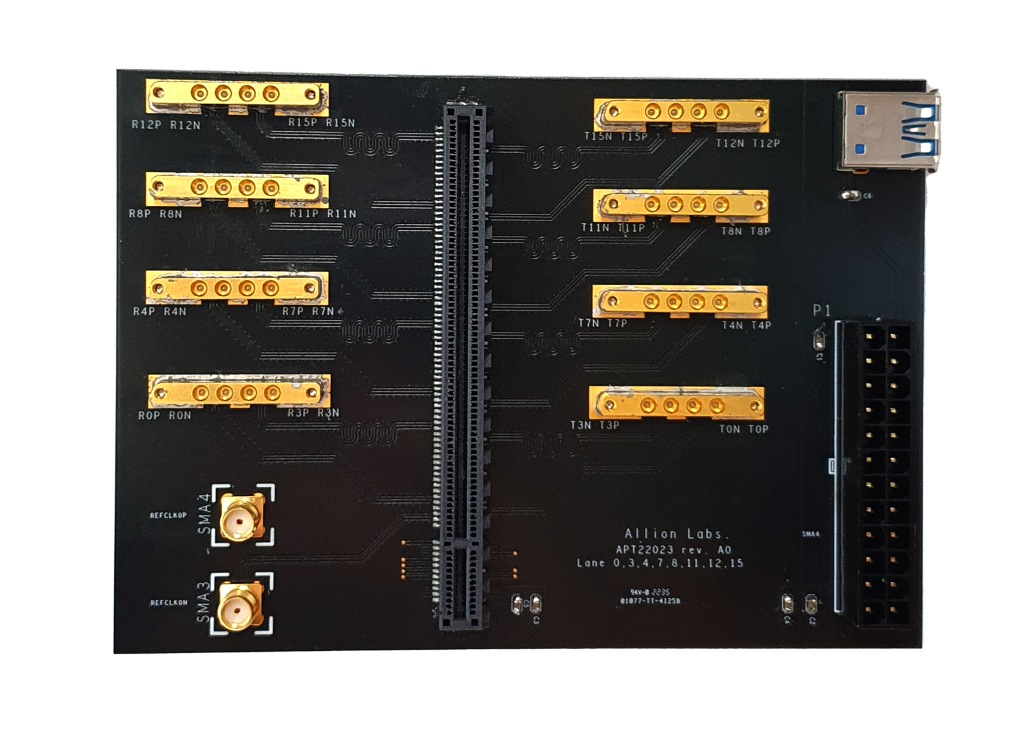

APT22023

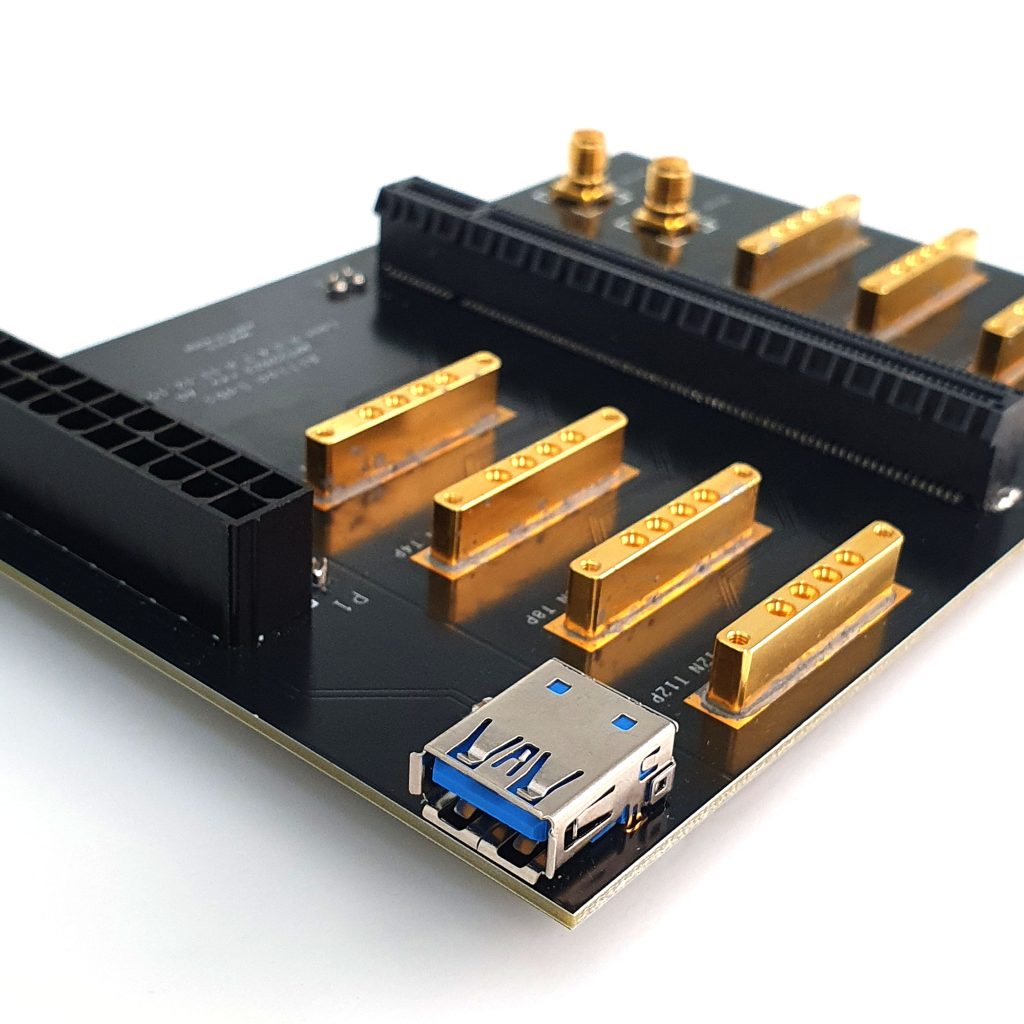

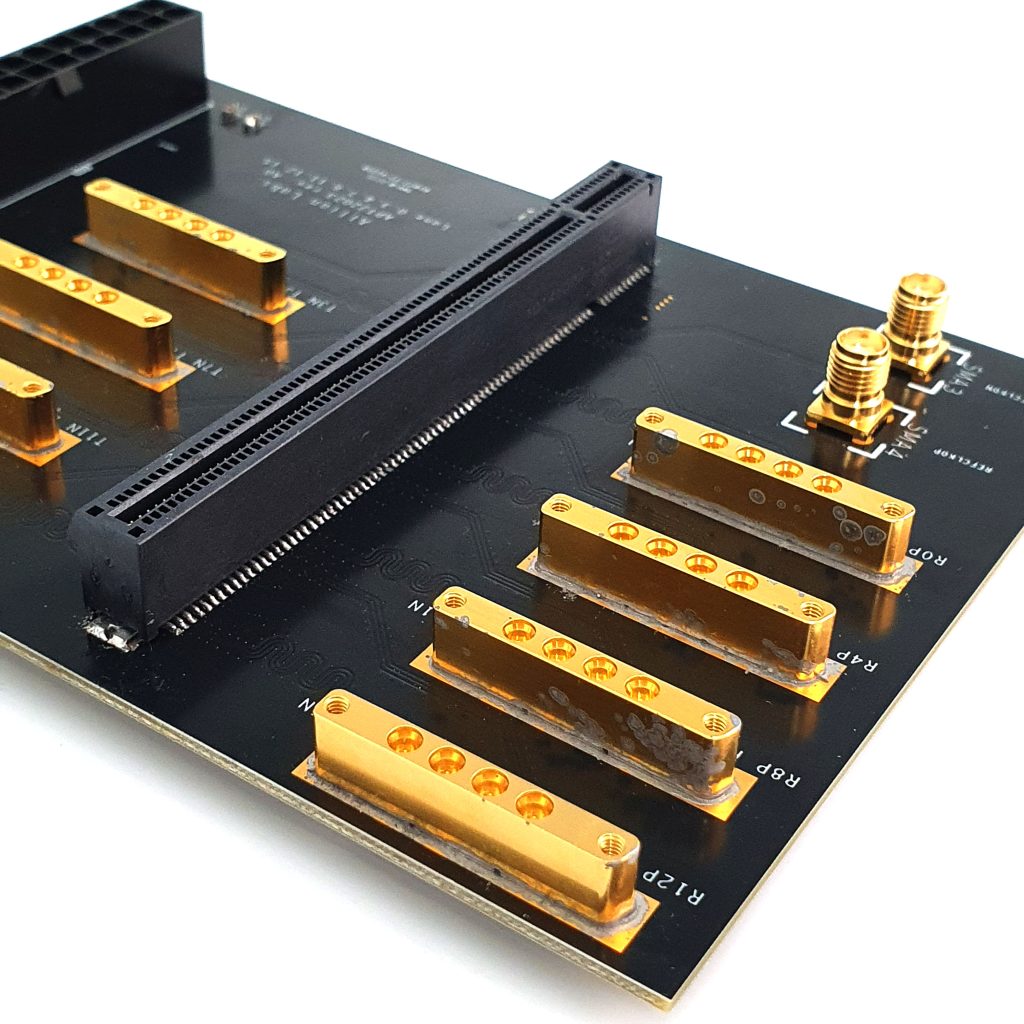

  1. PCIe Receptacle connector
  2. Eight SMPM Connector for Lane 0/3/4/7/8/11/12/15
  3. Two DIP SMA Connector for Reference Clock
  4. Two SMPM Connector for 2X Thru
  5. Dimesion : 142.20mm x 120.90mm
  6. Others:
    Eight SMPM 3 inches Cable with SK Receptacle

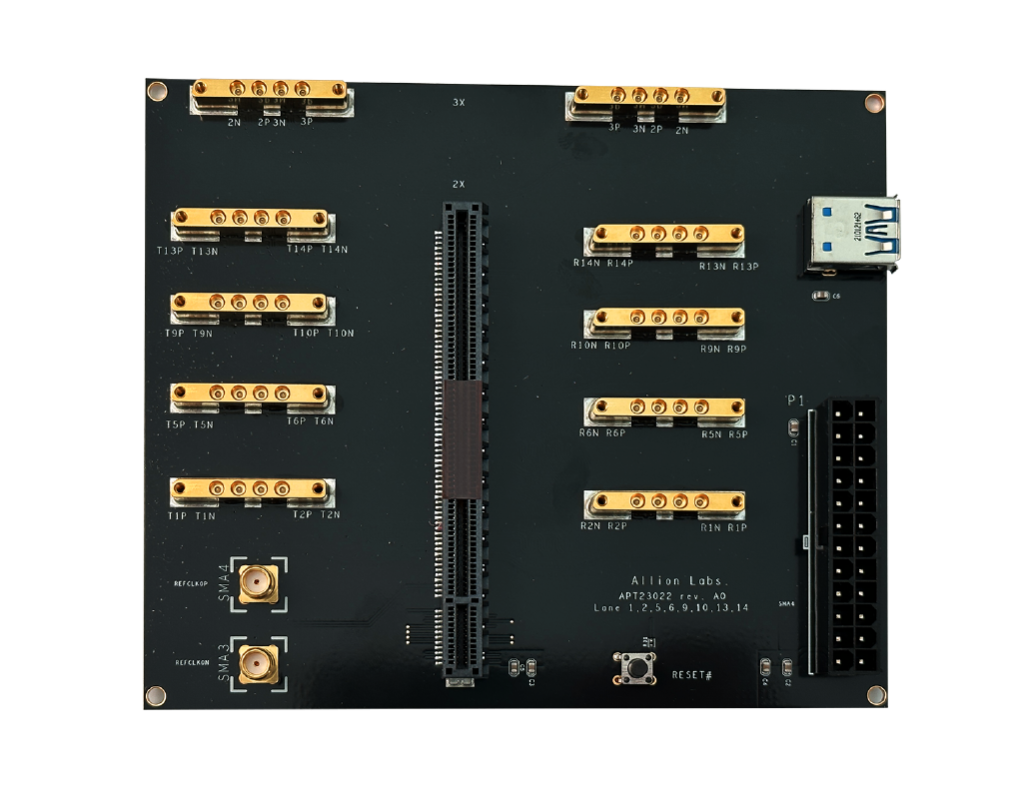

APT23022

  1. PCIe Receptacle connector
  2. Eight SMPM Connector for Lane 1/2/5/6/9/10/13/14
  3. Two DIP SMA Connector for Reference Clock
  4. Two SMPM Connector for 2X Thru
  5. Dimesion : 142.20mm x 120.90mm
  6. Others:
    Eight SMPM 3 inches Cable with SK Receptacle

For more information or other requests, please feel free to contact us at: service@allion.com
