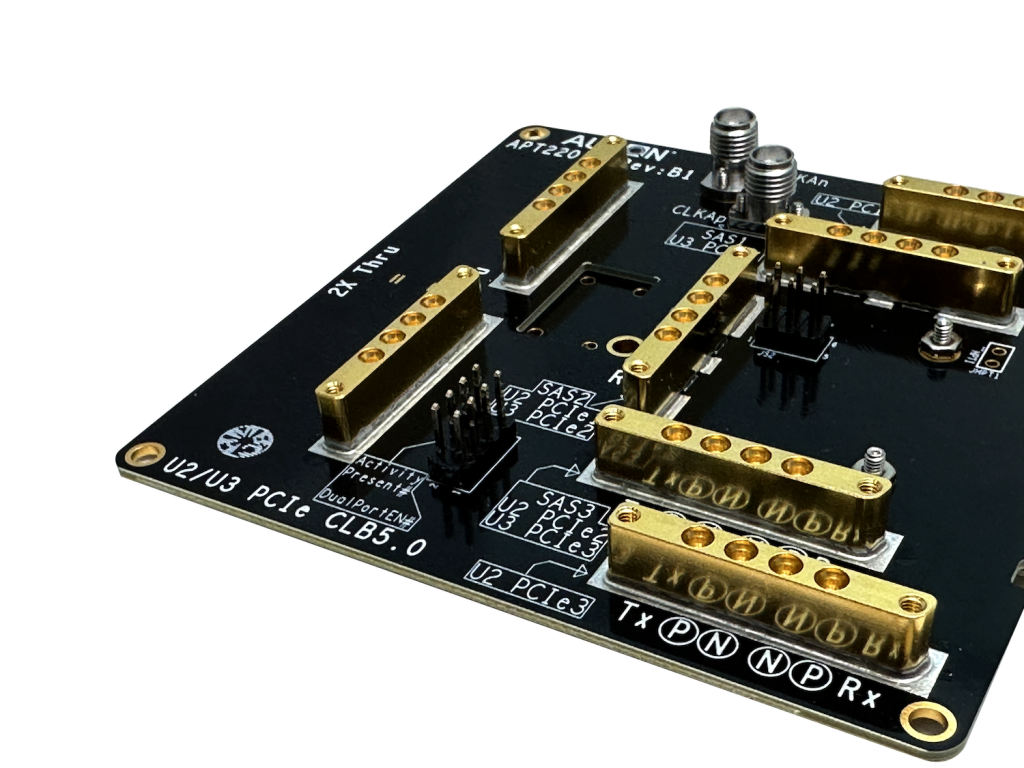

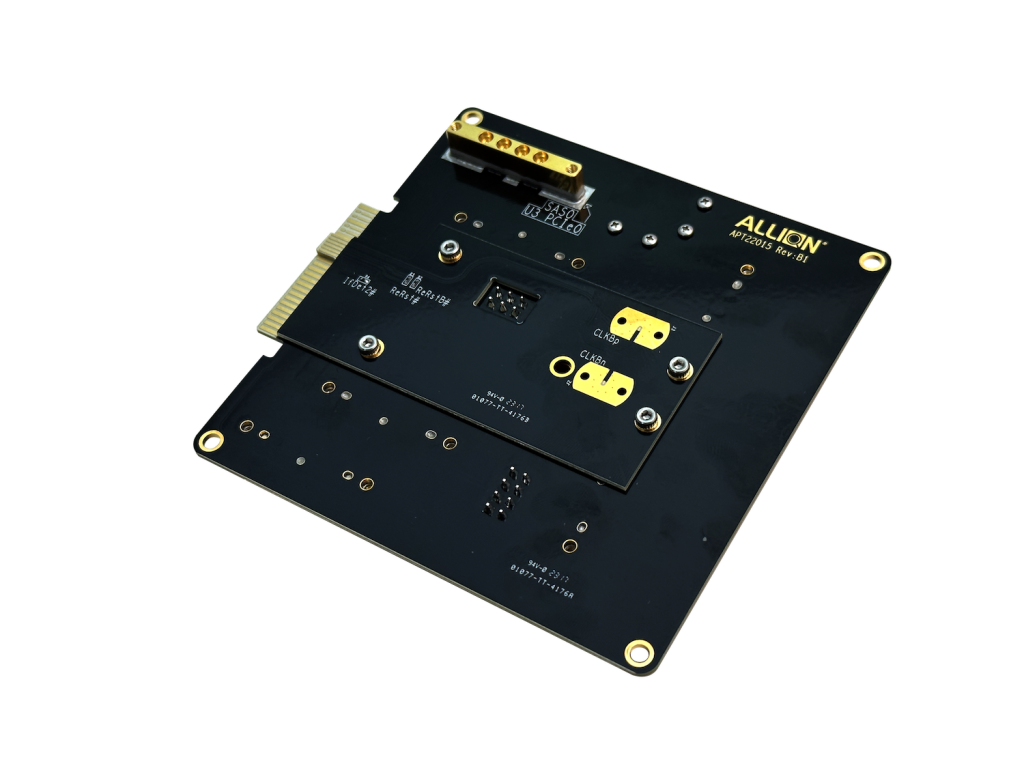

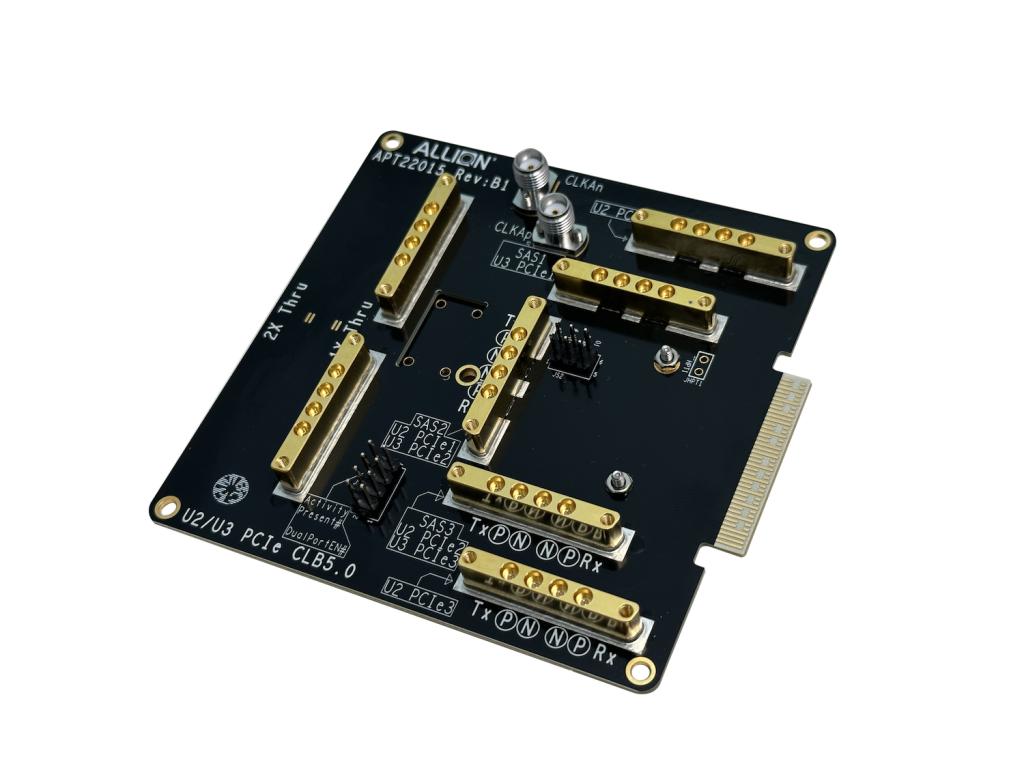

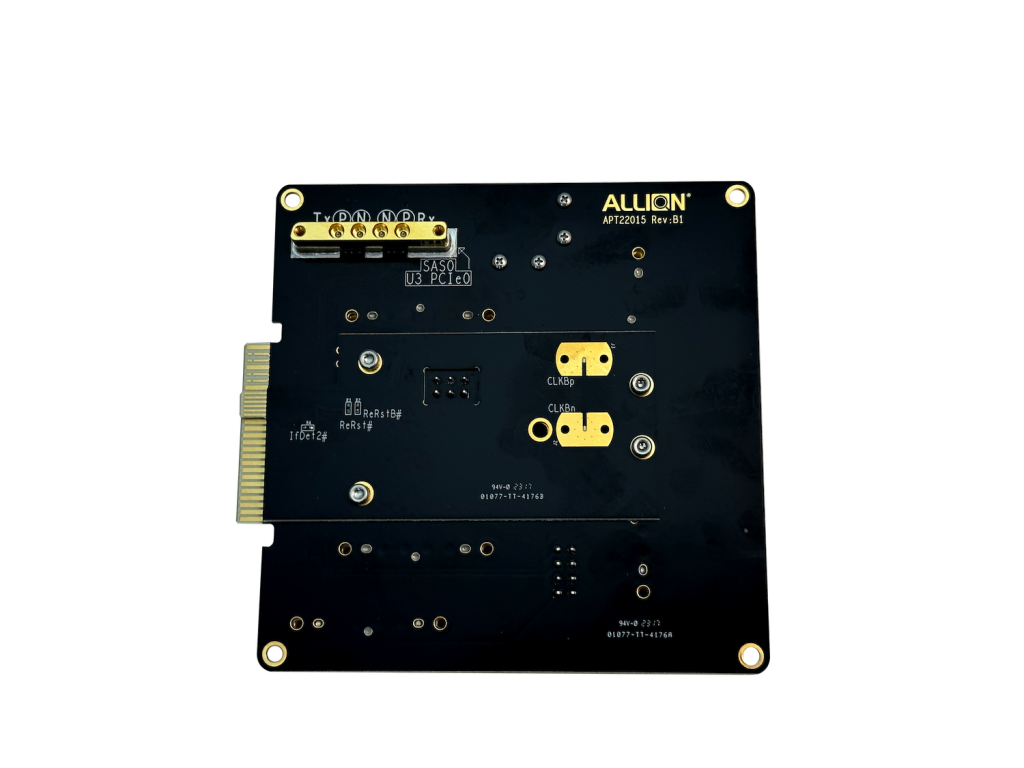

U.2/U.3 PCIe CLB5.0 Test Fixture

Product ID: APT22015 / APT21135

Product Summary

Worldwide First U.2/U.3 PCIe CLB5.0 Test Fixture
Combination U.2 & U.3 Electircal Signals with one Board solution.
Modulize & Vairty Cable Assmebly.

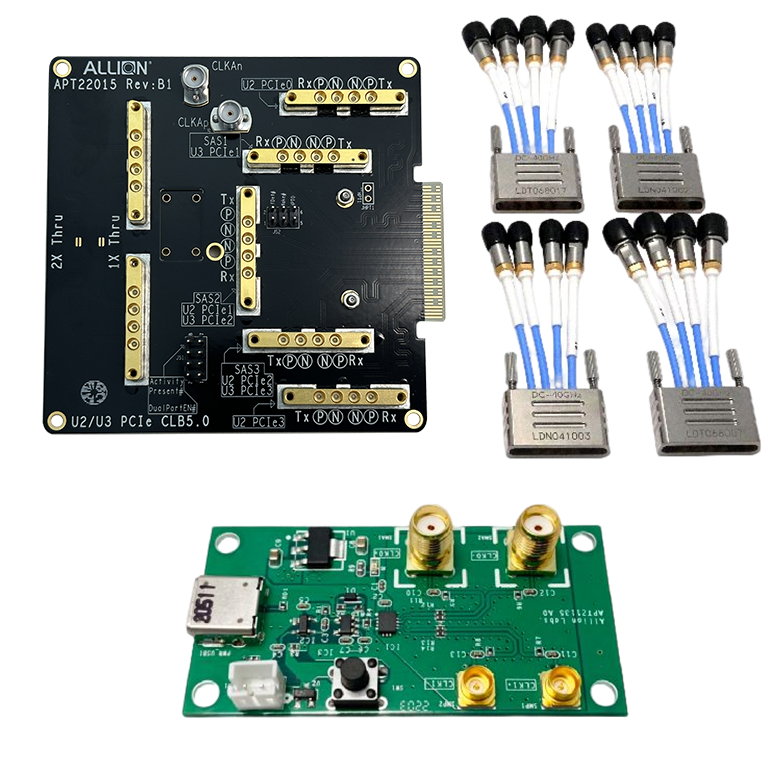

  • The U.2/U.3 PCIe CLB5.0 Test Fixture Set contains the below items:
    1. U.2/U.3 Test Fixture (Model Name: APT22015)
    2. Allion CMTS Board (Model Name: APT21135)
    3. Cable Module*4
  • The lead time will be 2-4 weeks from order to shipment.

Application

  1. PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen5)
  2. SAS Host Compliance Test for Tx/Rx (SAS1-SAS4)
  3. PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  4. SAS Electrical Signal Quality Validation for Tx/Rx (SAS1-SAS4)
  5. Applicable for Server, IPC, or system product which has designed U.2/U.3 interface

Key Feature

  1. PCIe U.2/U.3 Compliance Electical Test for Tx/Rx
  2. Durable SMPM Connectors and flexible Cable Assembly
  3. SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  4. 2X Thru Calibration is designed onboard

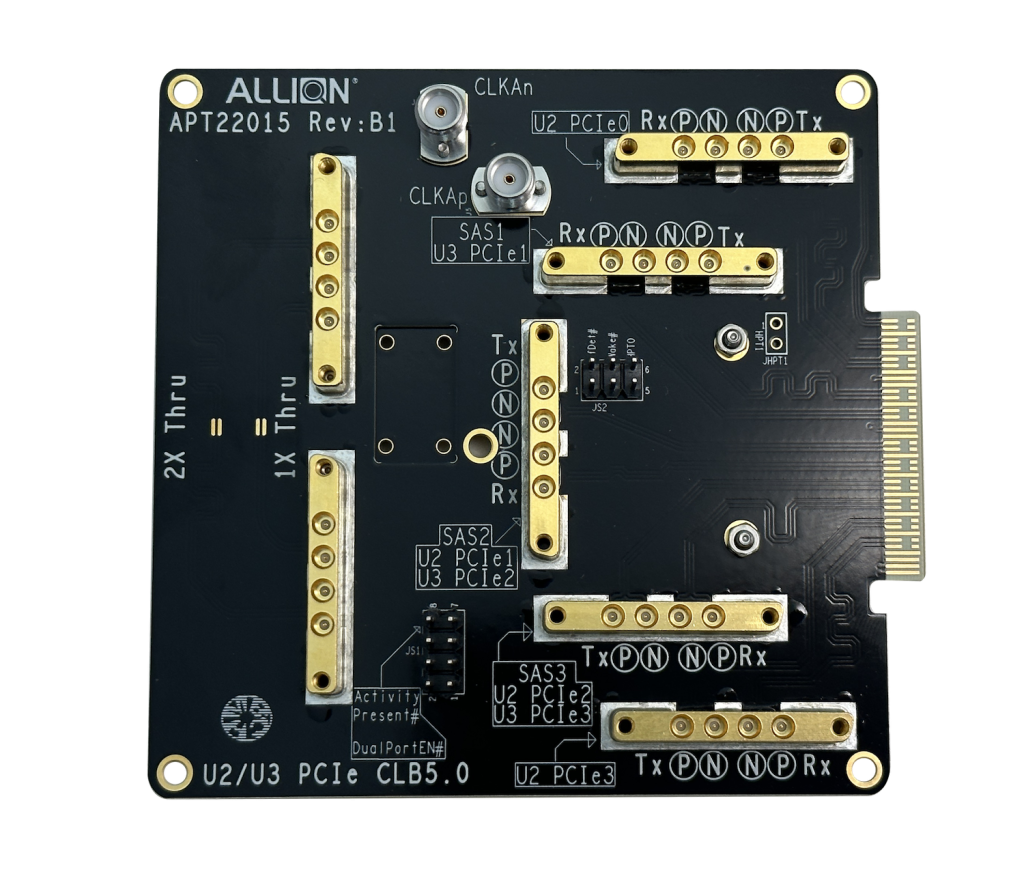

Specification

  1. Two SMPM Connector for U.2 PCIe Lane0/Lane3
  2. Two SMPM Connector for U.2&U.3 Overlap Lane1/Lane2
  3. Two SMPM Connector for U.3 PCIe Lane0/Lane3
  4. Two SMPM Connector for 2X Thru Calibration
  5. Two SMA connectors for Reference Clock
  6. Standard SFF-8639 Connector for Host Connection
  7. Four SMPM PC-2.92 to SMPM 3 inches Cable Box (Each Cable Box connects 2 pairs of differential signals)
  8. Dimension : 100mm x 61mm

For more information or other requests, please feel free to contact us at: service@allion.com
