OCP NIC 3.0 PCIe CBB5.0 Test Fixture

Product ID: APT22011 / APT23011

Product Summary

OCP NIC 3.0 PCIe CBB5.0 Test Fixture
SMPM Connecor with Flexible Cable Moulde

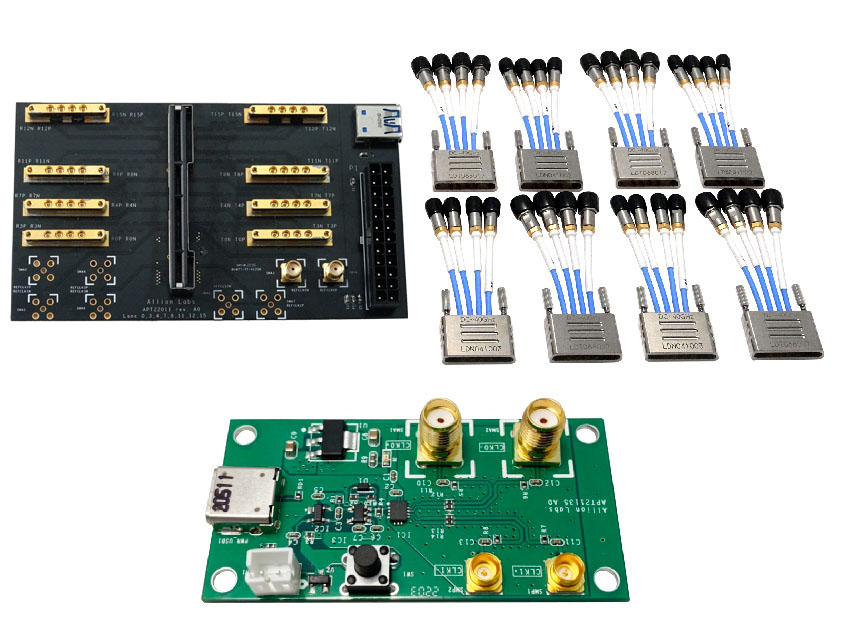

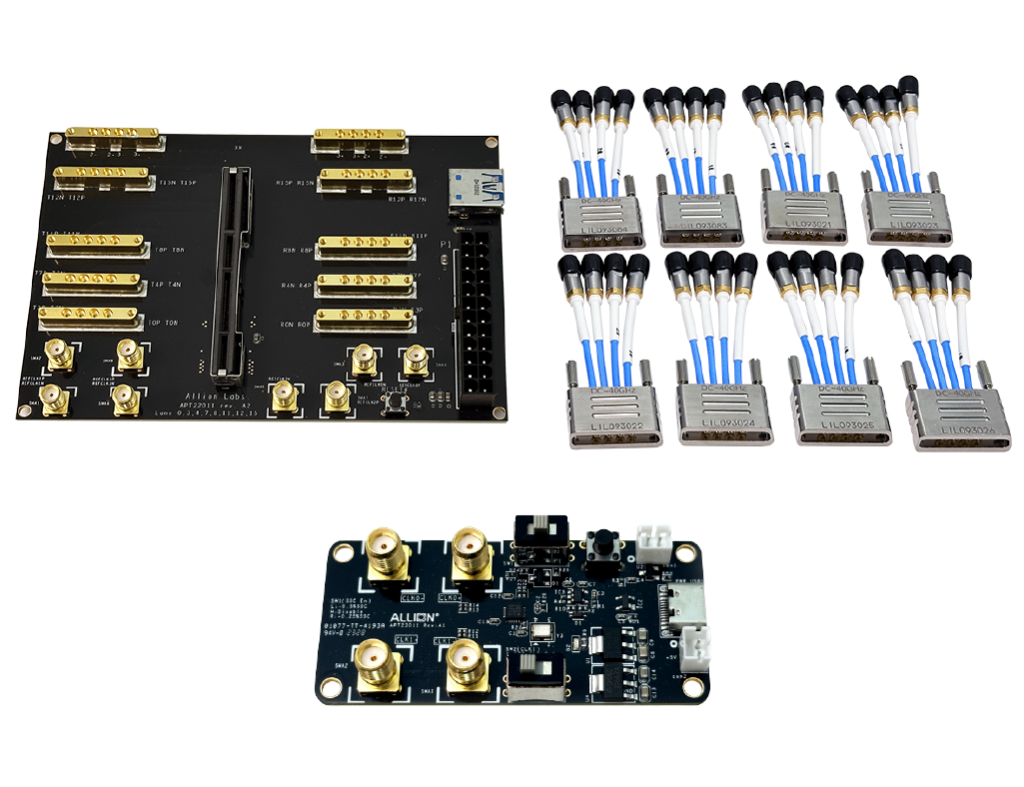

The OCP NIC 3.0 PCIe CBB5.0 Test Fixture Set contains the below items:

  1. OCP NIC3.0 CBB5.0 x1 (Model Name: APT22011)

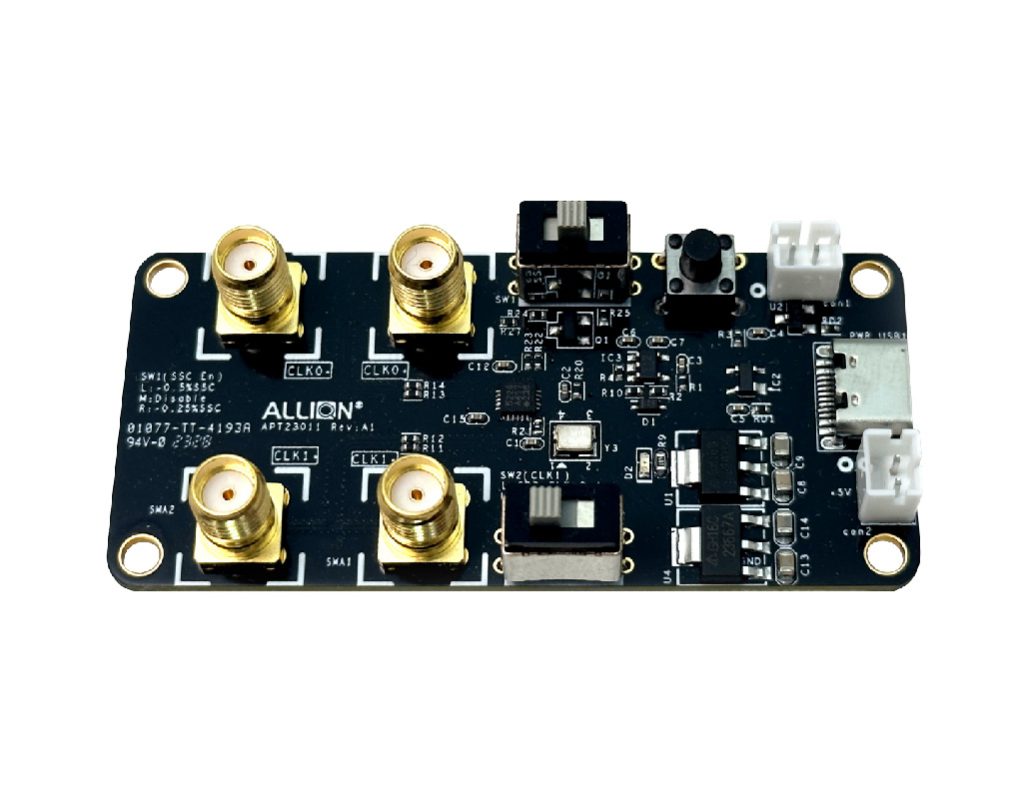

  2. PCIe CBB CMTS board (Model Name: APT23011)
  3. Cable Module*8

The lead time will be 2-4 weeks from order to shipment.

Application

  1. PCI Express AIC(Add-In-Card)/Device Compliance Test for Tx/Rx (Gen1-Gen5)
  2. PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  3. Applicable for High-speed Ethernet or Add-in-card product which use OCP NIC 3.0 interface
  4. Backward compatible with Enterprise/Data Center Storage product which use EDSFF E1/E3 interface

Key Features

  1. PCIe EDSFF/OCP NIC 3.0 Compliance Electical Test for Tx/Rx
  2. Backward compatible with EDSFF 1C/2C (E1/E3)
  3. Durable SMPM Connectors and flexible Cable Assembly
  4. SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  5. 2X Thru Calibration is designed onboard

Specification

APT22011

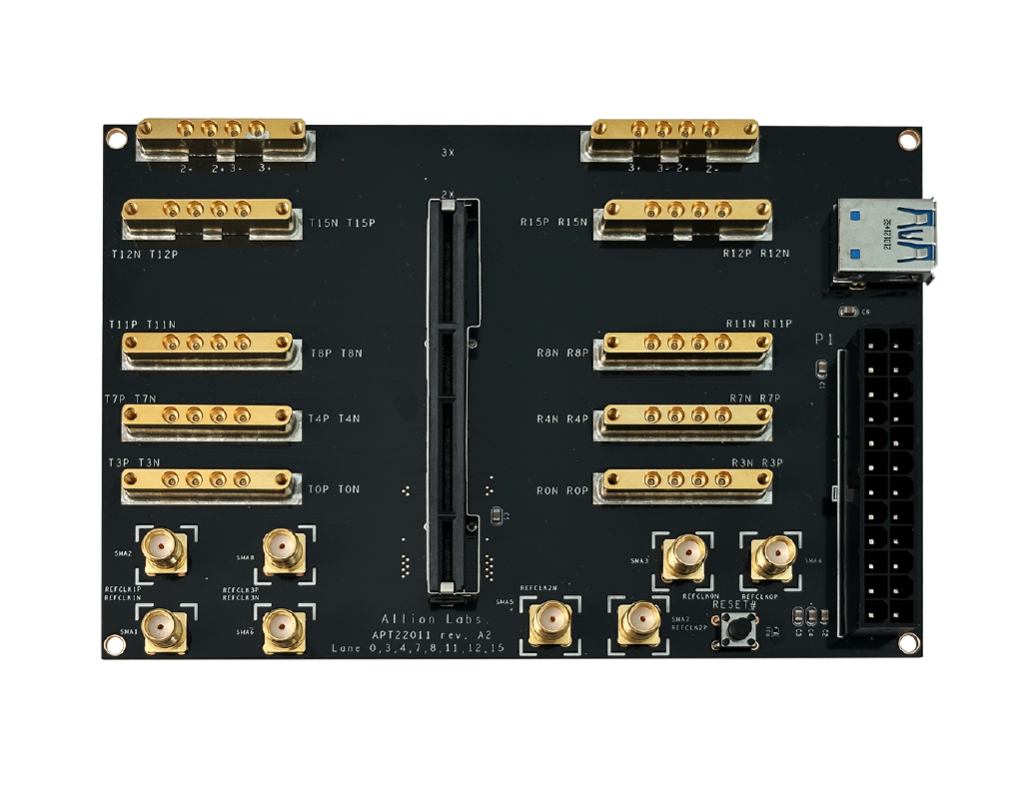

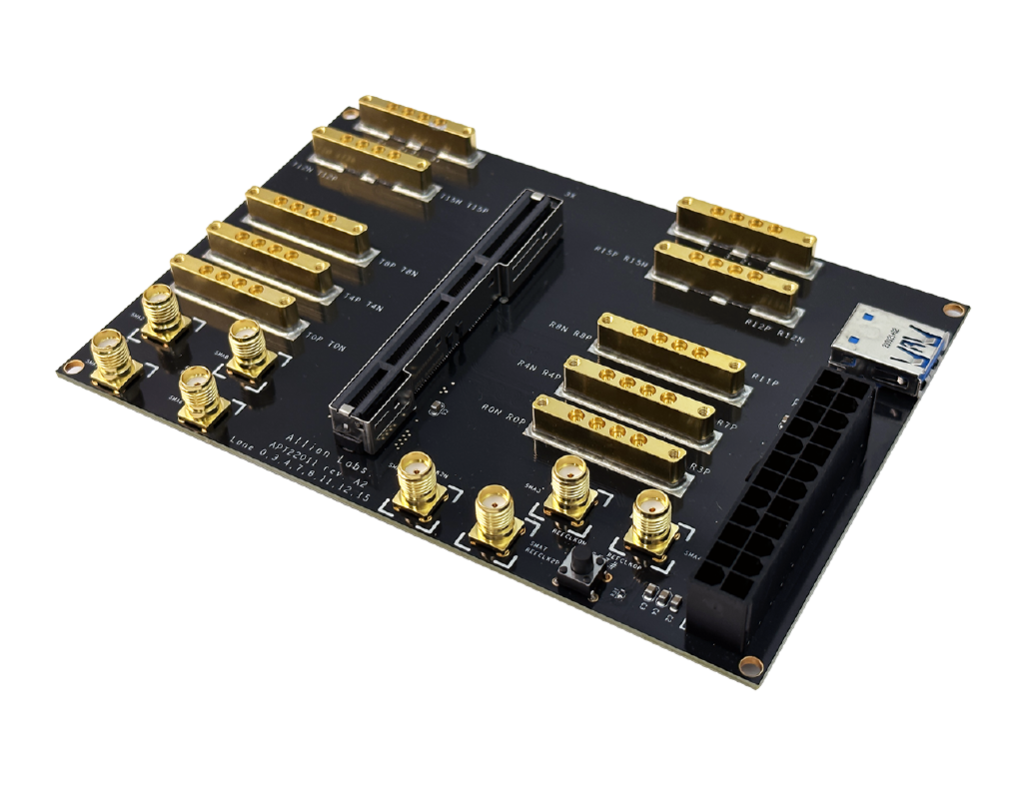

  1. EDSFF C4/C4+ Receptacle connector
  2. Eight SMPM Connector for Lane 0/3/4/7/8/11/12/15
  3. Two DIP SMA Connector for Reference Clock
  4. Two SMPM Connector for 2X Thru
  5. Dimesion : 142.24mm x 25mm
  6. Others:
    Eight SMPM 3 inches Cable with SK Receptacle

For more information or other requests, please feel free to contact us at: service@allion.com
