M.2 PCIe CLB5.0 Test Fixture

Product ID: APT21070a / APT21070b / APT21070c / APT21135

Product Summary

Worldwide First M.2 PCIe CLB5.0 Test Fixture.
Separated 4 Lanes M.2 PCIe Signals to 2 boards for measurement.
Modular & Variable Cable Assembly.

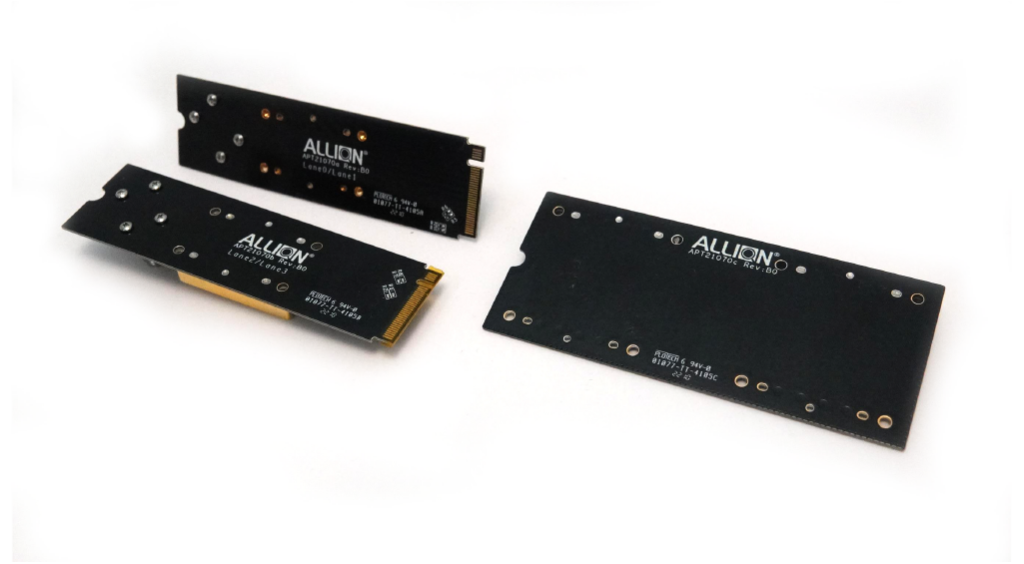

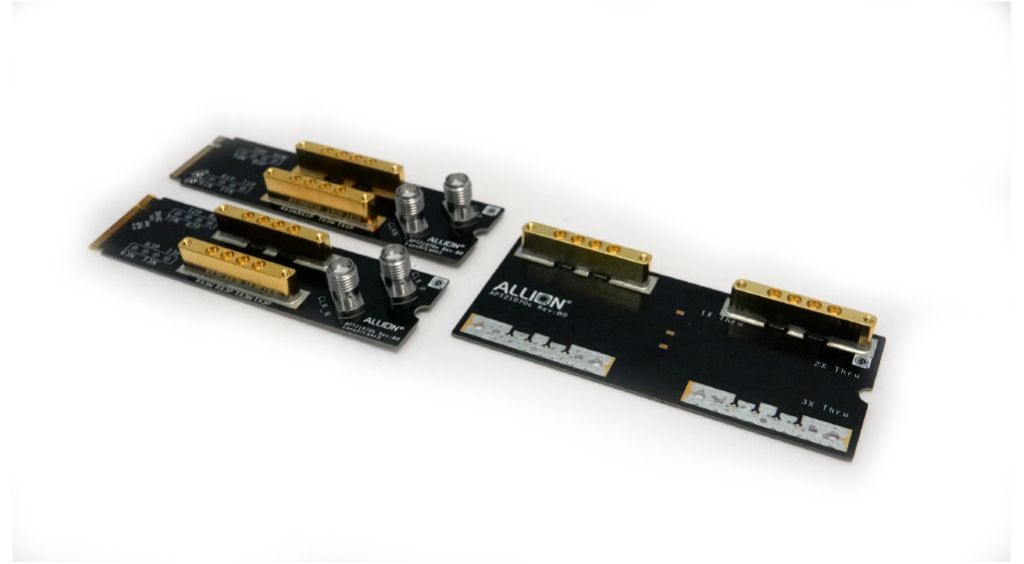

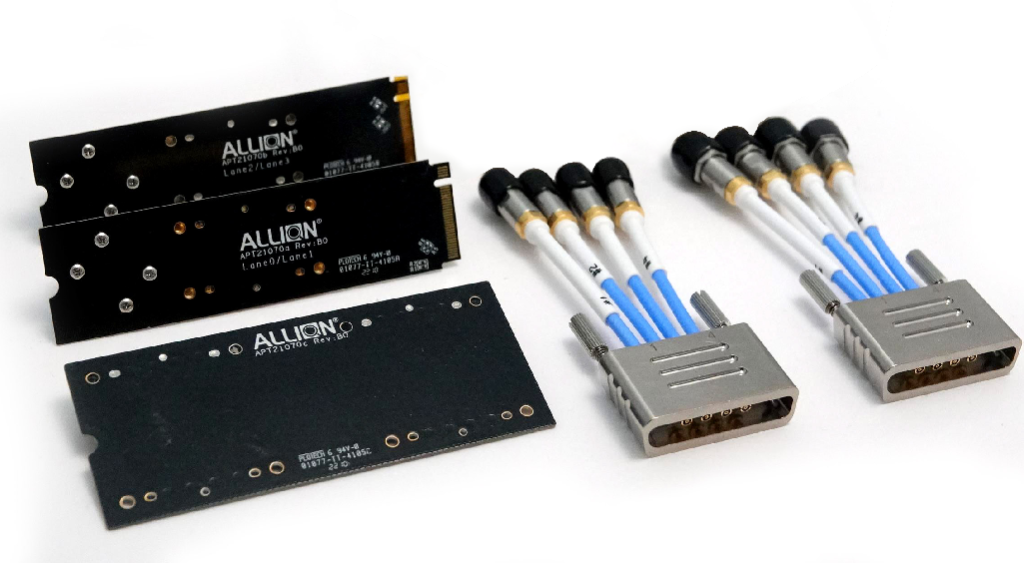

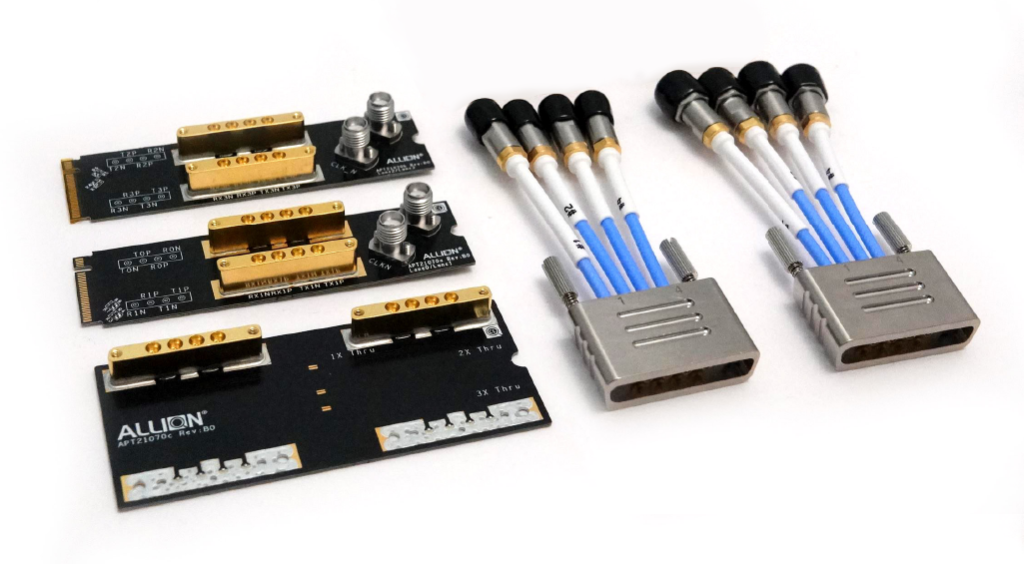

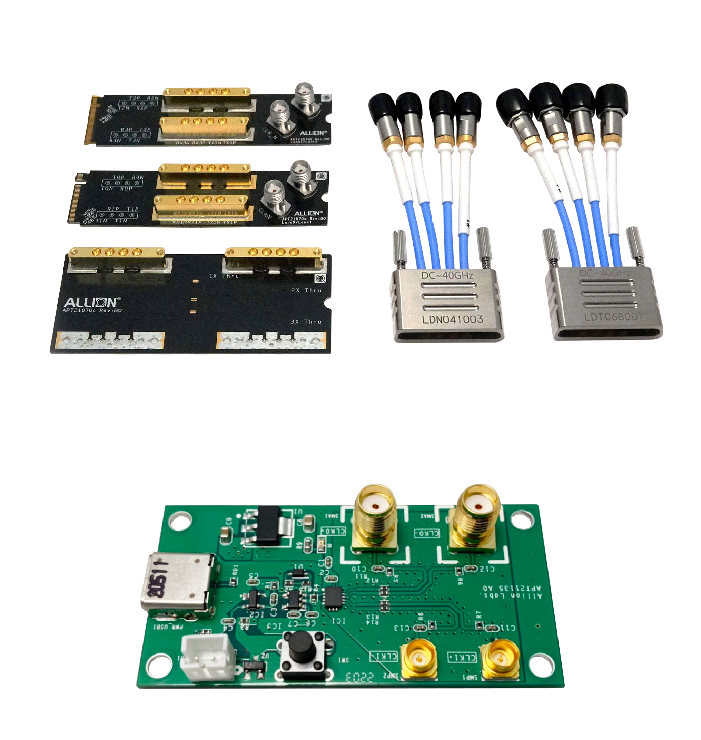

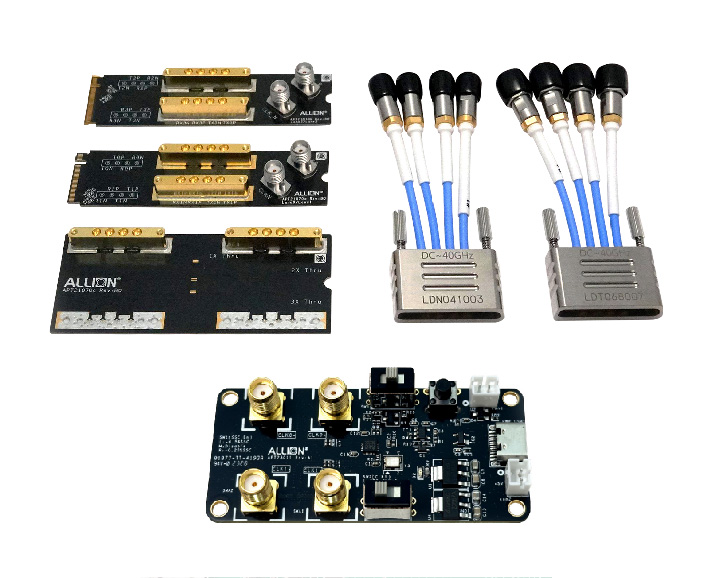

  • The M.2 PCIe CLB5.0 Test Fixture Set contains the below items:
    1. M.2 CLB5.0-L01 (Model Name: APT21070a)
    2. M.2 CLB5.0-L23 (Model Name: APT21070b)
    3. M.2 CLB5.0-CAL (Model Name: APT21070c)
    4. Allion CMTS Board (Model Name: APT21135)

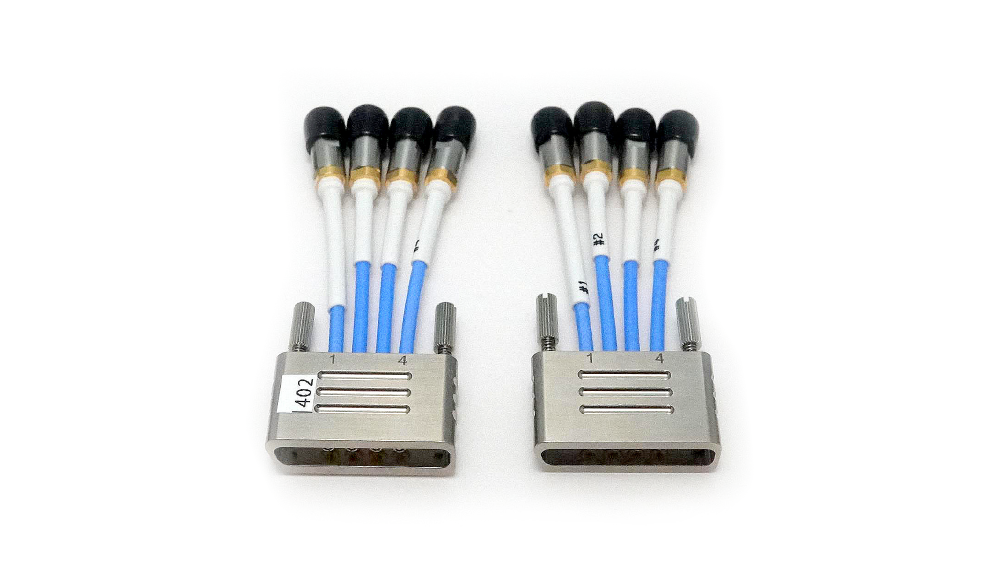

    5. Cable Module*2
  • The lead time will be 2-4 weeks from order to shipment.

Application

  1. PCI Express Host Compliance Test for Tx/Rx (Gen1-Gen5)
  2. PCI Express Electrical Signal Quality Validation for Tx/Rx (Gen1-Gen5)
  3. Applicable for Server, IPC, Notebook, Desktop or system product which has designed M.2 interface

Key Features

  1. PCIe M.2 Compliance Electical Test for Tx/Rx
  2. Durable SMPM Connectors and flexible Cable Assembly
  3. SMPM Connectors and Cable Assembly support up to 40GHz bandwidth
  4. 2X Thru Calibration board is provided

Specification

APT21070a
  1. PCIe M.2 M-Key Golden Finger
  2. Two SMPM Connectors for Lane0/Lane1
  3. Two SMA Connectors for Reference Clock
  4. Dimension : 22mm x 80mm
APT21070b
  1. PCIe M.2 M-Key Golden Finger
  2. Two SMPM Connectors for Lane2/Lane3
  3. Two SMA Connectors for Reference Clock
  4. Dimension : 22mm x 80mm
APT21070c
  1. Two SMPM Connectors for 2x Thru Calibration
  2. Dimension : 34.33mm x 80mm
