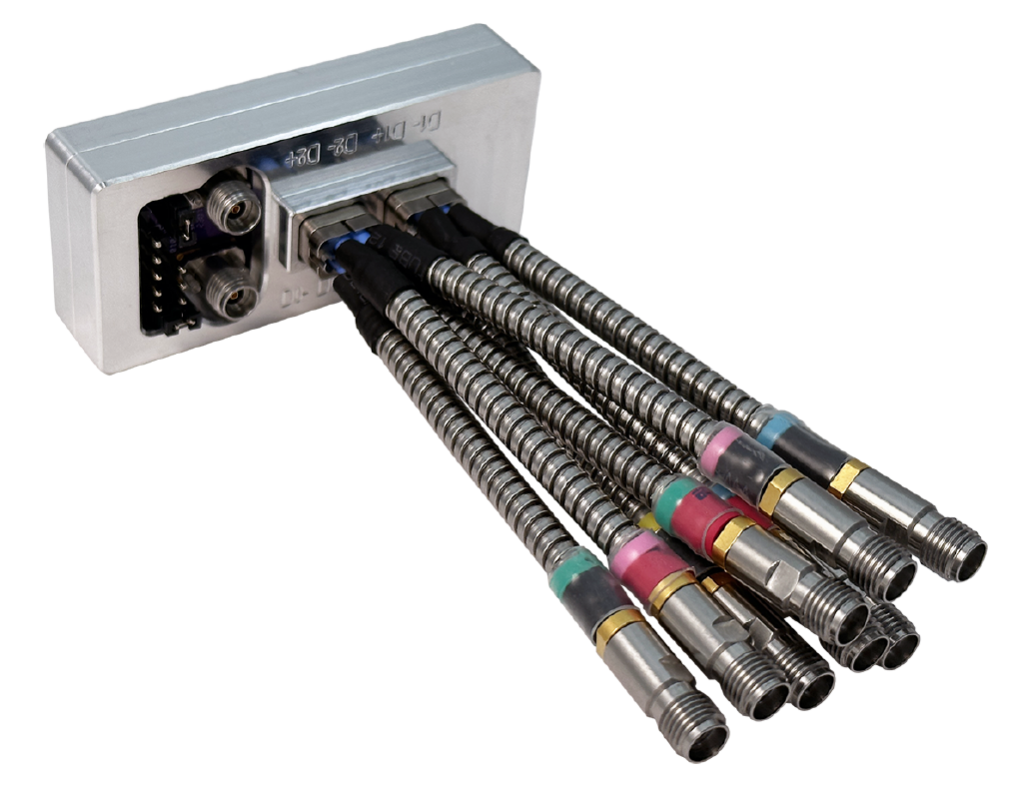

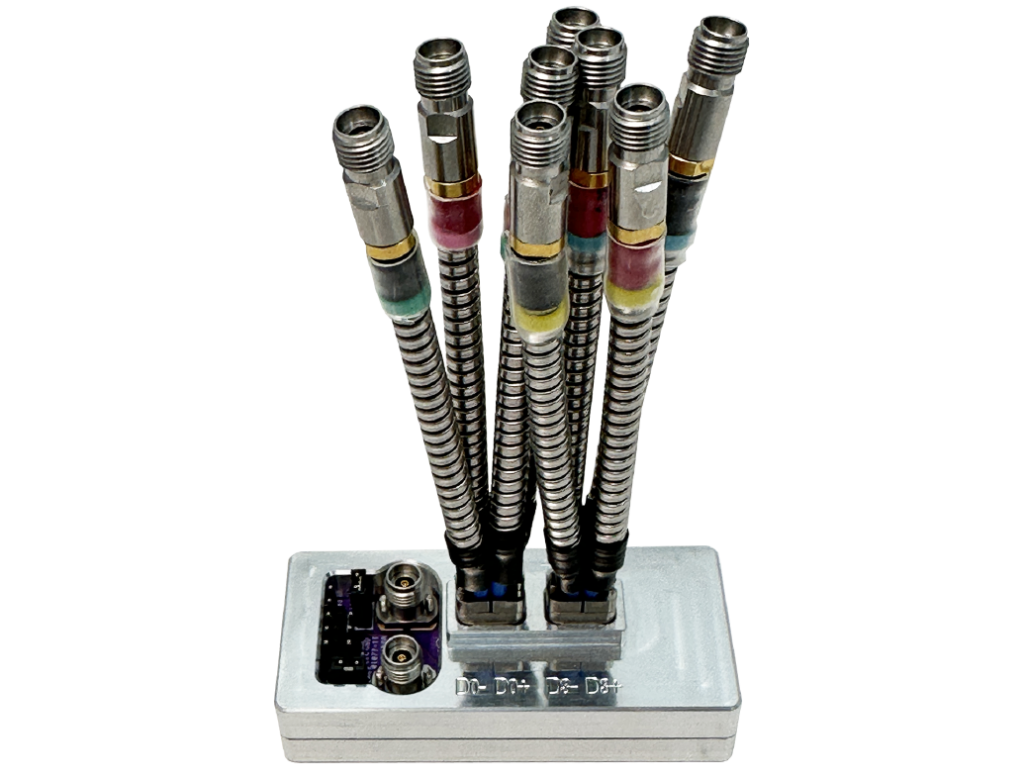

HDMI Type A High Frequency(Receptacle Type)

Product ID: AHT22017_R

Product Summary

AHT22017_R fixtures support tests with the HDMI Compliance Test Specification 1.4b and 2.1 CTS

Application

  1. HDMI 2.1 Compliance Electrical Testing
  2. HDMI 1.4b Compliance Electrical Testing

Key Feature

  1. Short and strong cable reduced signal loss
  2. Reduced Human factors
  3. Up to 48Gb/s data rate supported
  4. Wire Modularization, easy Setup
  5. Supports FRL testing

Specification

AHT22017_R
  1. HDMI Type A Receptacle Connector
  2. Eight SMA Connector for D0~D3
  3. Two SMA Connector for HEAC
  4. Dimension 20mm x 61.12mm x 102mm
