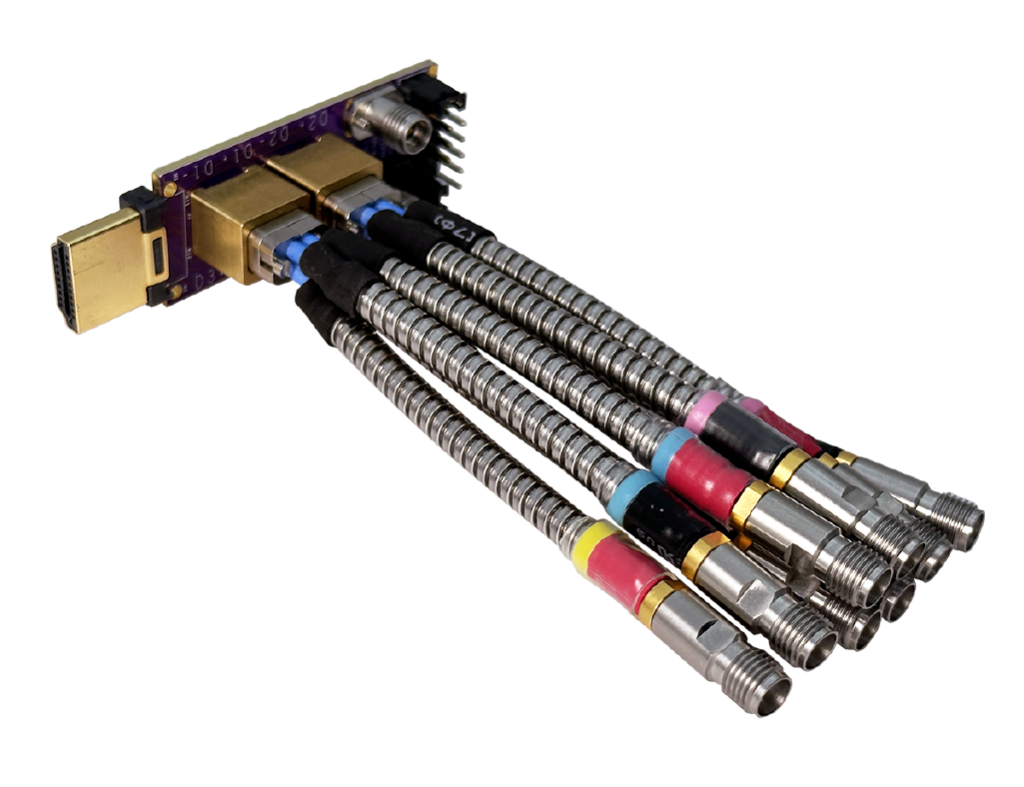

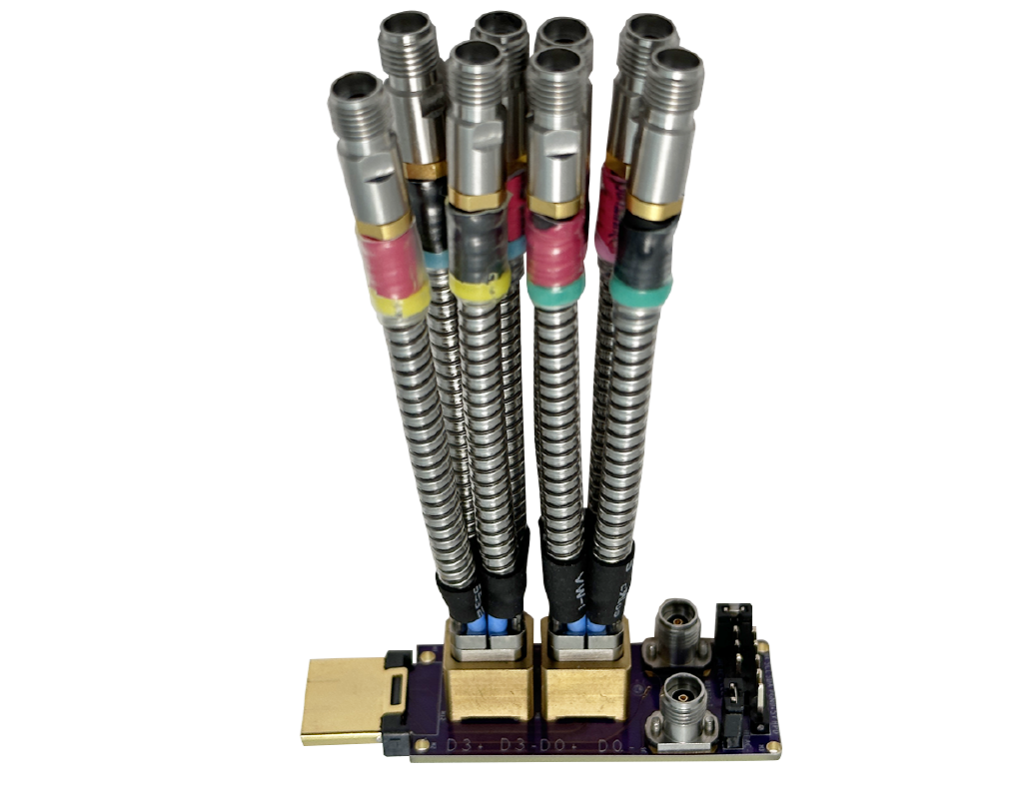

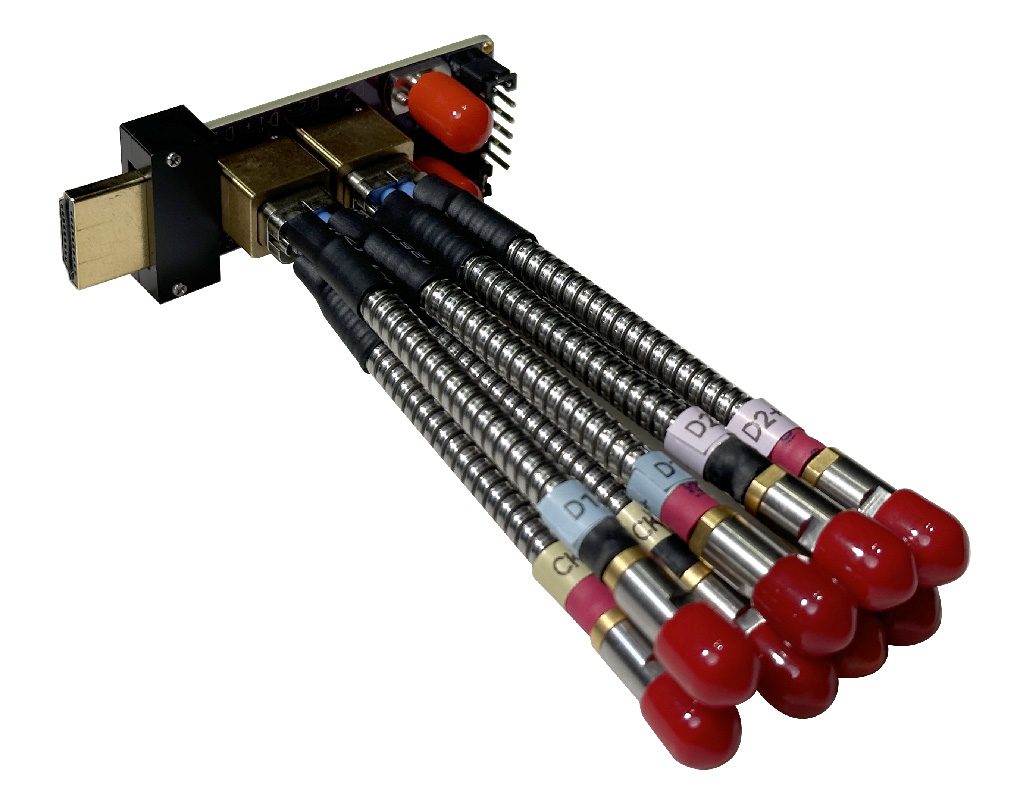

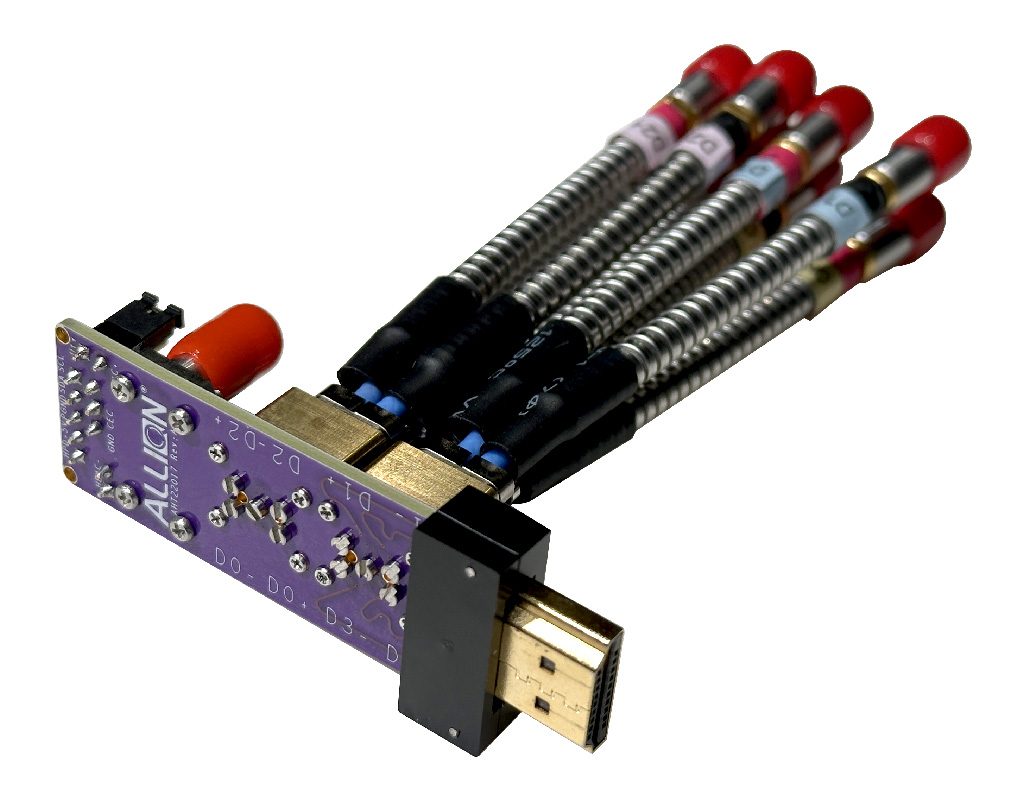

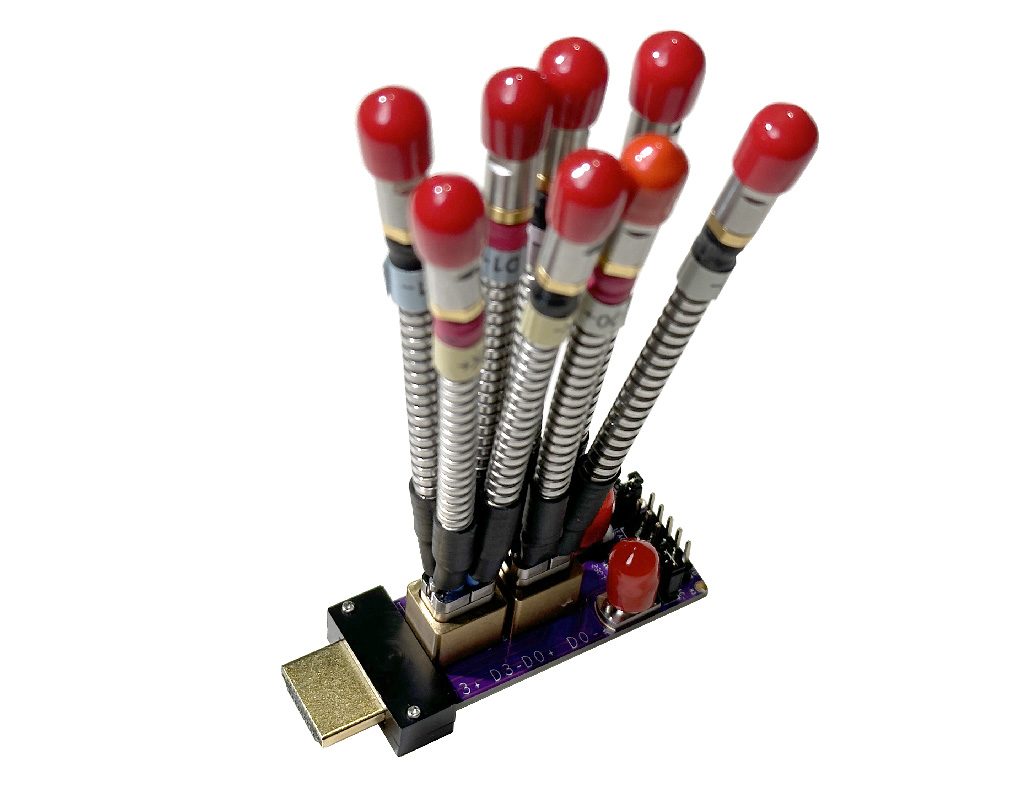

HDMI Type A High Frequency(Plug Type)

Product ID: AHT22017_P

Product Summary

AHT22017_P fixtures support tests with the HDMI Compliance Test Specification 1.4b and 2.1 CTS

Application

  1. HDMI 2.1 Compliance Electrical Testing
  2. HDMI 1.4b Compliance Electrical Testing

Key Feature

  1. Short and strong cable reduced signal loss
  2. Reduced Human factors
  3. Up to 48Gb/s data rate supported
  4. Wire Modularization, easy Setup
  5. Supports FRL testing



Specification

AHT22017_P
  1. HDMI Type A Plug Connector
  2. Eight SMA Connector for D0~D3
  3. Two SMA Connector for HEAC
  4. Dimension 20mm x 64.70mm x 102mm
