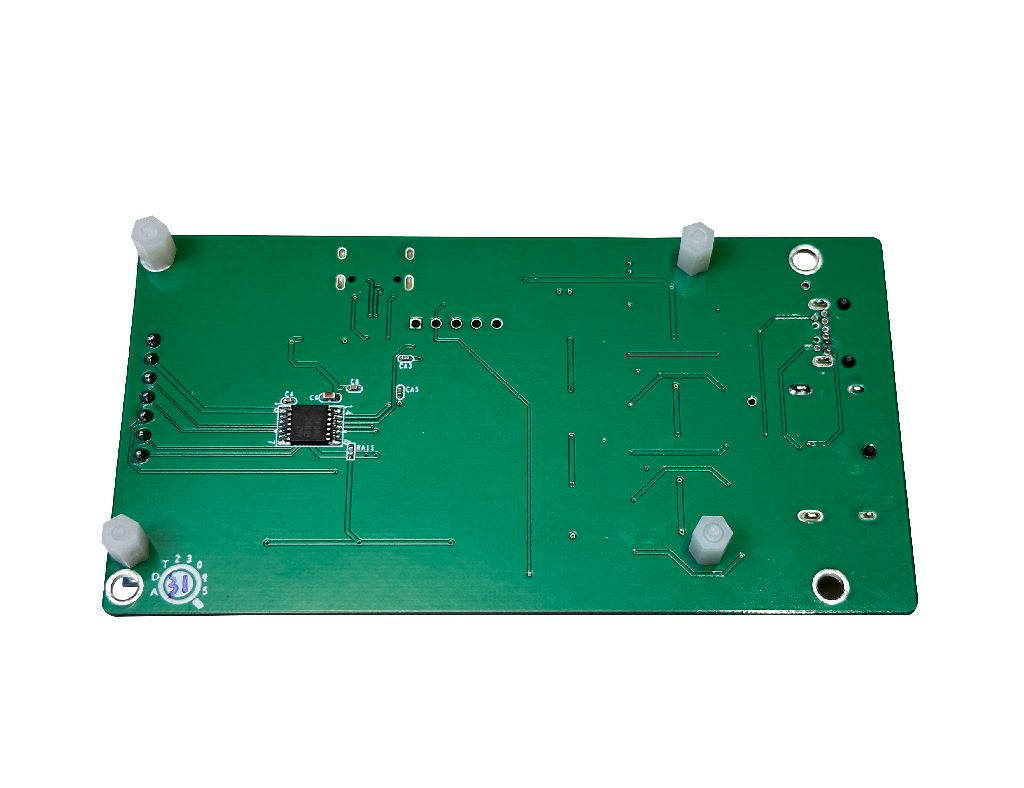

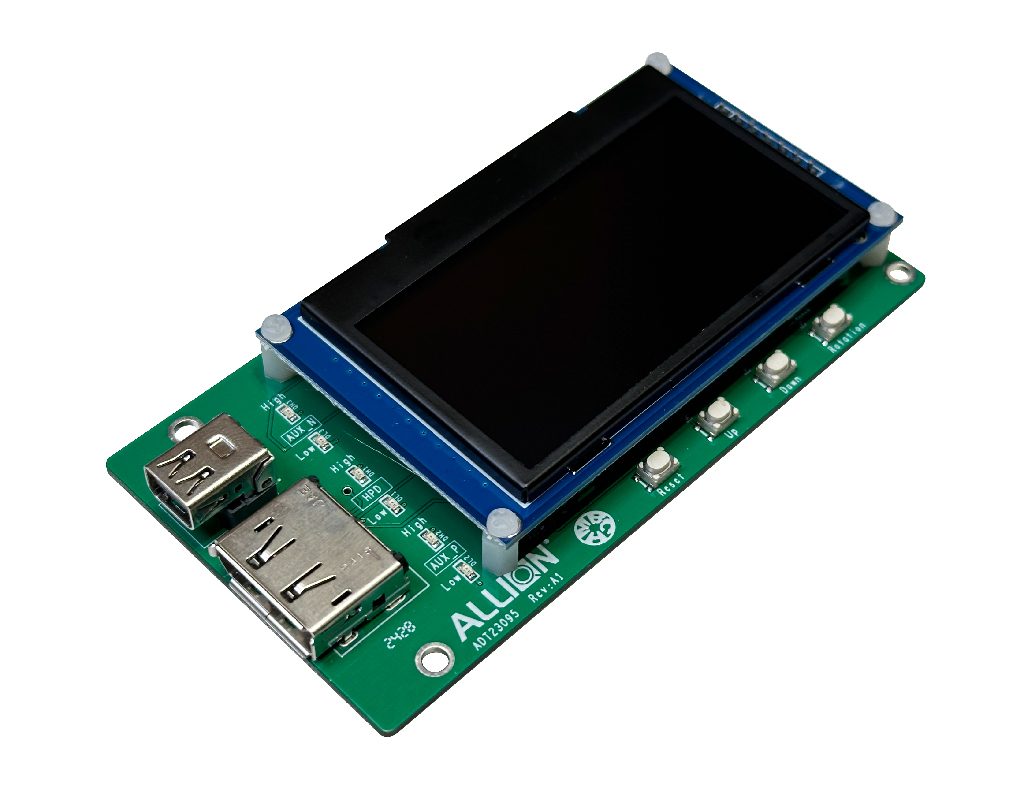

C to DP/mDP Cable Test Fixture

Product ID: ADT23095

Product Summary

The C to DP/mDP Cable Test Fixture ADT23095 was designed by Allion for C to DP/mDP Cable Compliance test.

Application

  • This test fixture can be used for VESA USB-C to DP cable Compliance test
  • The VESA Compliance Test ID are listed below:
  1. 10.6.1 DP Connector Attached to DP Sink
  2. 10.6.2 DP Connector Attached to DP Source

Key Feature

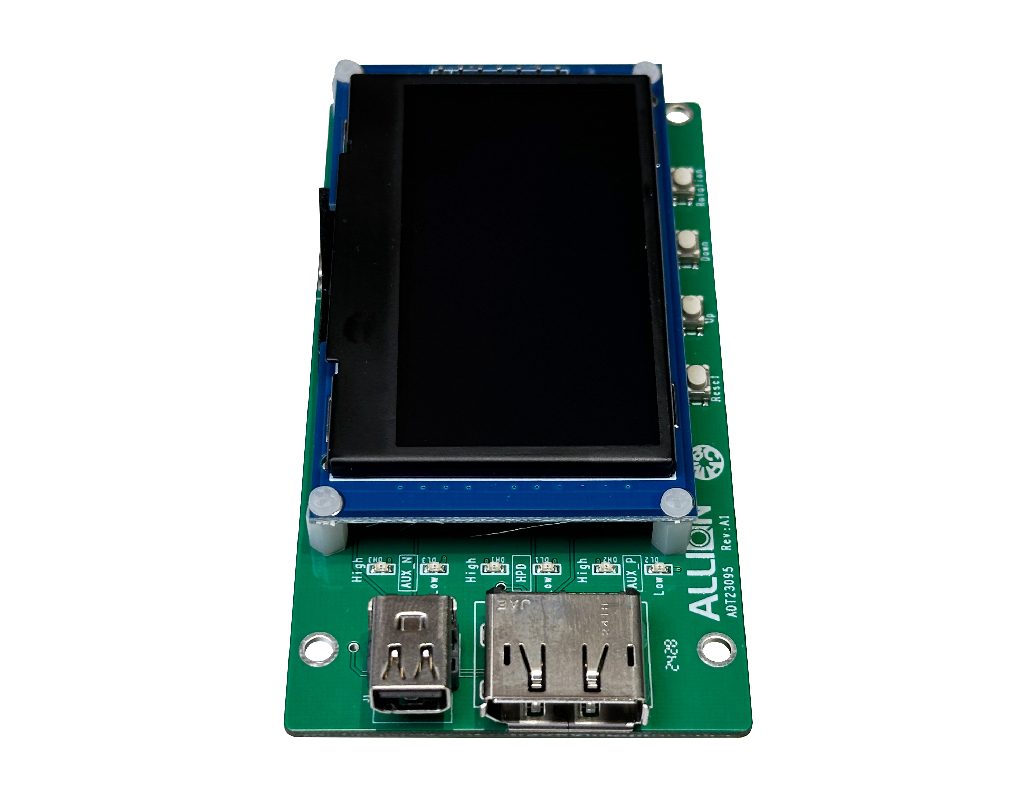

  • The test fixture is equipped with a DP connector and a mDP connector
  • The test fixture can set DC voltage termination of AUX channel and HPD to either 3V or ground

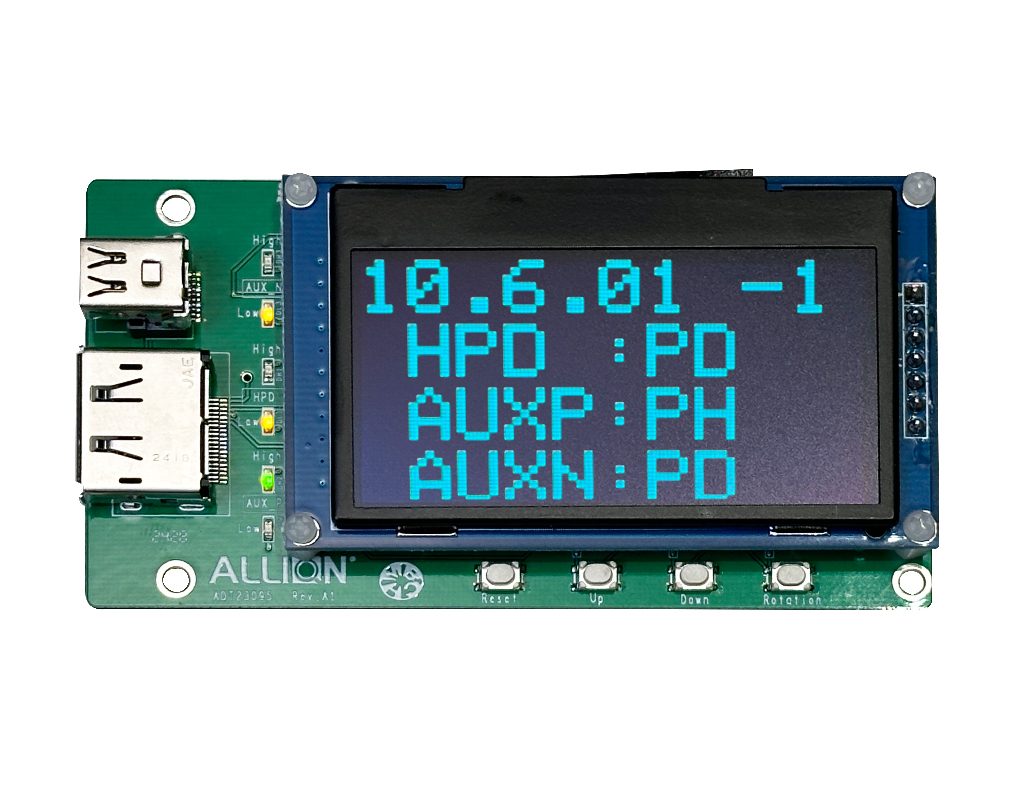

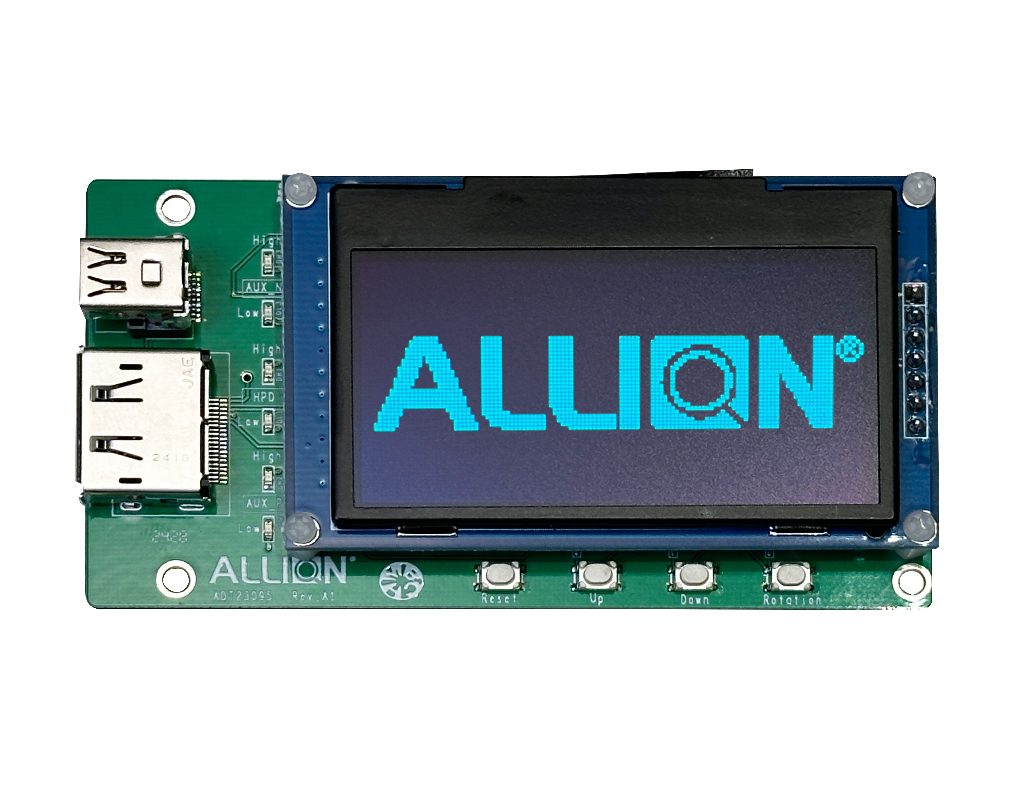

  • The test fixture has OLED and LED to display the test status
  • The test fixture has multiple test methodology for choice
  1. physical button

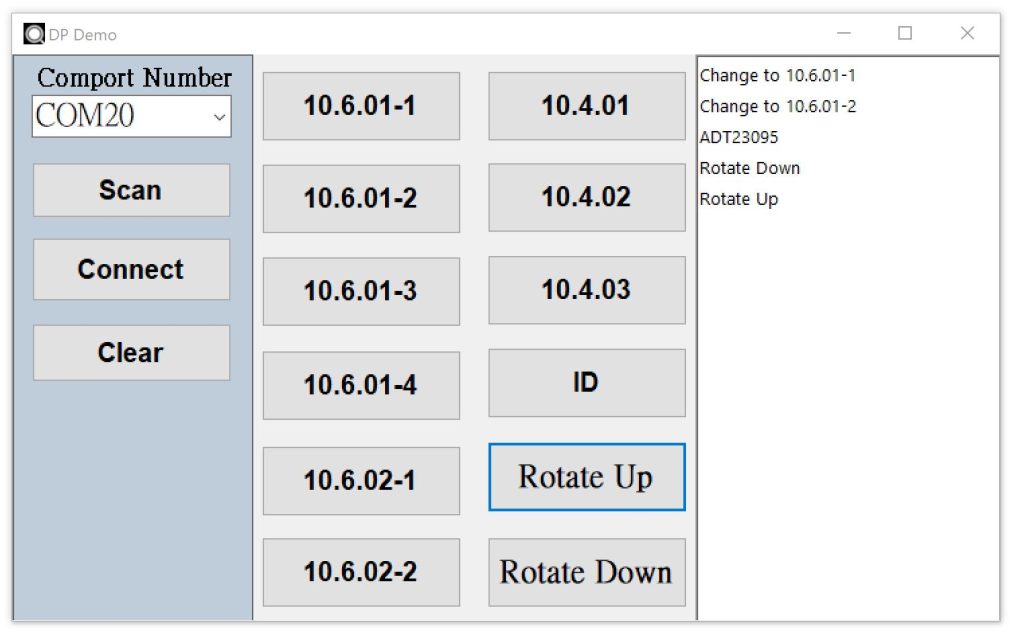

  2. software app control

Specification

ADT23095

  • USB C connector for power supply
  • DP connector for AUX/HPD test
  • mDP connector for AUX/HPD test
  • Dimension: 35.26mm x 19.68mm
