Slimline SAS HD SAS X4 SI Test Fixture Board, 85ohm, SMA 2.92mm conn

Product ID: 8654-4i-HMSITFB

Product Summary

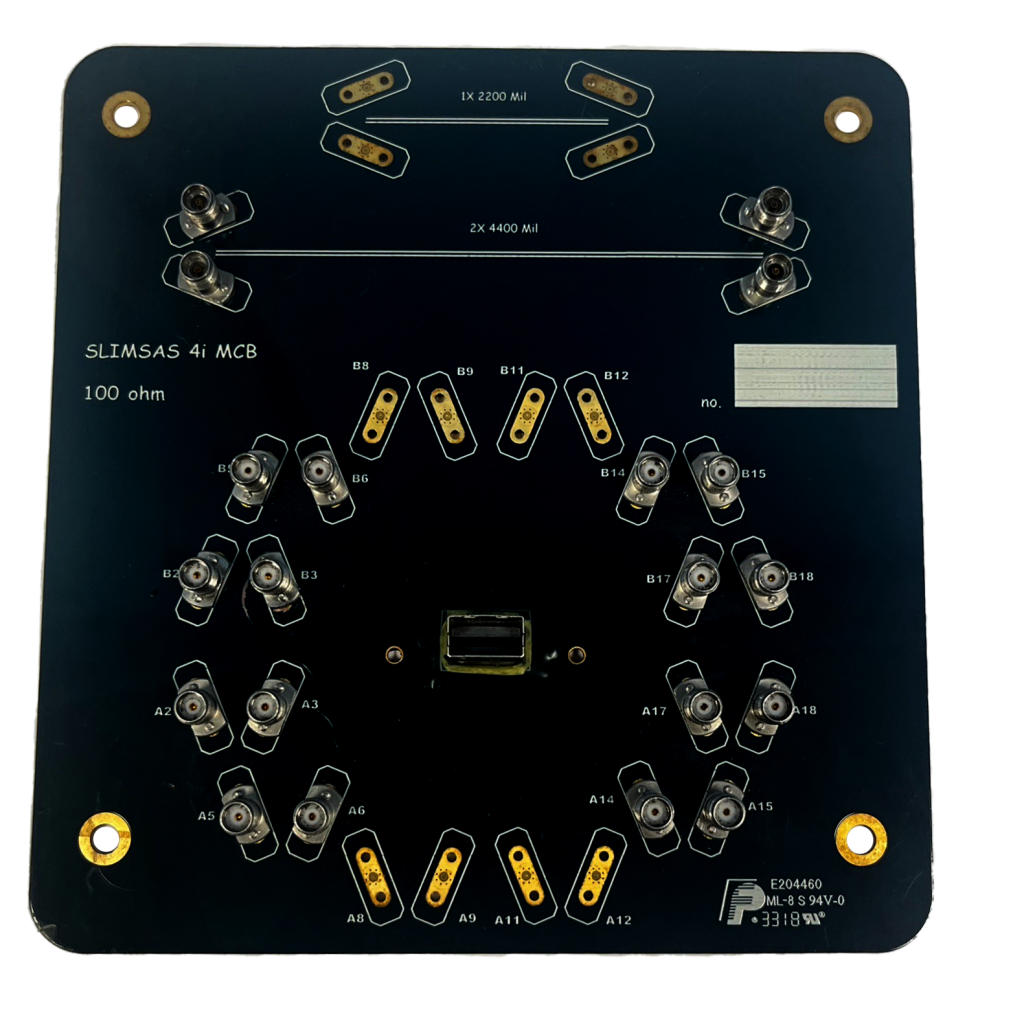

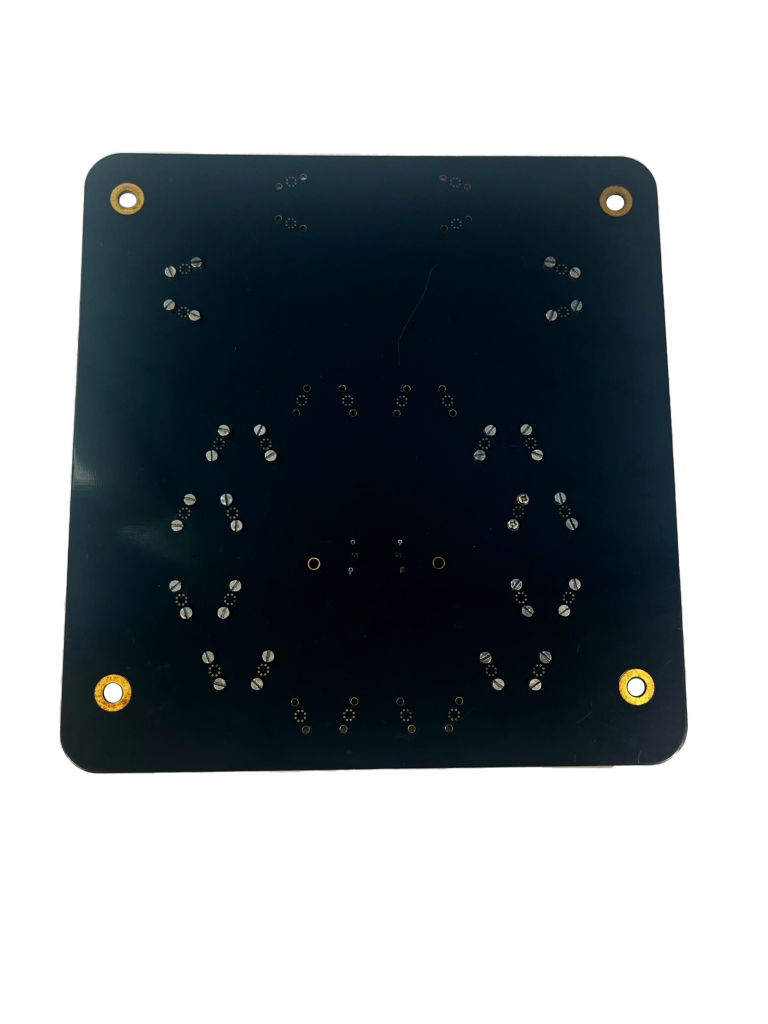

Slimline SAS HD 4i MCB Test Fixture
The lead time will be 4-6 weeks from order to shipment.

Application

  1. SAS4
  2. SAS3

Key Feature

  1. Complies with SFF-8654
  2. Backward compatible with 12 Gb/s、6 Gb/s SAS, 16 Gb/s PCIe
  3. SAS connector is on opposite to RF connector
  4. RF Connector: 2.92mm K-Type
  5. De-embedding Line designed on board

Specification

  1. Complies with SFF-8654
  2. Connector: Vertical
  3. Speed up to 22.5Gbps
  4. RF Connector 2.92mm K-Type, 50 ohm
  5. Connector Input/Output Layout TX0 ~ TX3, RX0 ~ RX4
  6. De-embedding Line 2X Thru x2
