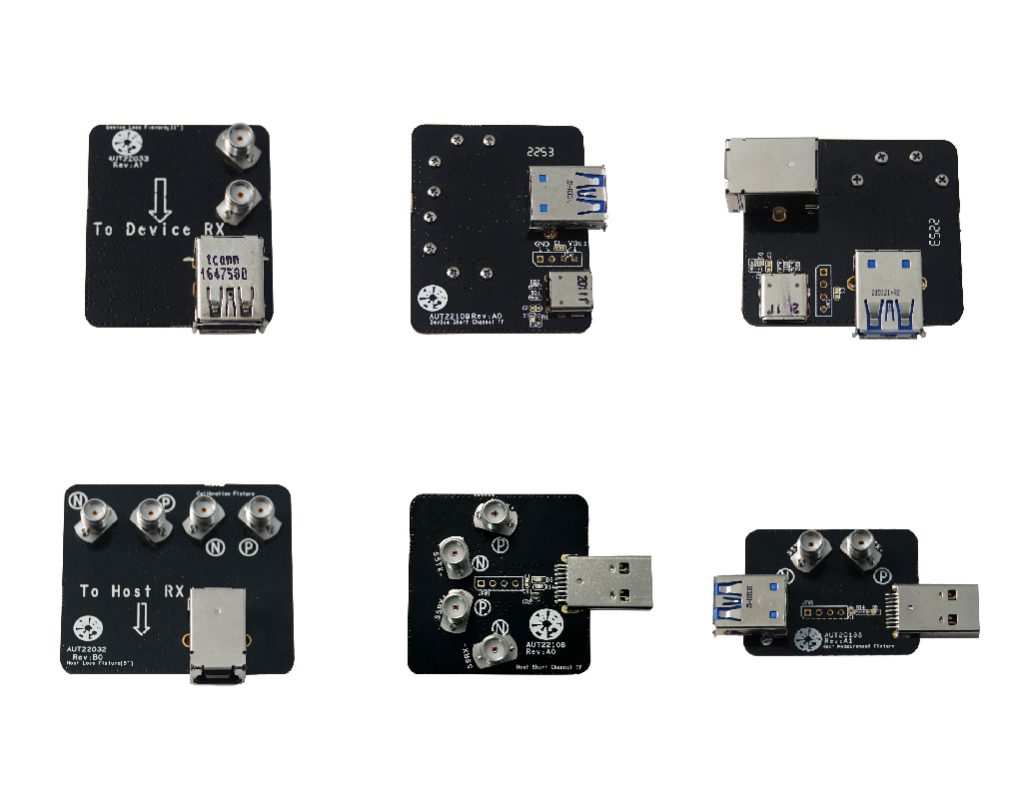

USB 3.2 Legacy TF Sets

The USB-IF Electrical Compliance Test Specification Enhanced SuperSpeed Universal Serial Bus guides how to measure the USB 5 Gbps electrical characteristics. Within these test fixtures the developers can easily validate and evaluate their company’s USB 5 Gbps capable products. This USB 5 Gbps fixture kits are for non-USB-C® products to measure and characterize the USB 5Gbps Tx/ Rx physical electrical characteristics.



This test fixture set includes following cables:

  1. USB 5Gbps Std. A to Std. B 3m cable x1
  2. USB 5Gbps Std. A to Std. B 1m cable x1
  3. USB 5Gbps Std. A to Std. B 15~20cm cable x2
  4. USB 5Gbps Std. A to Micro B 15~20cm cable x1
Inquiry

Contents

Device Loss

AUT22033

Key Feature

  1. Use for USB 5Gbps legacy UFP Rx calibration and Rx long channel test
  2. SMA connectors easy to be replaced if broken

Specification

  1. Two USB 5Gbps stacked Standard A receptacles
  2. Two SMA connectors for the upper Standard A receptacle Tx

Device Short Channel

AUT22109

Key Feature

  1. Use for USB 5Gbps legacy UFP Tx test and Rx short channel test
  2. SMA connectors easy to be replaced if broken
  3. Supply power from USB-C® to DUT (Device Under Test)

Specification

  1. One USB 5Gbps Standard A receptacle
  2. Two SMA connectors for Standard A receptacle Tx
  3. Two SMA connectors for Standard A receptacle Rx
  4. One USB-C® receptacle for power charging

Device Measurement

AUT21003

Key Feature

  1. Use for USB 5Gbps legacy UFP Tx test, Rx calibration and Rx long channel test
  2. SMA connectors easy to be replaced if groken
  3. Supply power from USB-C® to DUT (Device Under Test)

Specification

  1. One USB 5Gbps Standard A receptacle
  2. One USB 5Gbps Standard B receptacle
  3. Two SMA connectors for Standard A receptacle Tx
  4. One USB-C® receptacle for power charging

Host Loss/ Device Calibration

AUT22032

Key Feature

  1. Host Loss section: Use for USB 5Gbps legacy DFP Rx calibration and Rx long channel test
  2. Device Calibration section: Use for USB 5Gbps legacy UFP Rx calibration
  3. SMA connectors easy to be replaced if broken

Specification

  1. One USB 5Gbps Standard B receptacle
  2. Two SMA connectors for Host Loss section
  3. Two SMA connectors for Device Calibration section

Host Short Channel

AUT22108

Key Feature

  1. Use for USB 5Gbps legacy DFP Tx test and Rx short channel test
  2. SMA connectors easy to be replaced if broken

Specification

  1. One USB 5Gbps Standard A plug
  2. Two SMA connectors for Standard A plug Tx
  3. Two SMA connectors for Standard A plug Rx

USB A TX Test Fixture

AUT20135

Application

USB 3.1 Legacy Device Tx Signals Integrity Test

*AUT20135 is a substitute for USB 3.1 Host Fixture 1A in USB31AET Kits. In order to perform the integrity test, you must have the rest of UAB31AET Kits test fixtures which can be purchased from the USB-IF.

Key Feature

  1. Signals Improvement
  2. SMD SMA Connector implement
  3. Vbus LED Indicated

Specification

  1. One USB 3.0 Type-A Plug Connector
  2. One USB 3.0 Type-A Receptacle Connector
  3. Two SMA Connectors
  4. 1×4 Pin Header for Vbus Measurement if needed.
  5. LED Indicator to make sure Power
  6. Dimension : 40.20 mm x 30.48 mm
